3488VTA 06 – TOP ASSEMBLY – Aparts

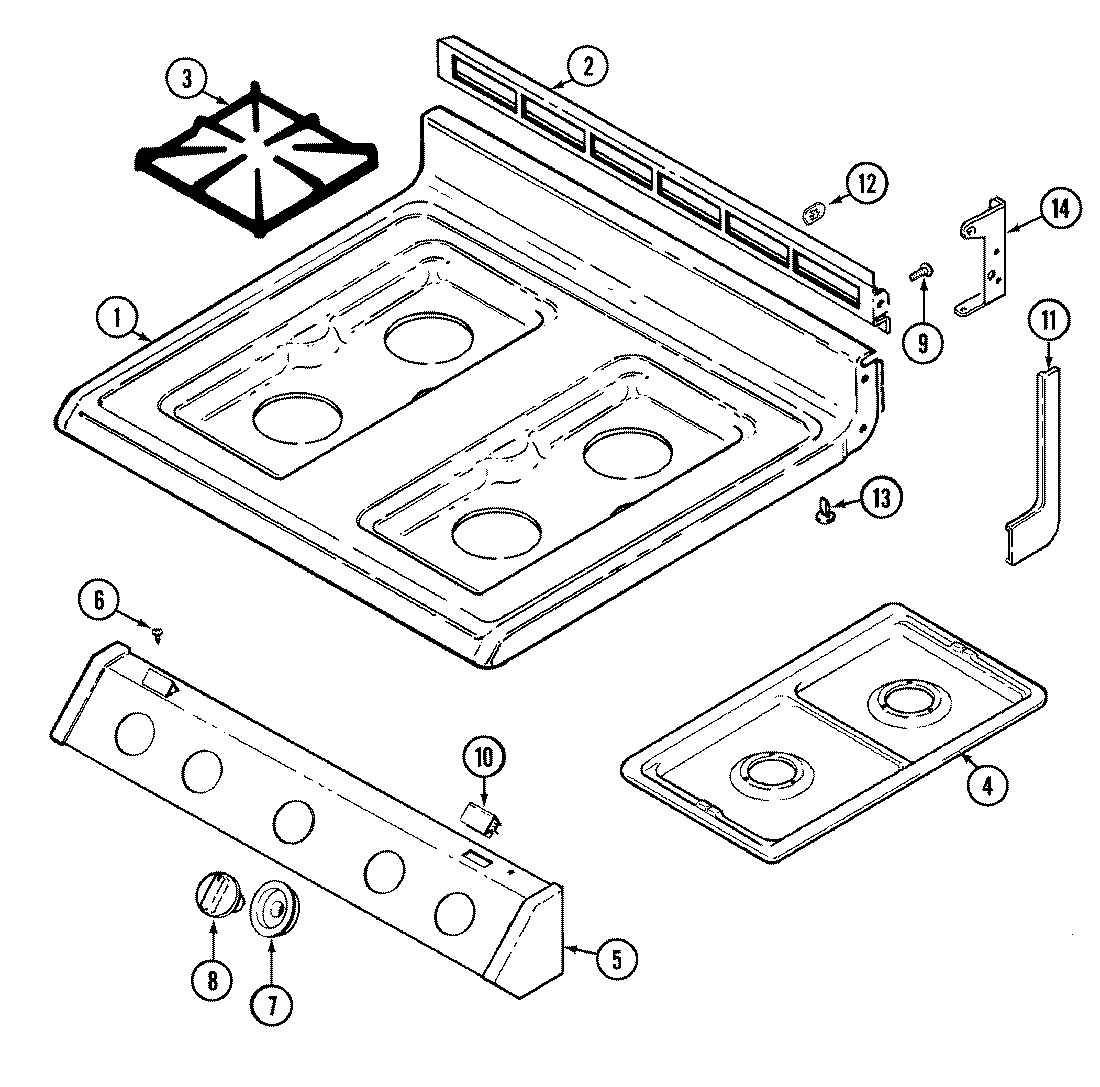

3488VTA 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W082-84
2	MAY 3608F042-09
3	MAY 2003W026-00
4	MAY 5401A452-60
5	MAY 7712P130-60
6	MAY 7101P329-60
7	MAY 7740P033-60
8	WP74003781 Whirlpool Valve Knob
9	SCREW (10ABX1/4P TR ZN)
10	MAY 7112P087-60
11	MAY 8114P348-60
11	MAY 7746P030-60
11	MAY 7746P031-60
12	WP3195558 Whirlpool Nut
13	MAY 8016P015-60
14	MAY 3807F454-51
14	MAY 3807F453-51
14	SCREW (8BX3/8-NI)
15	MAY 5125A312-60
15	MAY 5120D019-60
