3488VVA 06 – TOP ASSEMBLY – Aparts

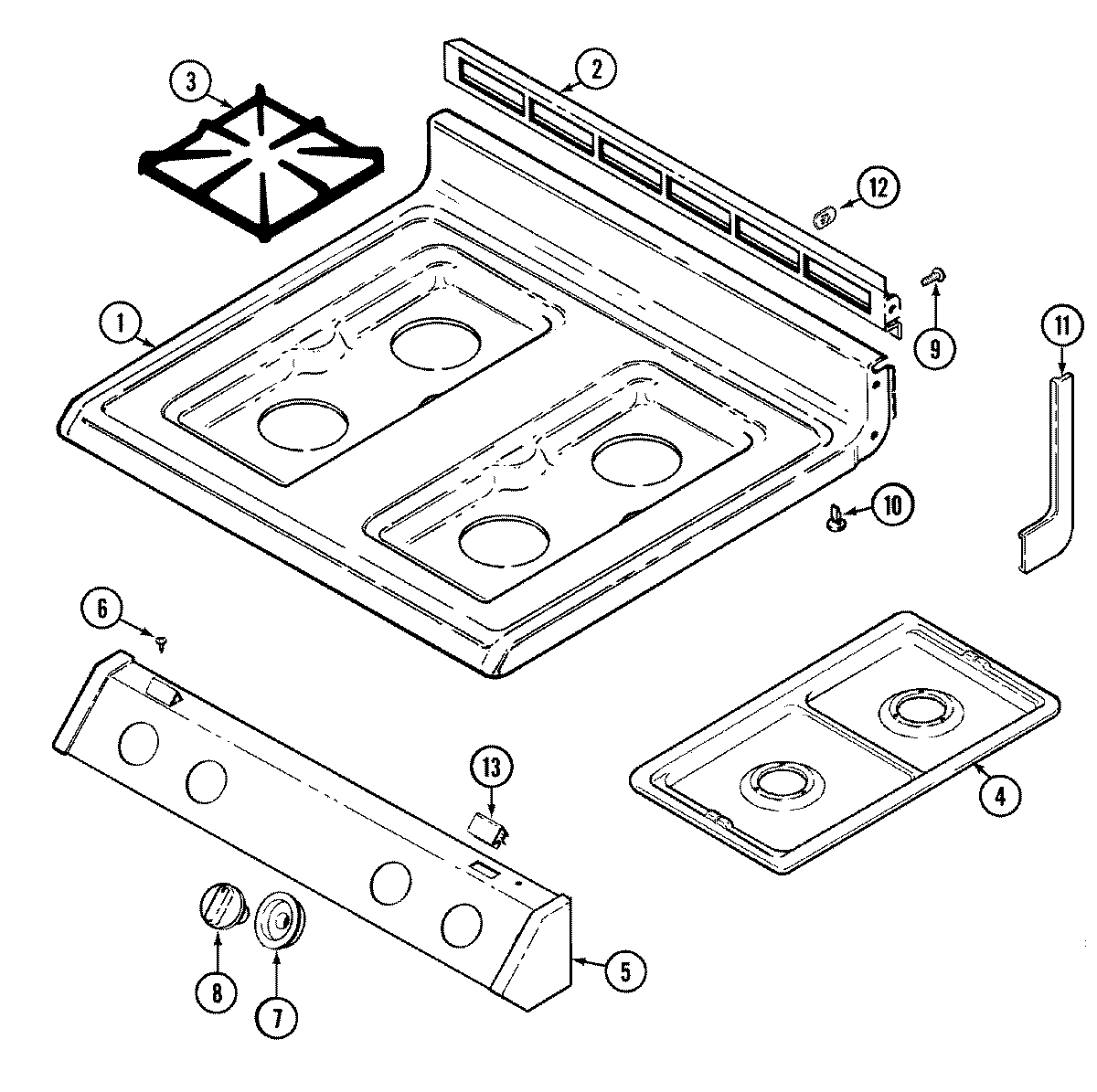

3488VVA 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W085-84
2	MAY 3608F042-09
3	MAY 74001653
3	WP7518P464-60 Whirlpool Burner Grate
3	MAY 2003W027-00
4	MAY 5401A452-60
5	MAY 7712P130-60
6	MAY 7101P074-60
7	WP7740P058-60 Whirlpool Knob Bezel
8	WP74003781 Whirlpool Valve Knob
9	SCREW (10ABX1/4P TR ZN)
10	MAY 8016P015-60
11	MAY 7746P031-60
11	MAY 8270P095-60
11	MAY 7746P030-60
12	WP3195558 Whirlpool Nut
13	MAY 7112P087-60
