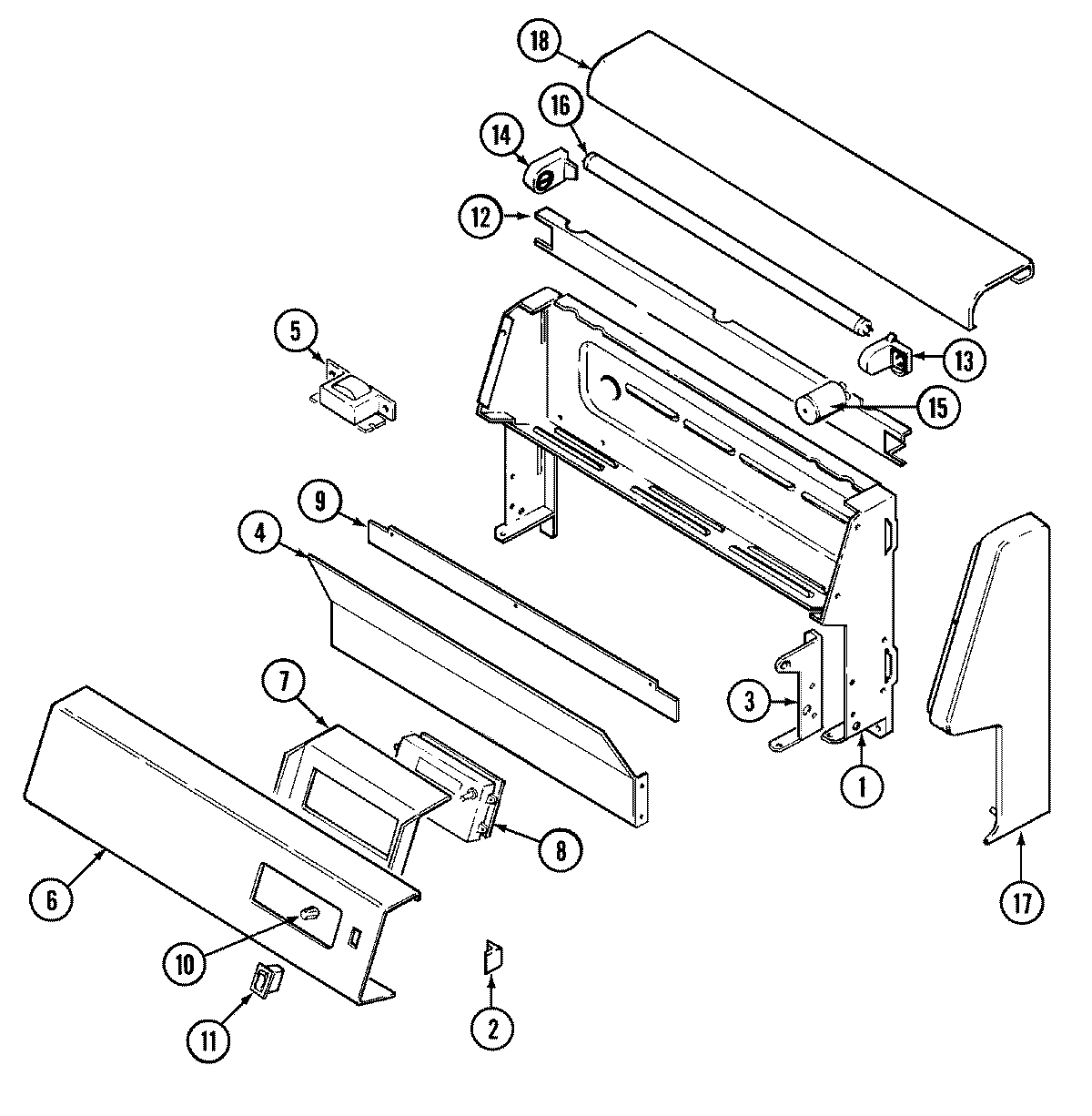

3488VVD 02 – CONTROL PANEL (3488VVD)

Products

Position	Product
1	MAY 4001F097-51
1	MAY 74002162
2	MAY 8010P083-60
2	MAY 7101P148-60
3	MAY 3807F453-51
3	MAY 3807F454-51
4	MAY 3604F188-09
5	MAY 7412P007-60
6	MAY 74001713
6	WPY706189 Whirlpool Stove Screw
7	MAY 3801F337-45
8	MAY 7601P303-60
8	MAY 74002277
9	MAY 8036P003-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 7711P494-60
11	MAY 7403P358-60
12	MAY 3807F406-71
13	MAY 7408P029-60
14	MAY 7408P030-60
15	MAY 7415P001-60
16	MAY 7407P004-60
17	MAY 74001715
17	MAY 74002798
17	MAY 74002799
17	MAY 7103P129-60
17	MAY 74001714
17	SCREW (8BX3/8-NI)
18	MAY 7724P071-60
19	MAY 5180D151-60
19	MAY 5170P204-60
19	MAY 5125A353-60
20	MAY 8113P066-60
20	MAY 16000329
20	MAY 16007437
