3488VVD 03 – DOOR/DRAWER (3488VVD)

3488VVD 03 – DOOR/DRAWER (3488VVD)

Written by

in

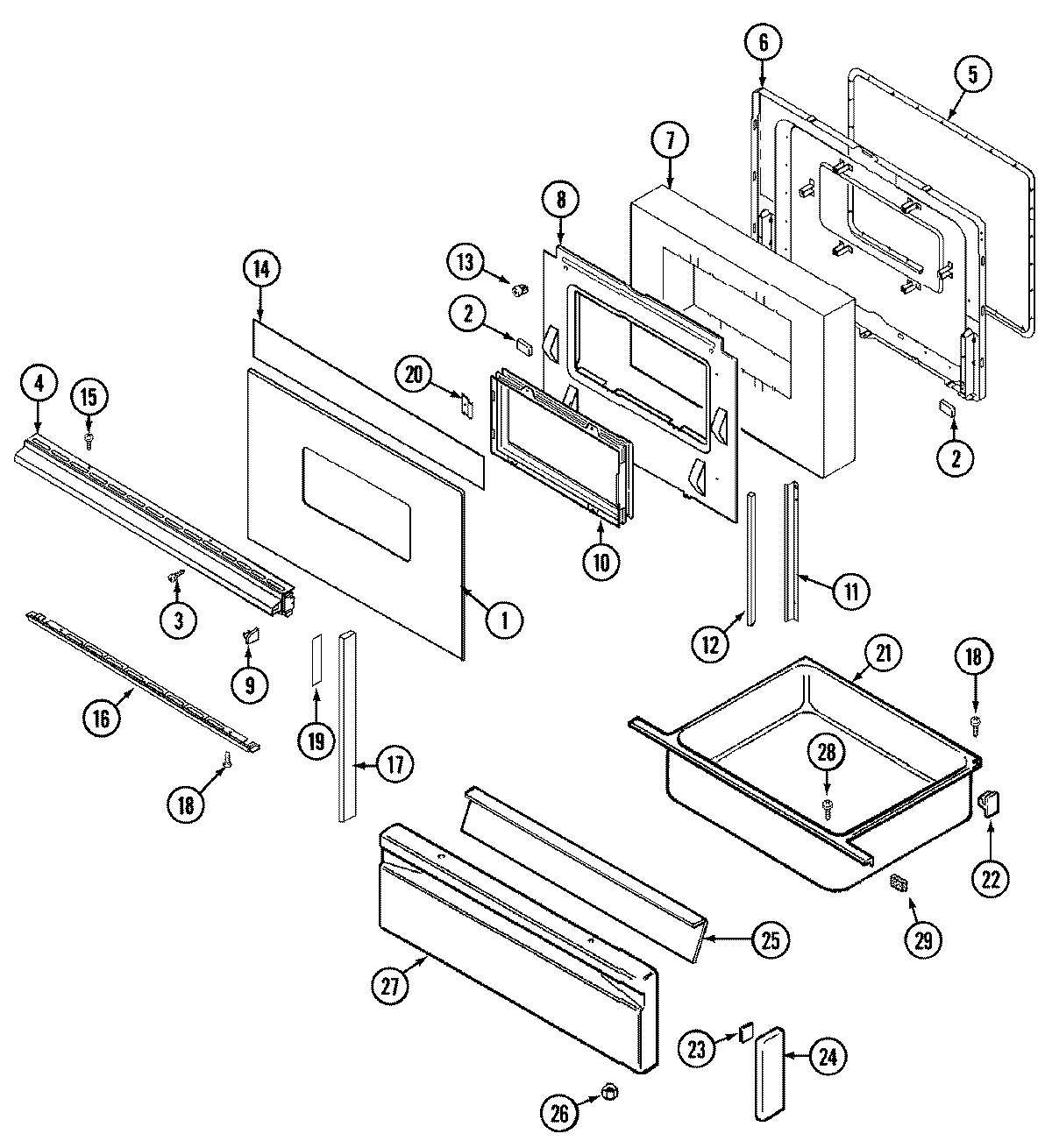

3488VVD 03 – DOOR/DRAWER (3488VVD)

Products

Position	Product
1	MAY 7902P358-60
2	MAY 8010P085-60
2	MAY 7208P011-60
4	MAY 7701P115-60
5	GASKT-DOOR OVEN
6	MAY 2402W202-19
7	MAY 7002P155-60
8	MAY 3601F236-47
9	MAY 7744P075-60
9	MAY 7744P076-60
10	MAY 7907P021-60
11	MAY 3818F052-80
12	MAY 7208P002-60
14	TAPE, FOIL (3“ WIDE)
15	MAY 7101P307-60
16	MAY 7744P104-60
17	MAY 7744P085-60
19	MAY 8270P048-60
20	MAY 3805F002-34
21	MAY 3405F018-80
22	SCREW
23	WP8004P026-60 Whirlpool Support
24	MAY 8270P094-60
25	MAY 7744P112-60
26	LINING, DRAWER PANEL
27	WPW10131078 Whirlpool Nut Assembly
28	MAY 2416F038-64
29	WP7101P072-60 Whirlpool Screw
