3488VVD 04 – DOOR/DRAWER (SER. PRE. 15 3488VVD)

3488VVD 04 – DOOR/DRAWER (SER. PRE. 15 3488VVD)

Written by

in

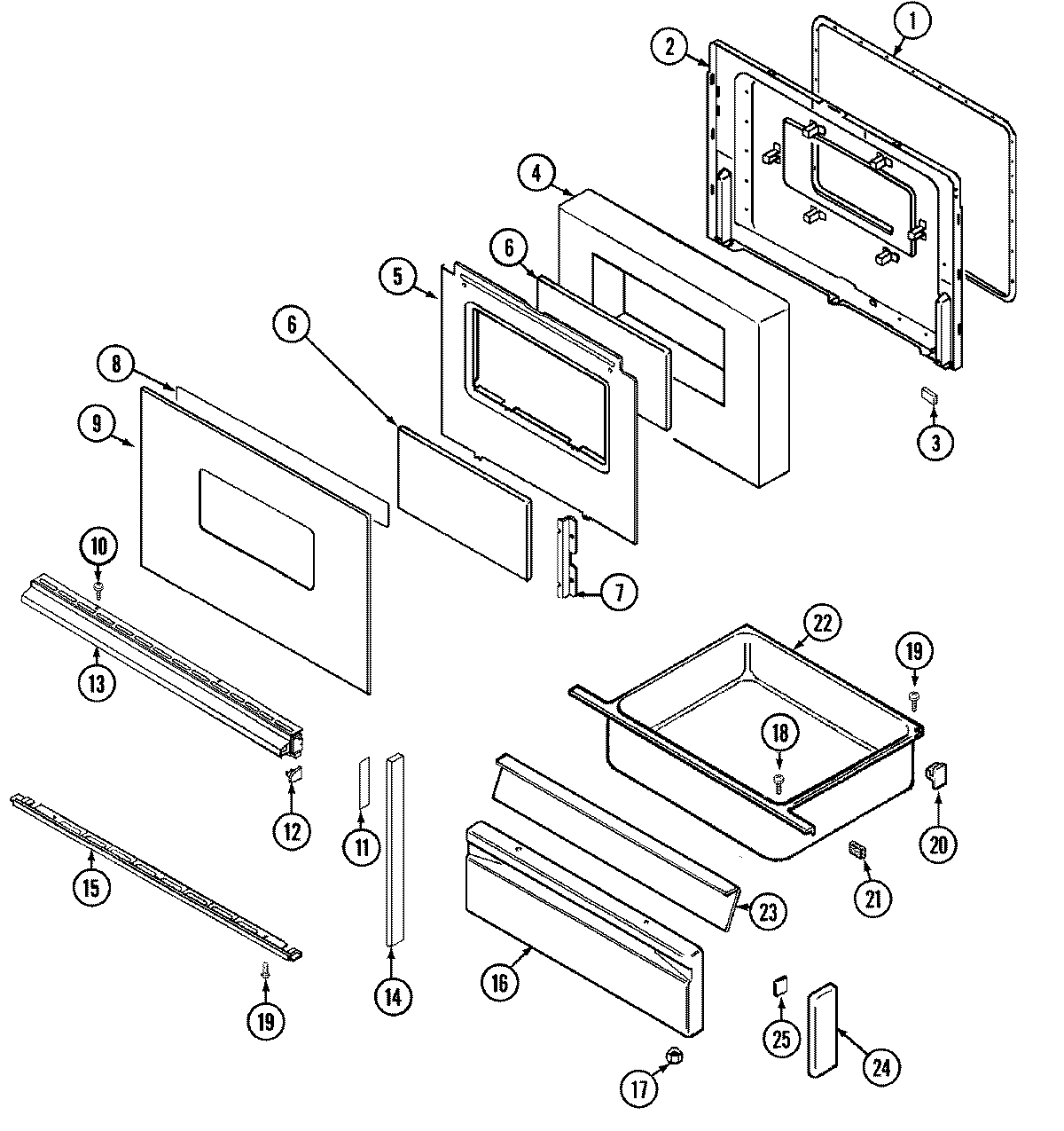

3488VVD 04 – DOOR/DRAWER (SER. PRE. 15 3488VVD)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P358-60
10WP74009541 Whirlpool Screw Assembly
11MAY 8270P093-60
12MAY 7744P076-60
12MAY 74002713
12MAY 74002714
12MAY 7744P075-60
13MAY 7701P115-60
14MAY 74002343
14MAY 7744P085-60
15MAY 7744P104-60
16MAY 2416F038-64
17WPW10131078 Whirlpool Nut Assembly
18WP7101P072-60 Whirlpool Screw
20WP8004P026-60 Whirlpool Support
21MAY 7208P011-60
22MAY 3405F018-80
23LINING, DRAWER PANEL
23SCREW
24MAY 7744P112-60
25TAPE
