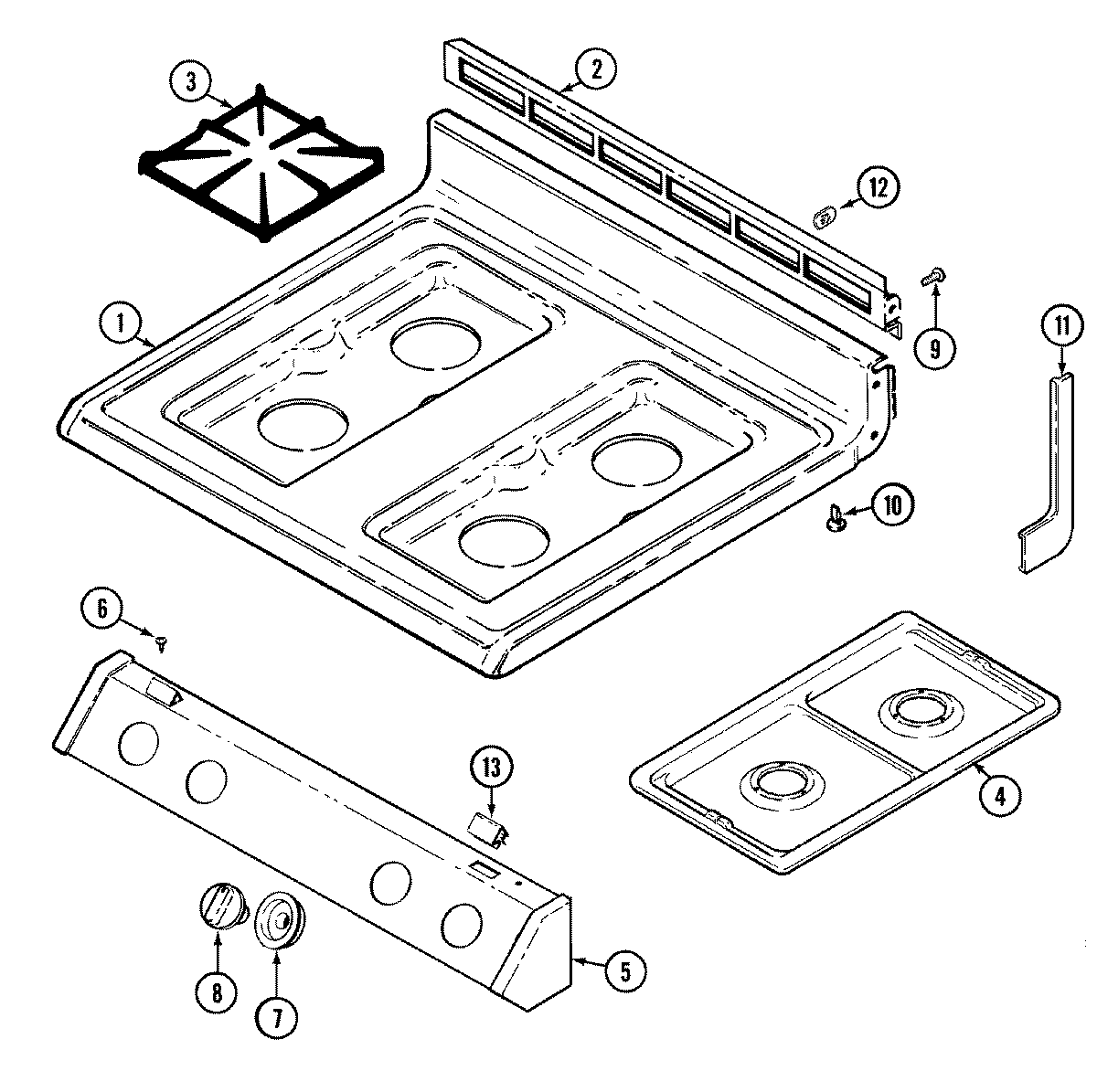

3488VVD 08 – TOP ASSEMBLY (3488VVD)

3488VVD 08 – TOP ASSEMBLY (3488VVD)

Written by

in

3488VVD 08 – TOP ASSEMBLY (3488VVD)

Products

PositionProduct
1MAY 2001W085-84
2MAY 3608F042-08
3MAY 2003W027-08
4MAY 5401A452-60
5MAY 7712P203-60
5MAY 74002800
6SCREW (8BX3/8-NI)
7MAY 7740P071-60
8MAY 7733P109-60
9SCREW (10ABX1/4P TR ZN)
10MAY 8016P015-60
11MAY 7746P036-60
11MAY 7746P037-60
11MAY 8270P095-60
12WP3195558 Whirlpool Nut
13MAY 7112P087-60
