3488VVS-N 03 – DOOR/DRAWER
Written by
in

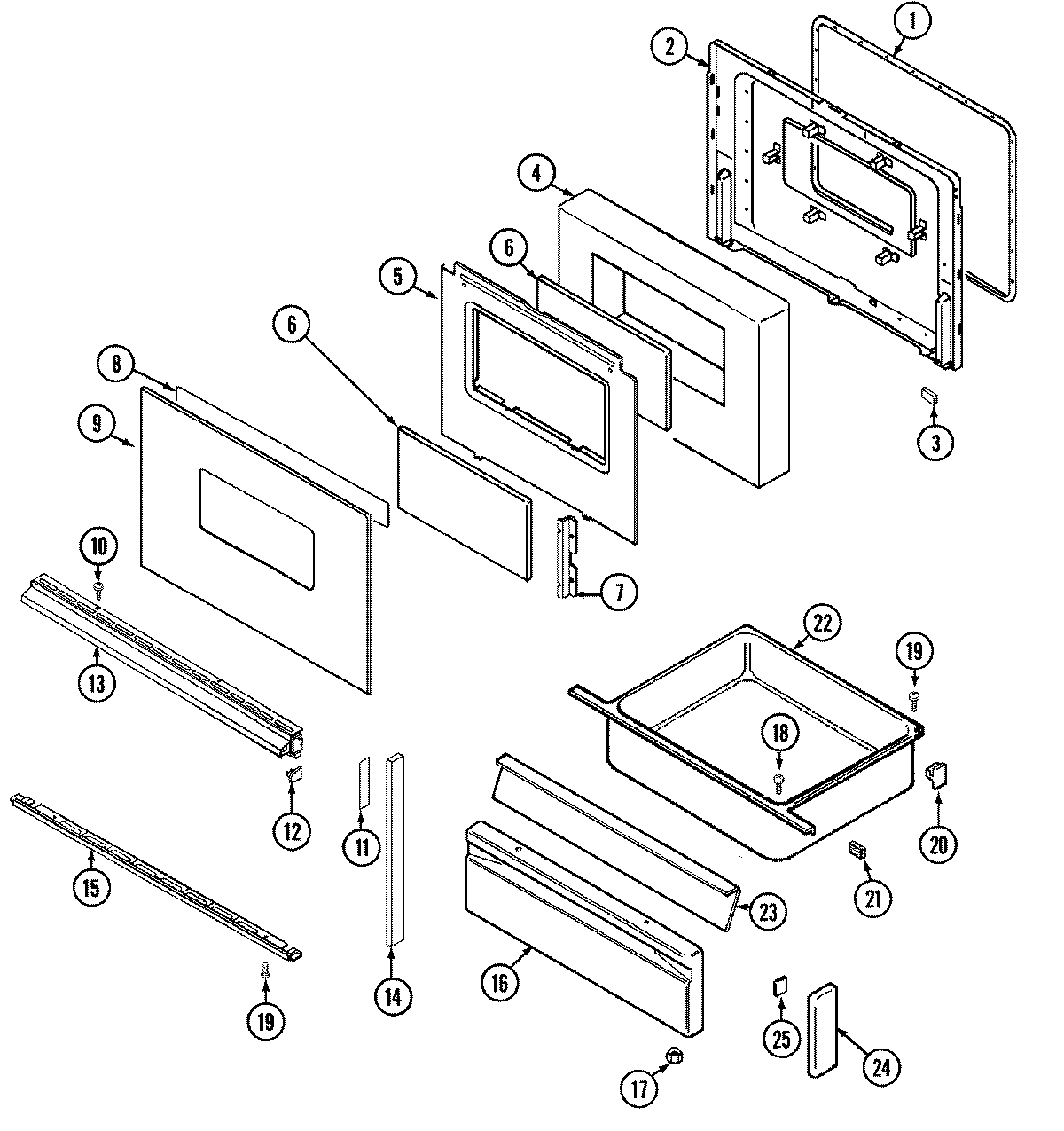

3488VVS-N 03 – DOOR/DRAWER
Products
Position
Product
1
GASKT-DOOR OVEN
2
MAY 2402W209-19
2
MAY 74003244
3
MAY 8010P085-60
4
MAY 74001842
5
MAY 74001843
6
MAY 74001841
7
MAY 74001844
8
TAPE, FOIL (3“ WIDE)
9
MAY 74003395
9
MAY 7902P328-60
10
WP98008544 Whirlpool Screw Assembly
11
MAY 8270P093-60
12
MAY 7744P076-60
12
MAY 7744P075-60
13
MAY 74001171
13
MAY 7701P105-60
13
MAY 74003396
14
MAY 74002342
14
MAY 7744P065-60
14
MAY 74003398
15
MAY 7744P103-60
15
MAY 74003397
16
MAY 2416F038-62
16
PANEL, DRAWER (WHT)
17
WPW10131078 Whirlpool Nut Assembly
18
WP7101P072-60 Whirlpool Screw
20
MAY 74003566
20
WP8004P026-60 Whirlpool Support
21
MAY 7208P011-60
22
MAY 3405F018-80
22
MAY 71003042
23
LINING, DRAWER PANEL
23
SCREW
24
MAY 7744P067-60
25
TAPE
25
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
←
