3488WVS 02 – CONTROL PANEL – Aparts

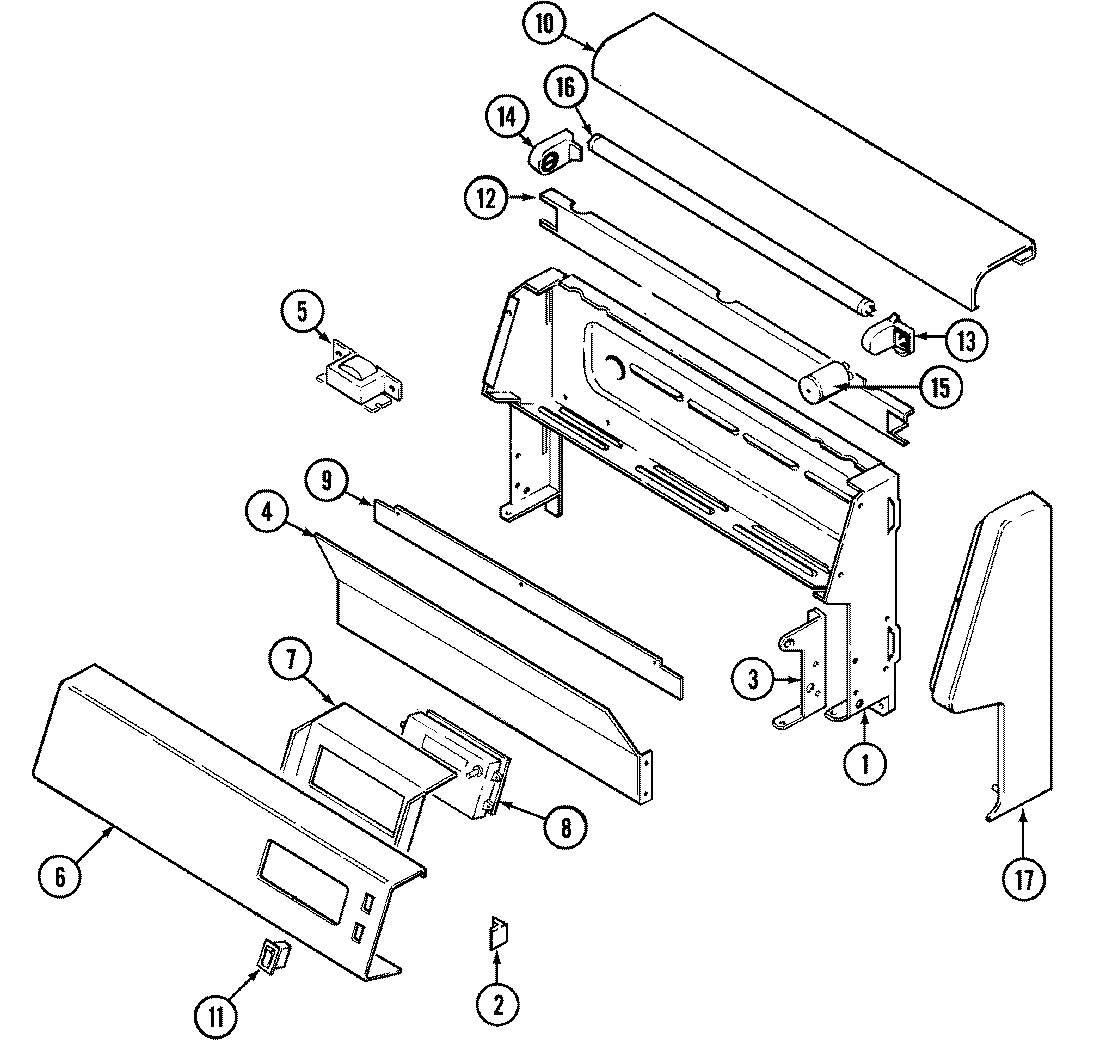

3488WVS 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4005F448-45
1	MAY 74002162
2	MAY 7101P148-60
2	MAY 8010P083-60
3	MAY 3807F454-51
3	MAY 3807F453-51
4	MAY 3604F188-09
5	MAY 7412P007-60
6	MAY 74001065
7	WPY706189 Whirlpool Stove Screw
7	MAY 74002099
8	MAY 74001085
9	MAY 8036P003-60
10	MAY 74001066
11	MAY 7403P200-60
12	MAY 3807F406-71
13	MAY 7408P029-60
14	MAY 7408P030-60
14	MAY 7724P066-60
15	MAY 7415P001-60
16	MAY 7407P004-60
17	MAY 7103P129-60
17	MAY 74002794
17	MAY 74002795
17	SCREW (8BX3/8-NI)
19	MAY 5180D151-60
19	MAY 5185D251-60
19	MAY 5170P204-60
20	MAY 8113P066-60
21	MAY 16000329
