3488WVS 06 – TOP ASSEMBLY – Aparts

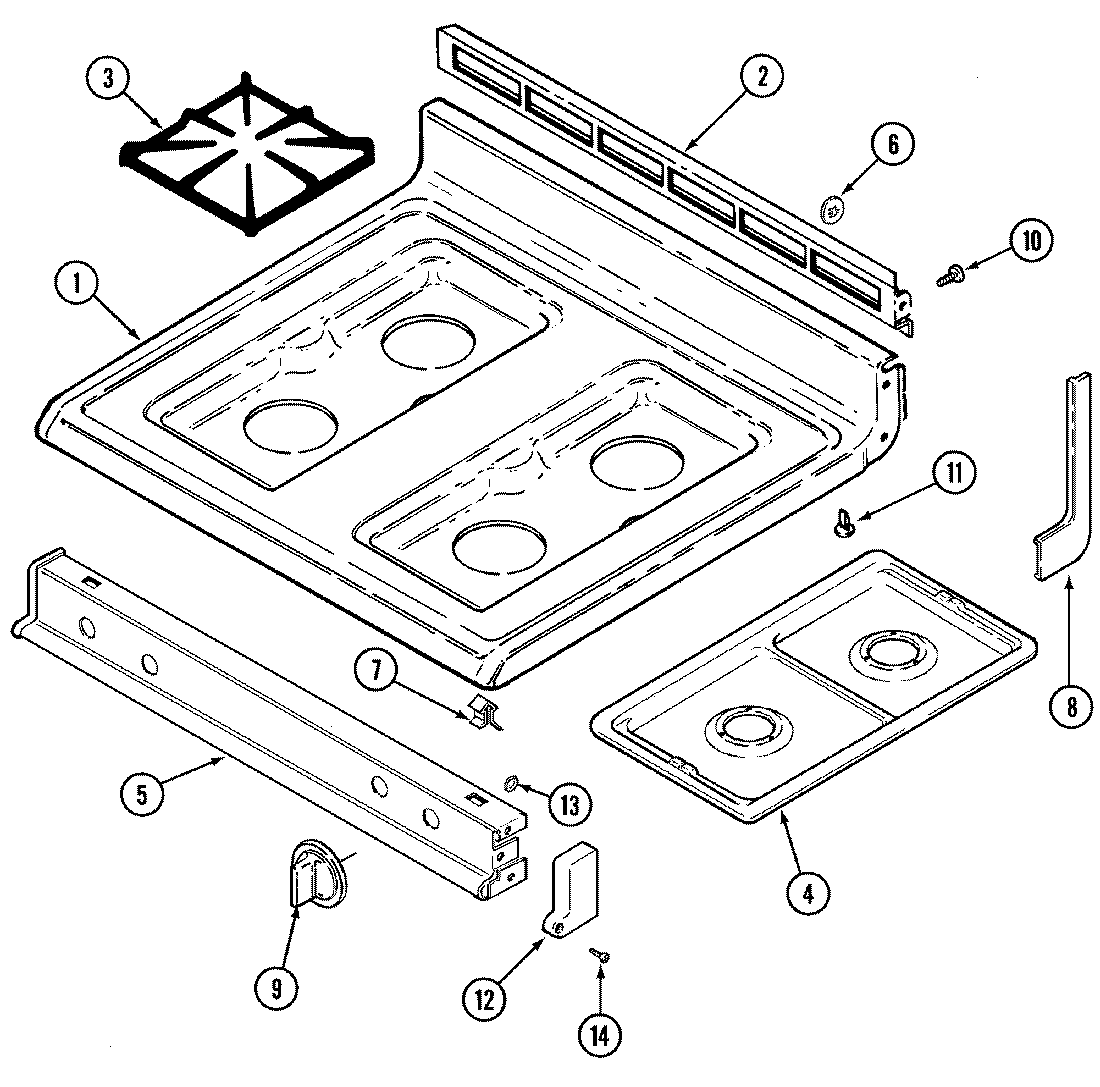

3488WVS 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74002324
2	MAY 3608F042-09
3	MAY 74001076
4	MAY 5401A452-60
5	MAY 7101P074-60
5	MAY 7712P234-60
6	WP3195558 Whirlpool Nut
7	MAY 7112P087-60
8	MAY 7746P031-60
8	MAY 7746P030-60
9	MAY 74001077
10	SCREW (10ABX1/4P TR ZN)
11	MAY 8016P015-60
12	MAY 74001067
12	MAY 74001068
13	MAY 74002563
14	MAY 7118P013-60
