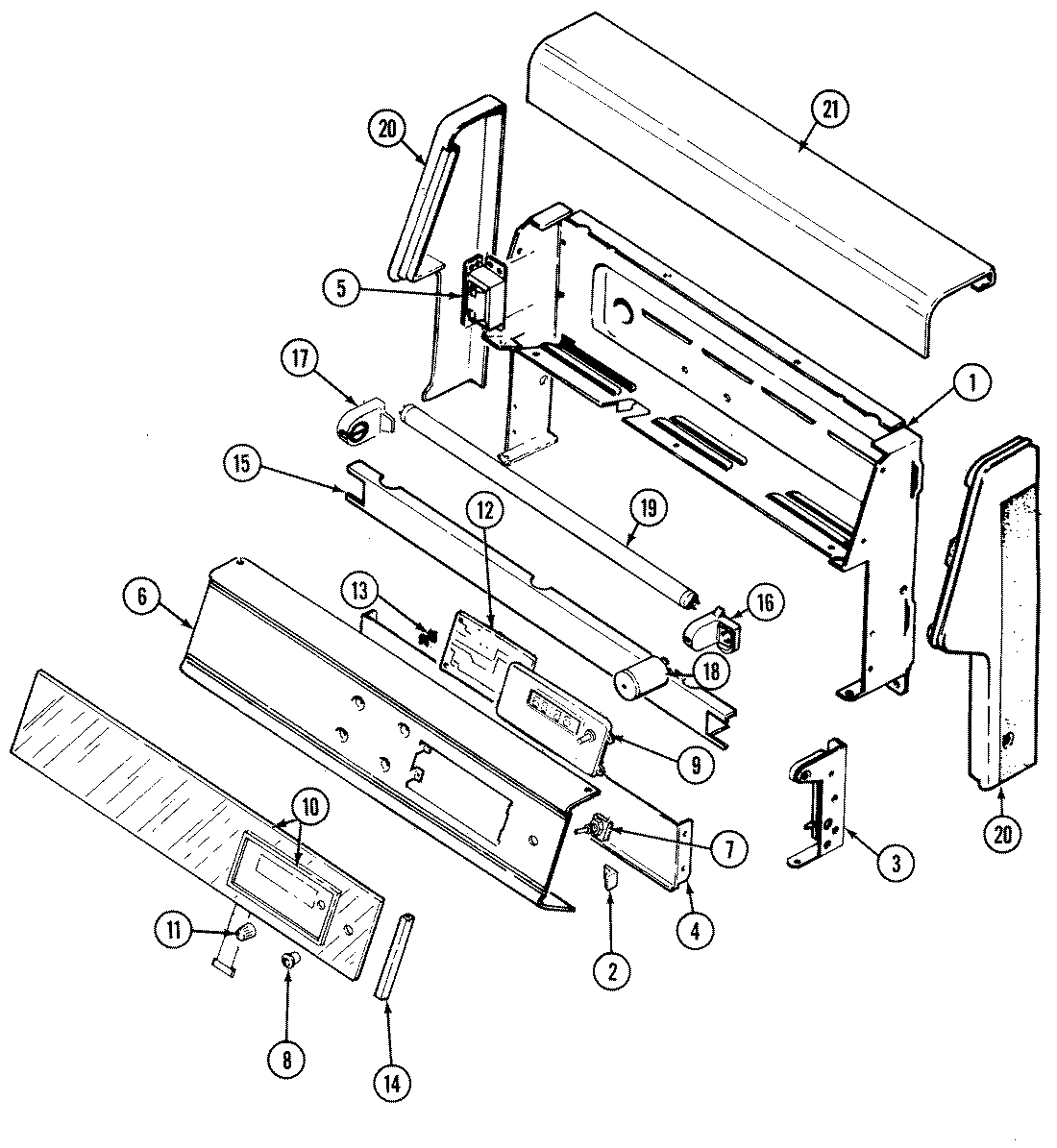

3488XPA 02 – CONTROL PANEL
Written by
in
3488XPA 02 – CONTROL PANEL
Products
Position
Product
1
MAY 4001F093-51
1
MAY 2612F037-84
2
MAY 8010P083-60
2
MAY 7101P148-60
3
MAY 7118P015-60
3
MAY 3807F423-51
3
MAY 3807F424-51
4
MAY 7109P028-60
4
MAY 3604F188-09
4
MAY 7101P277-60
5
MAY 7412P007-60
6
MAY 7703P274-60
6
MAY 7703P441-60
6
MAY 7118P019-60
7
MAY 7403P109-60
8
MAY 7214P007-60
9
MAY 7601P208-60
9
MAY 7601P169-60
10
MAY 4851S015-59
10
MAY 4851S013-59
11
MAY 7711P431-60
12
MAY 7428P012-60
13
MAY 8004P020-60
14
MAY 7720P155-60
15
MAY 3807F406-71
16
MAY 7408P029-60
17
MAY 7408P030-60
18
MAY 7415P001-60
19
MAY 7407P004-60
20
MAY 7726P033-60
20
MAY 7726P034-60
21
MAY 5125A353-60
21
MAY 7724P054-60
21
MAY 5180D151-60
←
