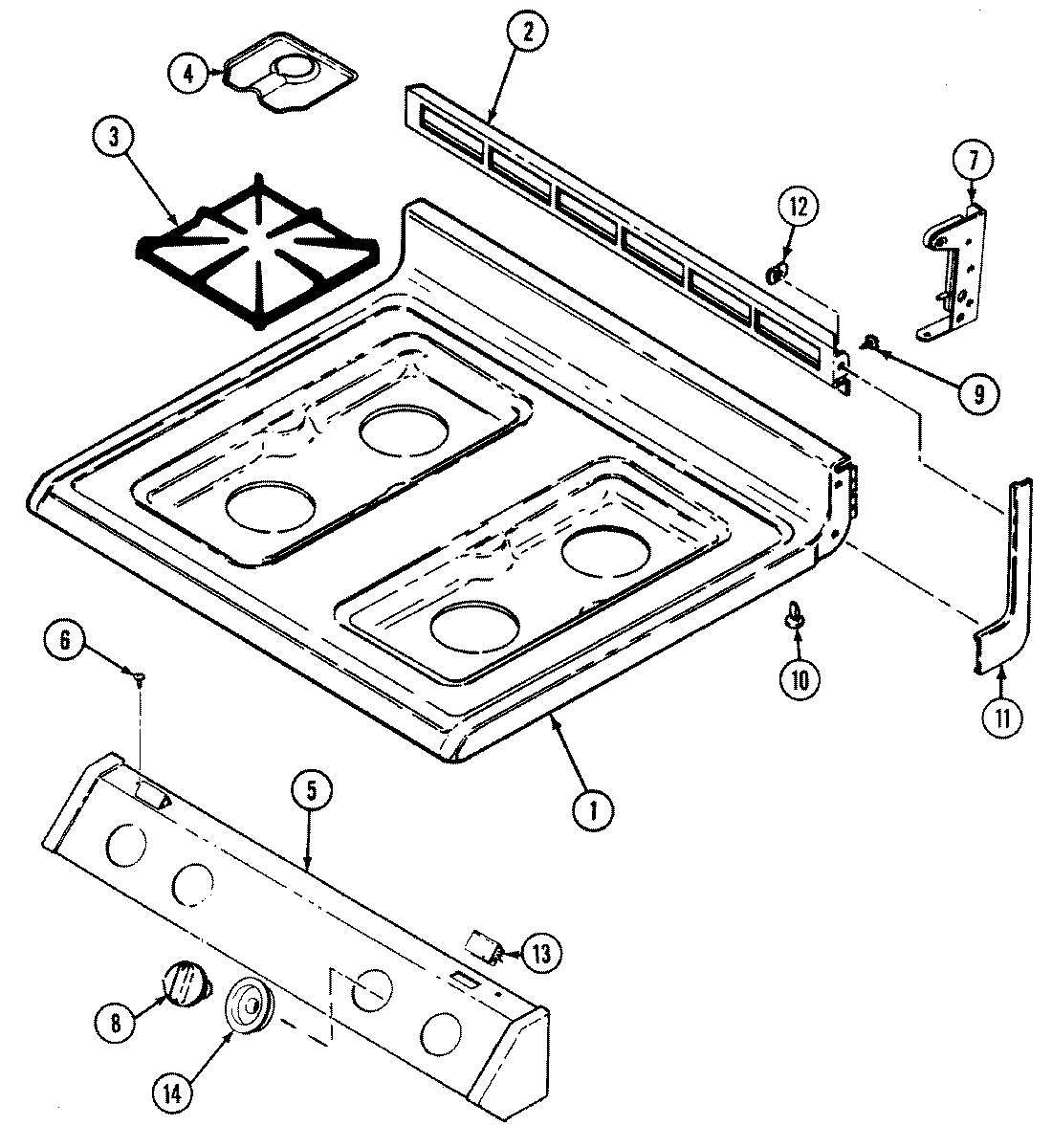

3488XRA 07 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W082-84
2	MAY 3608F042-09
3	MAY 2003W027-00
3	MAY 2003W023-00
4	MAY 5401A452-60
5	MAY 7712P130-60
6	MAY 7118P015-60
7	MAY 3807F424-51
7	MAY 3807F423-51
7	MAY 8114P348-60
8	WP74003781 Whirlpool Valve Knob
9	SCREW (10ABX1/4P TR ZN)
10	MAY 8016P013-60
11	MAY 8270P095-60
11	MAY 7746P031-60
11	MAY 7746P030-60
12	MAY 7103P129-60
13	MAY 7112P087-60
14	MAY 7740P033-60
14	MAY 8113P026-60
14	MAY 8113P018-60
