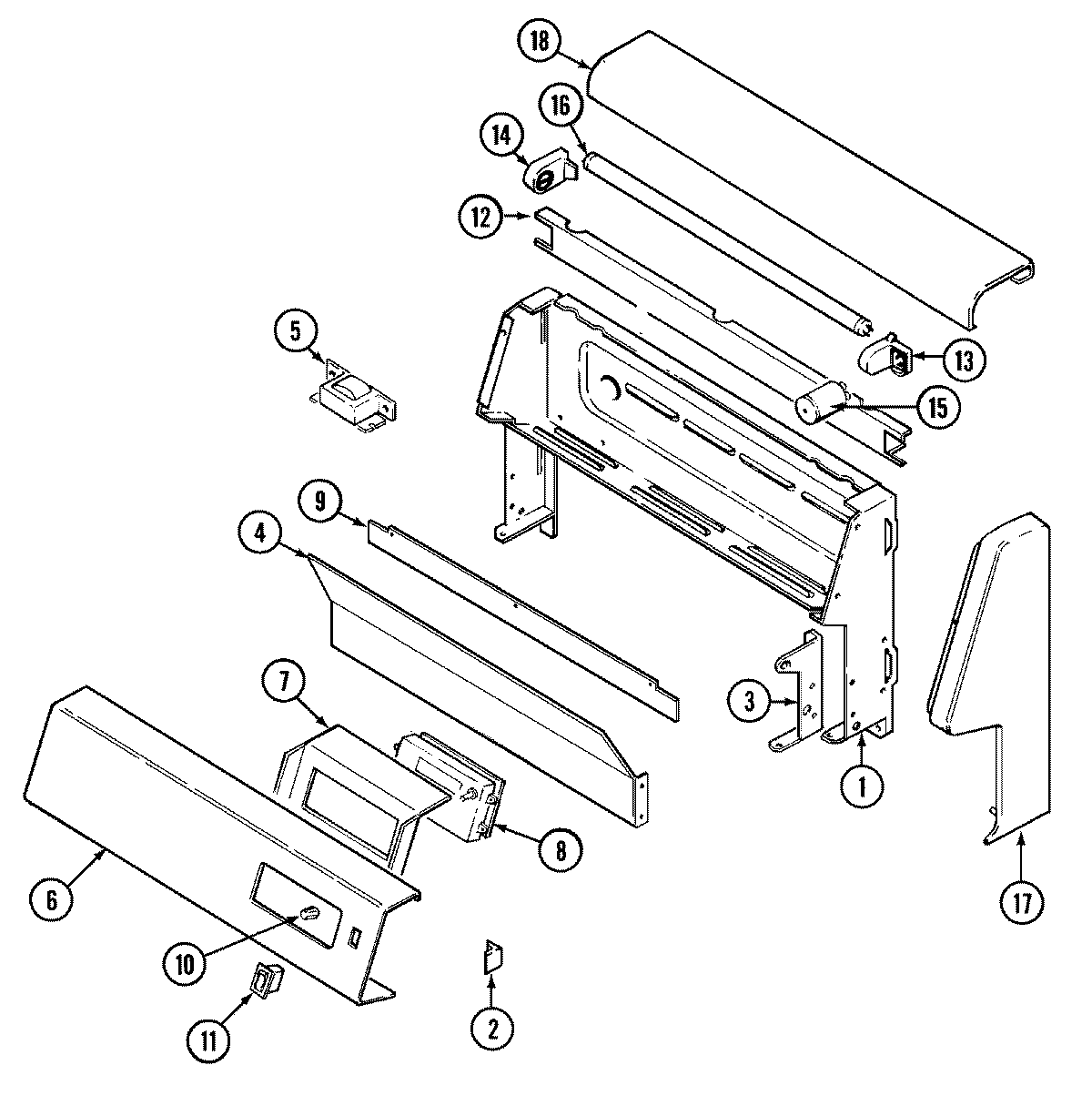

3488XRA-N 03 – CONTROL PANEL (SERIAL PREFIX 27)

Products

Position	Product
1	MAY 74002162
1	MAY 4001F091-51
2	MAY 8010P083-60
2	MAY 7101P148-60
3	MAY 3807F453-51
3	MAY 3807F454-51
4	MAY 3604F188-09
5	MAY 7412P007-60
6	MAY 7703P594-60
7	WPY706189 Whirlpool Stove Screw
7	MAY 74001506
8	MAY 7601P230-60
8	MAY 74002254
9	MAY 8036P003-60
10	WP7711P492-60 Whirlpool Clock Knob
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	7403P067-60 Whirlpool Light Switch
12	MAY 3807F406-71
13	MAY 7408P029-60
14	MAY 7408P030-60
15	MAY 7415P001-60
16	MAY 7407P004-60
17	MAY 7726P048-60
17	MAY 7726P047-60
17	MAY 7103P129-60
17	SCREW (8BX3/8-NI)
18	MAY 7724P054-60
19	MAY 5170P204-60
19	MAY 5125A353-60
19	MAY 5185D251-60
19	MAY 5180D151-60
20	MAY 8113P066-60
20	MAY 74001712
20	MAY 74002471
21	MAY 16000329
