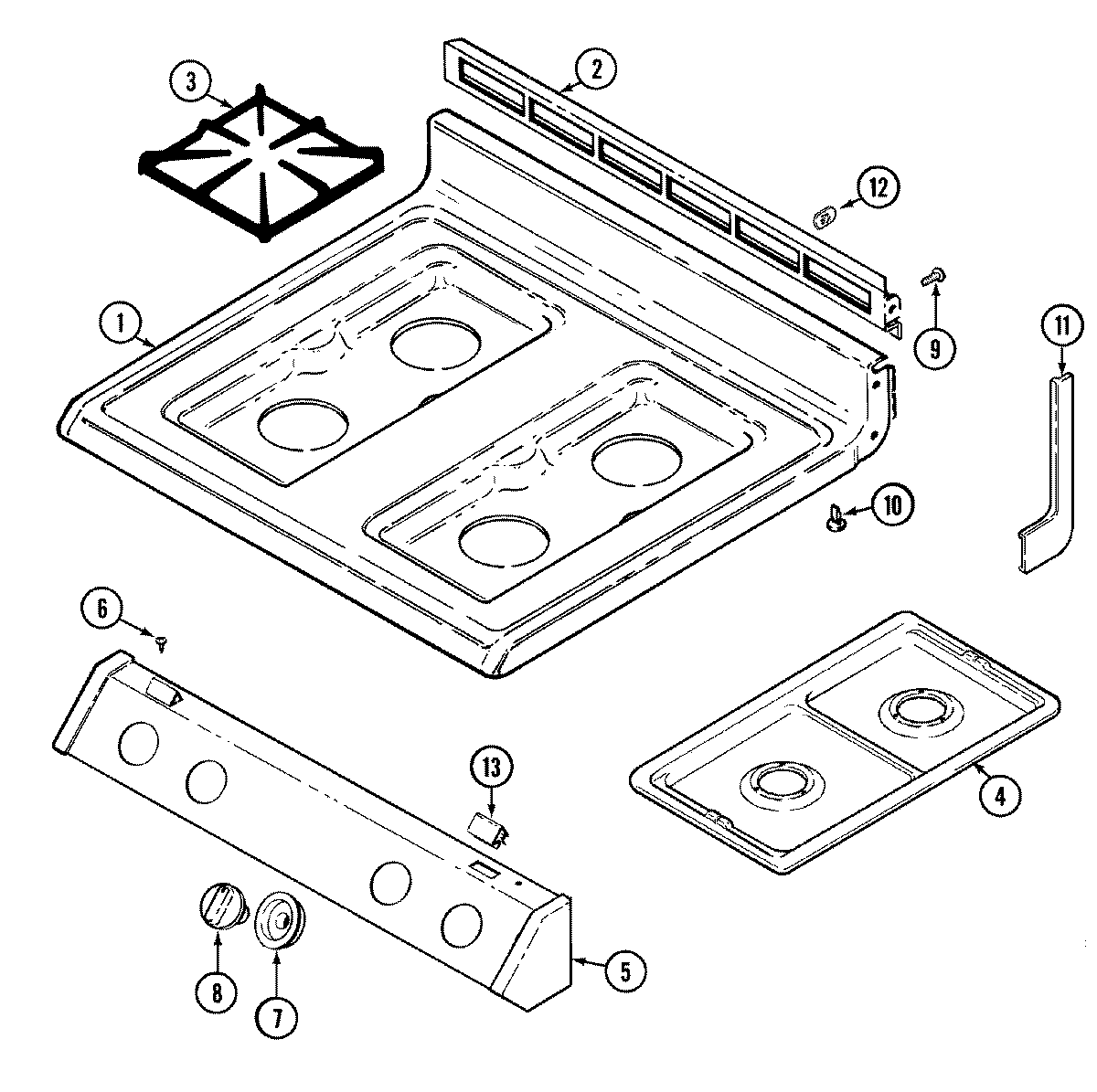

3488XRA-N 08 – TOP ASSEMBLY

3488XRA-N 08 – TOP ASSEMBLY

Written by

in

3488XRA-N 08 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W085-84
2	MAY 3608F042-09
3	MAY 2003W027-00
4	MAY 5401A452-60
5	MAY 74001344
6	MAY 7118P015-60
7	MAY 7740P033-60
8	WP74003781 Whirlpool Valve Knob
9	SCREW (10ABX1/4P TR ZN)
10	MAY 8016P015-60
11	MAY 7746P030-60
11	MAY 8270P095-60
11	MAY 7746P031-60
12	MAY 7103P129-60
13	MAY 7112P087-60
