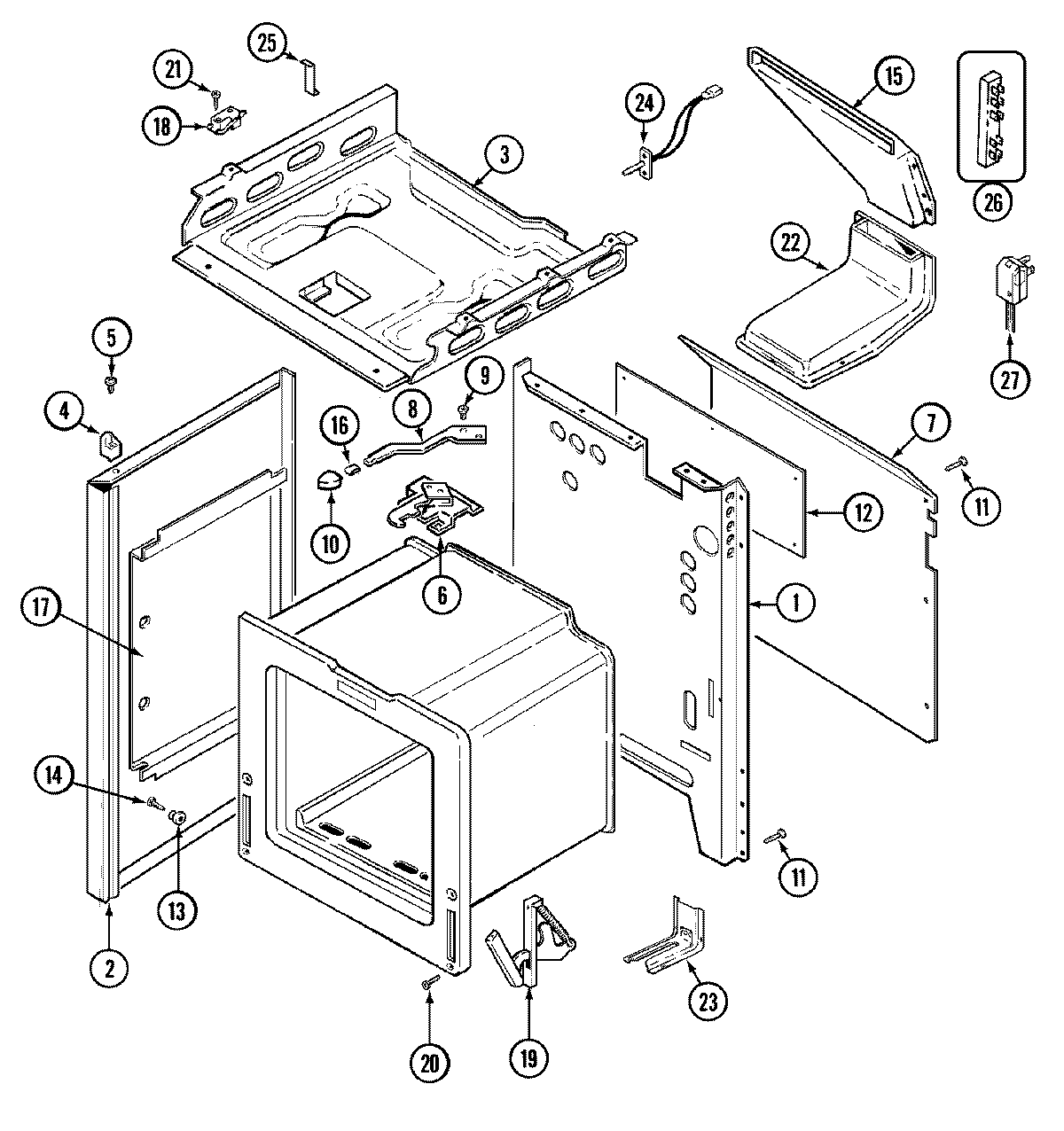

3488XVB 01 – BODY

Products

Position	Product
1	MAY 4002F199-80
2	MAY 2618F110-70
3	MAY 4011F231-80
3	MAY 4011F250-80
4	SPACER, MAIN TOP (LT)
4	SPACER, MAIN TOP (RT)
5	MAY 7101P313-60
6	MAY 74001084
6	MAY 4804F028-60
6	MAY 7101P280-60
6	MAY 8002P027-60
6	MAY 74001069
7	MAY 4005F331-51
8	MAY 8009P023-60
8	LEVER, LATCH (BLK)
8	MAY 8009P029-60
9	SCREW, LEVER
10	MAY 7701P132-60
11	MAY 7101P290-60
12	MAY 3604F165-51
13	MAY 8004P024-60
14	WP400021-1 Whirlpool Screw
15	MAY 4022W005-19
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 7112P003-60
17	MAY 3804F103-51
18	MAY 3801F267-45
18	MAY 7003P063-60
18	MAY 7403P228-60
18	MAY 7403P361-60
19	MAY 7106P056-60
20	WP4159193 Whirlpool Screw
21	MAY 7101P031-60
21	MAY 7101P330-60
22	MAY 4006W113-45
23	MAY 7101P289-60
23	MAY 3801F218-51
24	MAY 7430P009-60
25	MAY 3807F431-45
26	MAY 7401P037-60
27	MAY 7402P043-60
