3488XVB 06 – OVEN/BASE

3488XVB 06 – OVEN/BASE

Written by

in

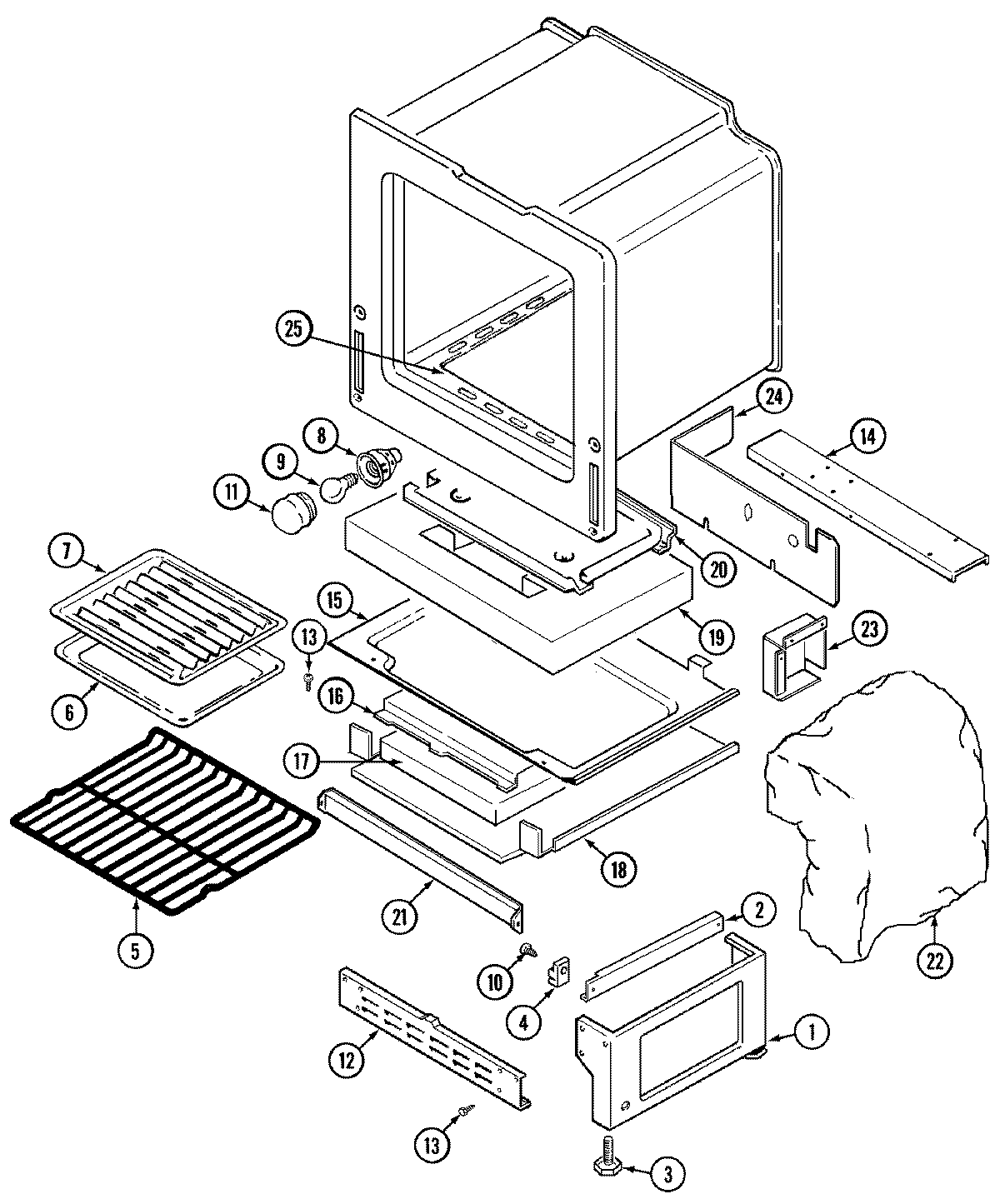

3488XVB 06 – OVEN/BASE

Products

PositionProduct
1MAY 74003003
1MAY 74001705
2MAY 3406F028-51
3W11665456 Whirlpool Range Level Foot
3MAY 7101P306-60
4MAY 8004P033-60
5MAY 7801P047-60
6MAY Y3401F02019
7MAY Y3413F01619
8MAY 74003125
8WP7407P182-60 Whirlpool Lamp
9RANGE ONLY 40W 120V APPL BULB
10SCREW
11WP9781049 Whirlpool Light Lens
12MAY 4020F001-80
14MAY 3807F447-51
15MAY 3804F112-51
16MAY 3604F204-51
17INSULATION, DRAWER & SHIELD
18MAY 3604F205-51
19MAY 4804F014-60
20MAY 3401F025-47
21BAFFLE, OVEN FRONT
21MAY 3601F208-45
22MAY 4804F036-60
22MAY 4804F038-60
23MAY 3807F432-45
24MAY 4005F429-51
25MAY 3601F229-45
25MAY 5504M004-19
25MAY 7101P290-60
