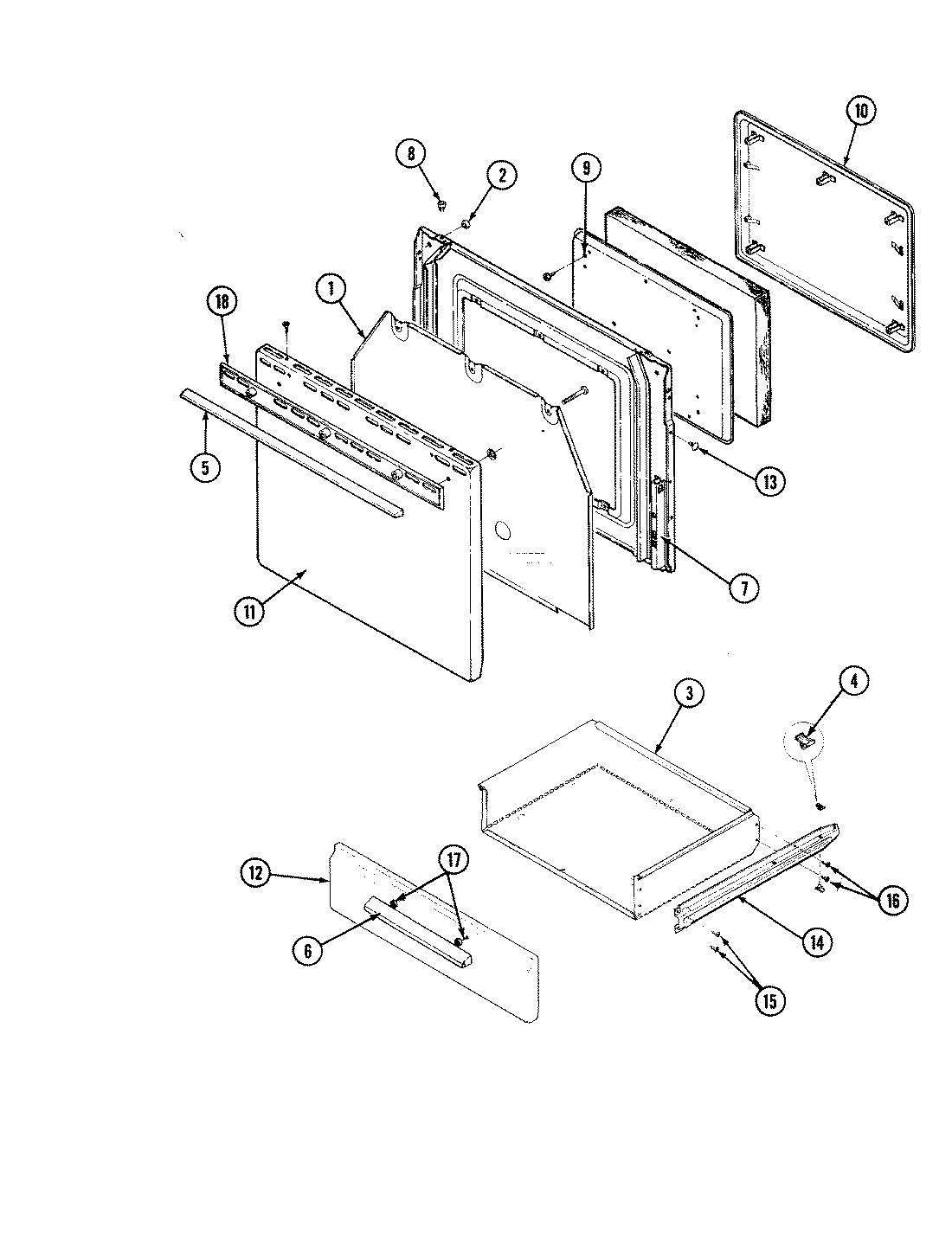

| 1 | SCREW |
| 1 | MAY 3601F095-51 |
| 1 | MAY 3801F115-51 |
| 2 | MAY 8003P002-60 |
| 3 | MAY 3405F008-80 |
| 4 | MAY 8016P004-60 |
| 4 | MAY 8016P009-60 |
| 5 | MAY 7701P030-60 |
| 6 | MAY 7701P012-60 |
| 6 | MAY 7101P080-60 |
| 7 | MAY 2402W128-15 |
| 8 | WP7103P114-60 Whirlpool Snap Nut |
| 9 | MAY 2410F012-51 |
| 10 | MAY 2410W028-15 |
| 11 | MAY 2401F043-71 |
| 12 | MAY 2416F017-71 |
| 13 | SCREW, HINGE |
| 14 | MAY 3406F026-80 |
| 14 | MAY 3406F020-80 |
| 15 | MAY 7101P225-60 |
| 16 | MAY 7208P002-60 |
| 16 | MAY 7101P061-60 |
| 17 | MAY 8010P002-60 |
| 18 | MAY 7720P063-60 |
