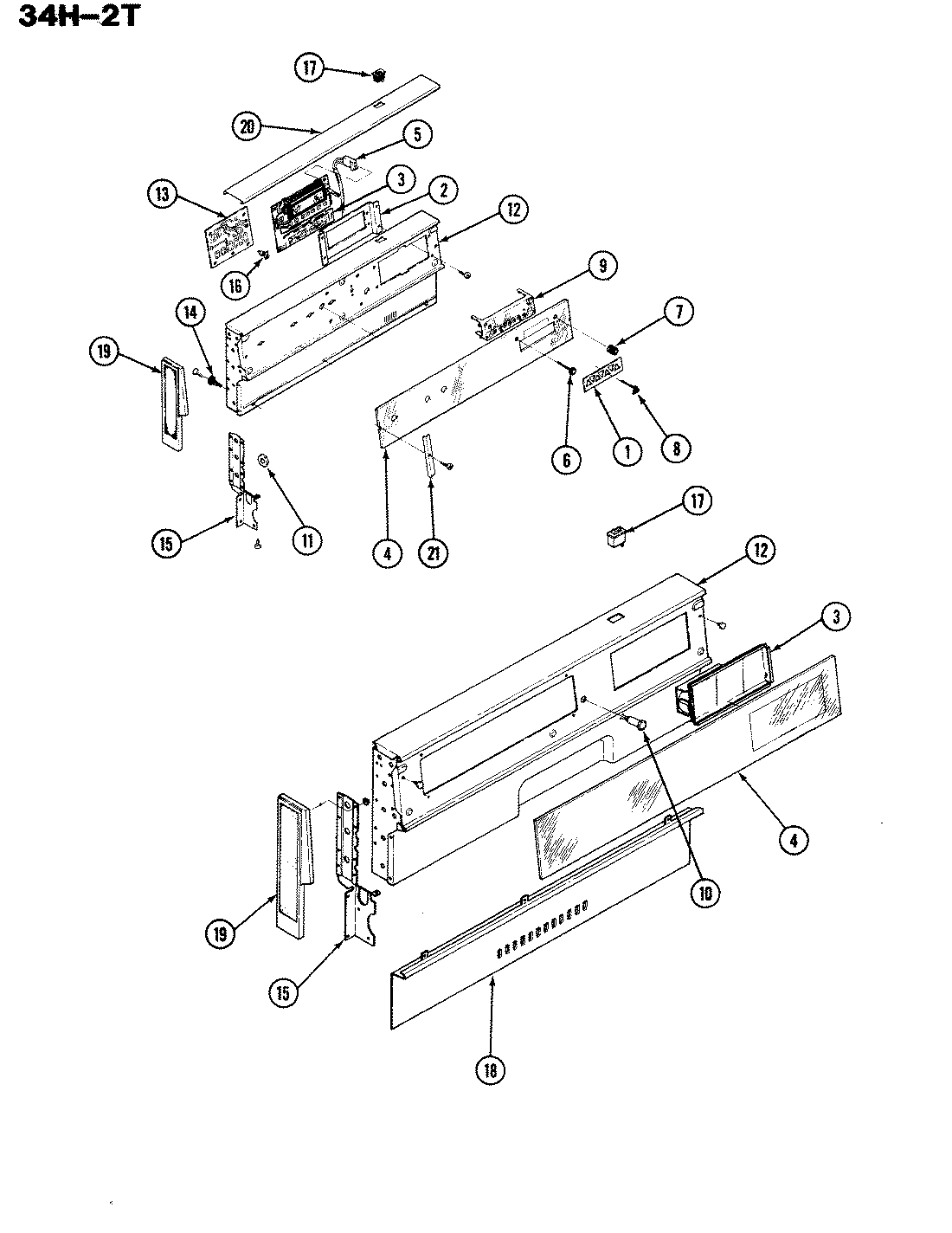

34HA-2CKW 02 – CONTROL PANEL

Products

Position	Product
3	MAY 4005F195-80
3	MAY 7601P102-60
4	MAY 7910P052-60
5	MAY 7711P126-60
8	MAY 7711P381-60
10	MAY 7407P013-60
11	WP3195558 Whirlpool Nut
12	MAY 2601W199-84
14	MAY 7105P002-60
15	MAY 3807F012-80
15	MAY 3807F010-80
17	MAY 7403P102-60
18	MAY 2620W018-90
19	MAY 7726P019-60
19	MAY 7726P008-60
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21	MAY 7720P088-60
