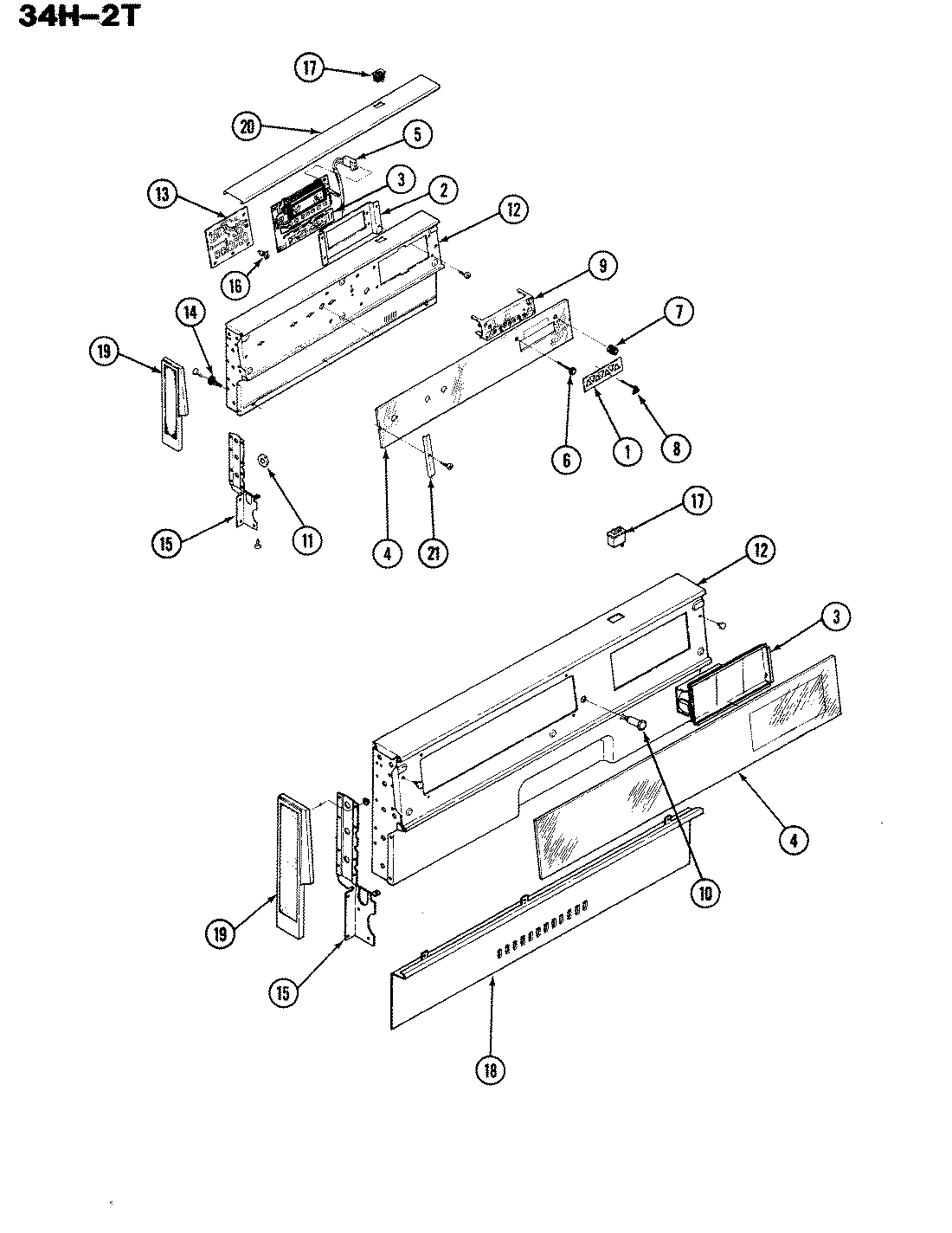

34HA-2TKX-FE 01 – BACKGUARD PARTS

Products

Position	Product
1	MAY 7740P010-60
1	MAY 7720P091-60
2	MAY 3801F118-45
3	MAY 7601P153-60
3	MAY 4005F194-80
3	MAY 7601P101-60
3	MAY 7601P071-60
4	MAY 7910P049-60
5	MAY 5170A007-60
6	MAY 7711P172-60
7	MAY 7711P171-60
8	MAY 7711P335-60
9	MAY 7730P002-60
9	MAY 7730P005-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	WP3195558 Whirlpool Nut
12	MAY 2601W151-84
13	MAY 7428P006-60
14	MAY 7105P002-60
15	MAY 3807F012-80
15	MAY 3807F010-80
16	MAY 8004P020-60
17	MAY 7403P102-60
18	MAY 2620W018-90
19	MAY 7726P008-60
19	MAY 7726P019-60
20	MAY 7715P016-60
21	MAY 7720P088-60
