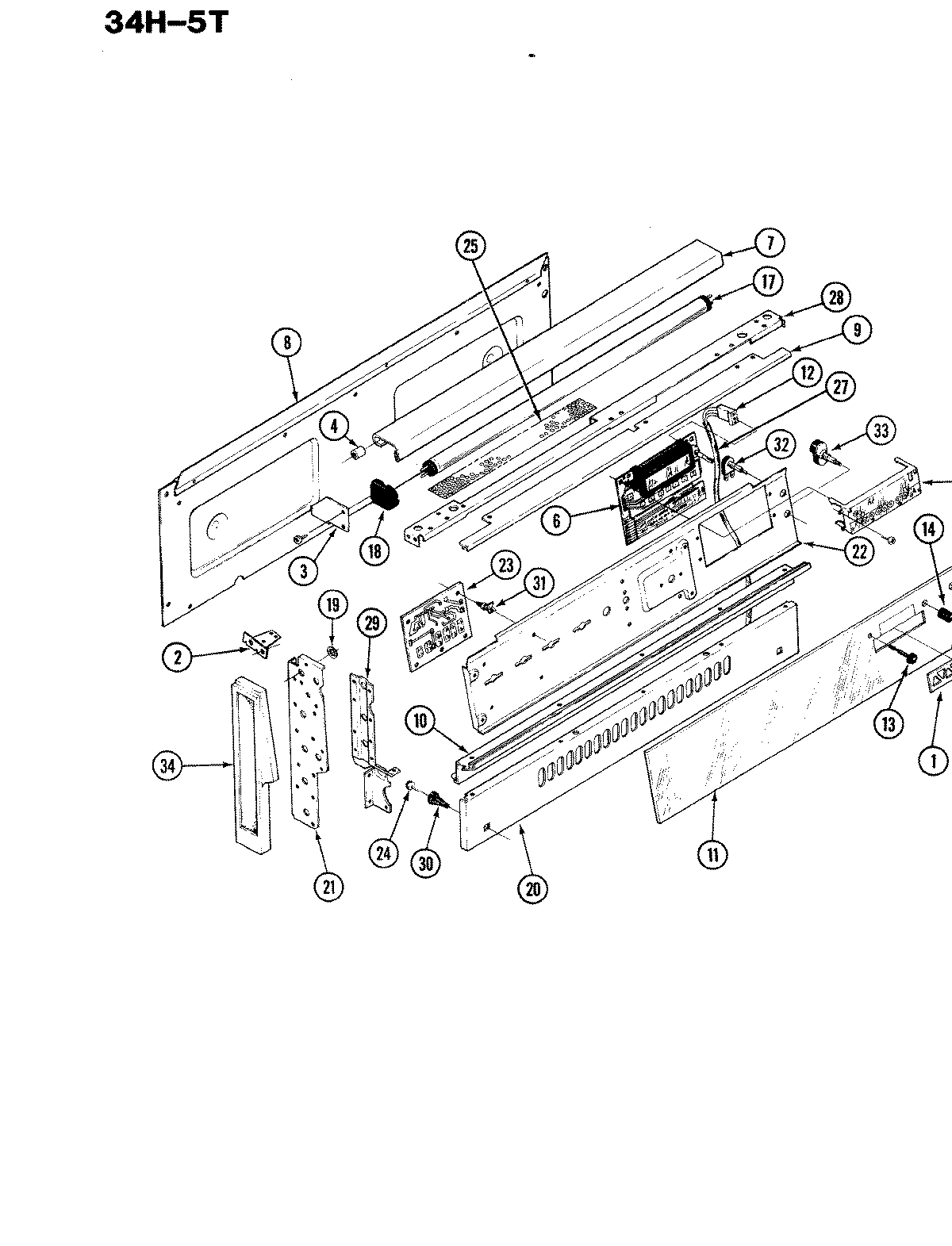

34HK-5TKXW 01 – BACKGUARD PARTS

Products

Position	Product
1	MAY 7720P091-60
1	MAY 7412P005-60
2	MAY 3801F109-34
2	MAY 3801F002-34
3	MAY 3801F096-45
3	MAY 3801F006-34
4	MAY 1089206
5	MAY 7711P335-60
5	MAY 7711P449-60
6	MAY 7601P071-60
6	MAY 7601P101-60
6	MAY 7601P181-60
6	MAY 7601P155-60
6	MAY 7601P163-60
7	MAY 7724P010-60
7	MAY 7724P017-60
7	MAY 4005F155-80
8	MAY 4005F368-80
8	MAY 4005F100-80
9	MAY 7706P166-60
10	MAY 7706P097-60
11	MAY 7902P174-60
11	MAY 7910P070-60
12	MAY 5170P006-60
12	MAY 5170A007-60
13	MAY 7711P171-60
13	MAY 7711P452-60
14	MAY 7711P431-60
14	MAY 7711P172-60
15	MAY 7711P008-60
16	MAY 7730P002-60
16	MAY 7730P005-60
17	MAY 7407P004-60
18	MAY 7408P005-60
19	WP4159193 Whirlpool Screw
20	MAY 7716P011-60
20	MAY 2620W018-90
21	MAY 3605F008-80
21	MAY 3605F006-80
22	MAY 7430P007-60
22	MAY 7430P004-60
22	MAY 3605F171-80
22	MAY 3605F144-80
22	MAY 3605F152-80
23	MAY 7428P006-60
24	SCREW
25	MAY 3604F079-80
26	MAY 7214P007-60
26	MAY 7214P001-60
27	MAY 7214P005-60
28	MAY 3807F215-80
28	MAY 3807F391-80
29	MAY 3807F012-80
29	MAY 3807F010-80
30	MAY 7105P002-60
31	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
31	MAY 8004P020-60
32	MAY 7403P179-60
32	MAY 7403P009-60
33	MAY 7403P019-60
33	MAY 7403P104-60
34	MAY 7728P053-60
34	MAY 7720P061-60
34	MAY 7726P007-60
34	MAY 7726P018-60
