34HN-3TKXW-ON 01 – ACCESS

34HN-3TKXW-ON 01 – ACCESS

Written by

in

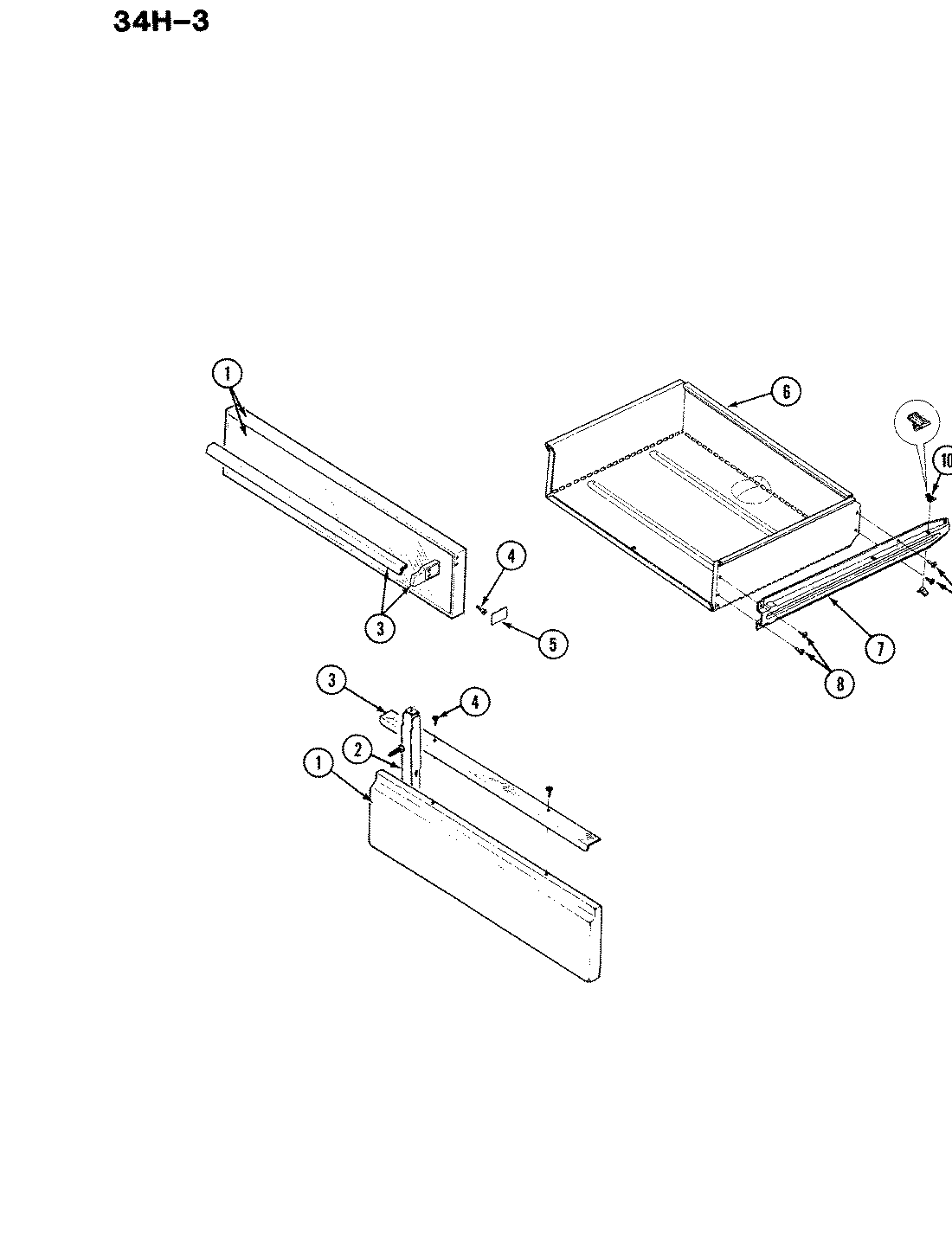

34HN-3TKXW-ON 01 – ACCESS

Products

PositionProduct
1MAY 2416F018-71
2MAY 3801F115-51
3WP2411F013-71 Whirlpool Door Handle
4SCREW
5NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6MAY 3405F008-80
7MAY 3406F026-80
8MAY 7101P061-60
10MAY 8016P004-60
