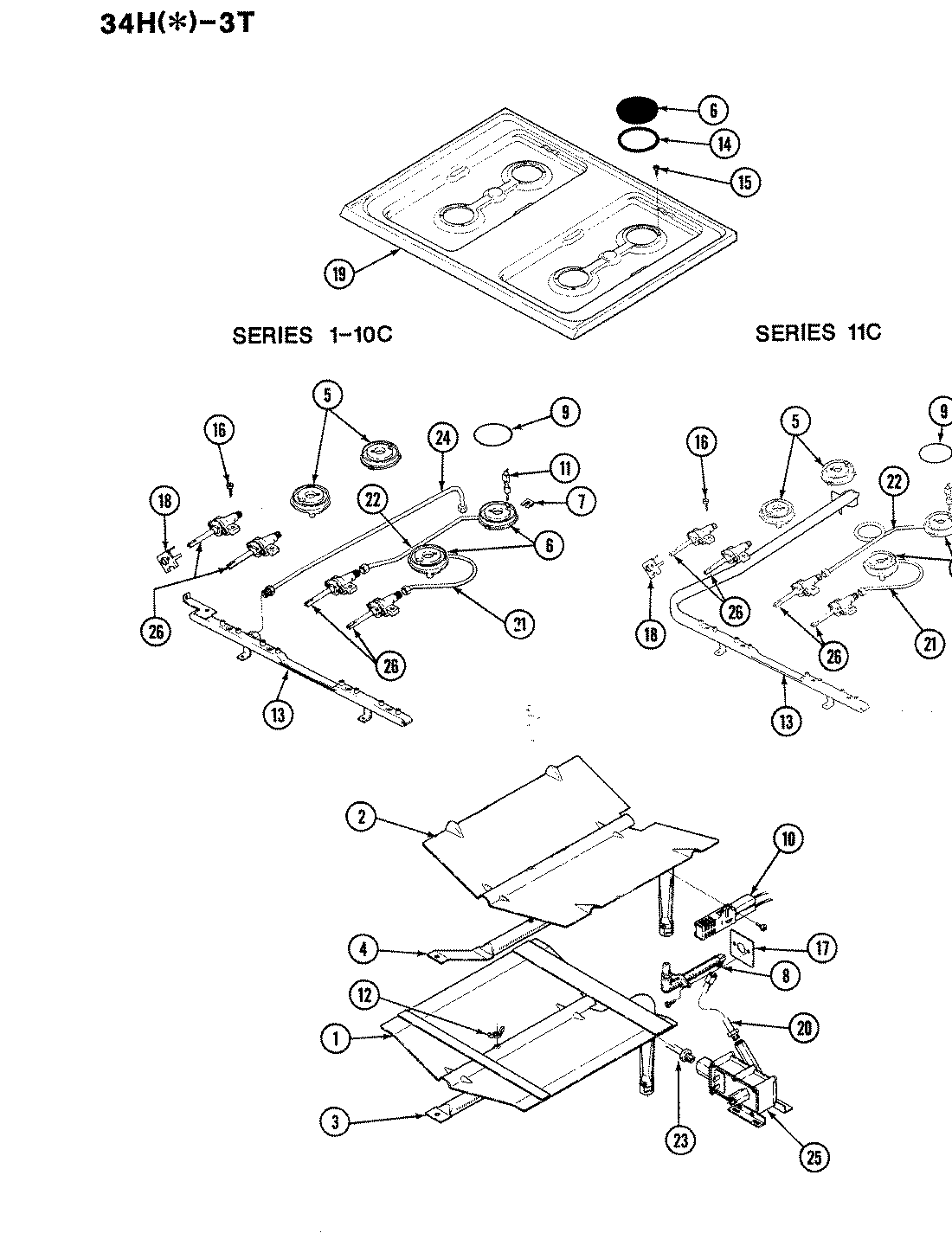

34HN-3TKXW-ON 04 – CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F099-45
1	MAY 7101P273-60
2	MAY 3801F096-45
2	MAY 3601W129-13
3	MAY 7505P101-60
4	MAY 7505P100-60
5	MAY 7505P187-60
5	MAY W10127325
6	MAY 7504P007-60
6	MAY 7504P005-60
7	MAY 4005F174-80
7	MAY 7112P072-60
8	MAY 7507P028-60
8	MAY 7507P053-60
9	MAY 7518P004-60
9	MAY 7201P037-60
9	MAY 7518P014-60
10	MAY 7432P052-60
10	MAY 7432P067-60
10	MAY 7101P057-60
11	MAY 7103P003-60
11	MAY 7432P053-60
12	MAY 7509P030-60
12	NUT, WING
13	MAY 7513P093-60
13	MAY 7510P027-60
13	MAY 7510P026-60
13	MAY 7513P086-60
13	MAY 3801F191-45
14	MAY 2014F001-00
15	MAY 7101P256-60
17	MAY 3807F329-45
18	WP7403P190-60 Whirlpool Switch
19	MAY 2001F063-91
20	MAY Y0936104
20	MAY Y0936103
21	MAY 7506P076-60
22	MAY 7506P077-60
23	MAY 1555258K
23	MAY Y0936102
24	MAY 7506P075-60
24	MAY 7506P091-60
24	MAY 7506P101-60
24	MAY 7506P092-60
24	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
25	MAY 7101P061-60
25	MAY 7501P034-60
26	MAY 5110A824-60
26	MAY 7502P100-60
26	MAY 7101P043-60
26	MAY 5110A825-60
27	MAY 5415A015-60
27	MAY 5415A014-60
