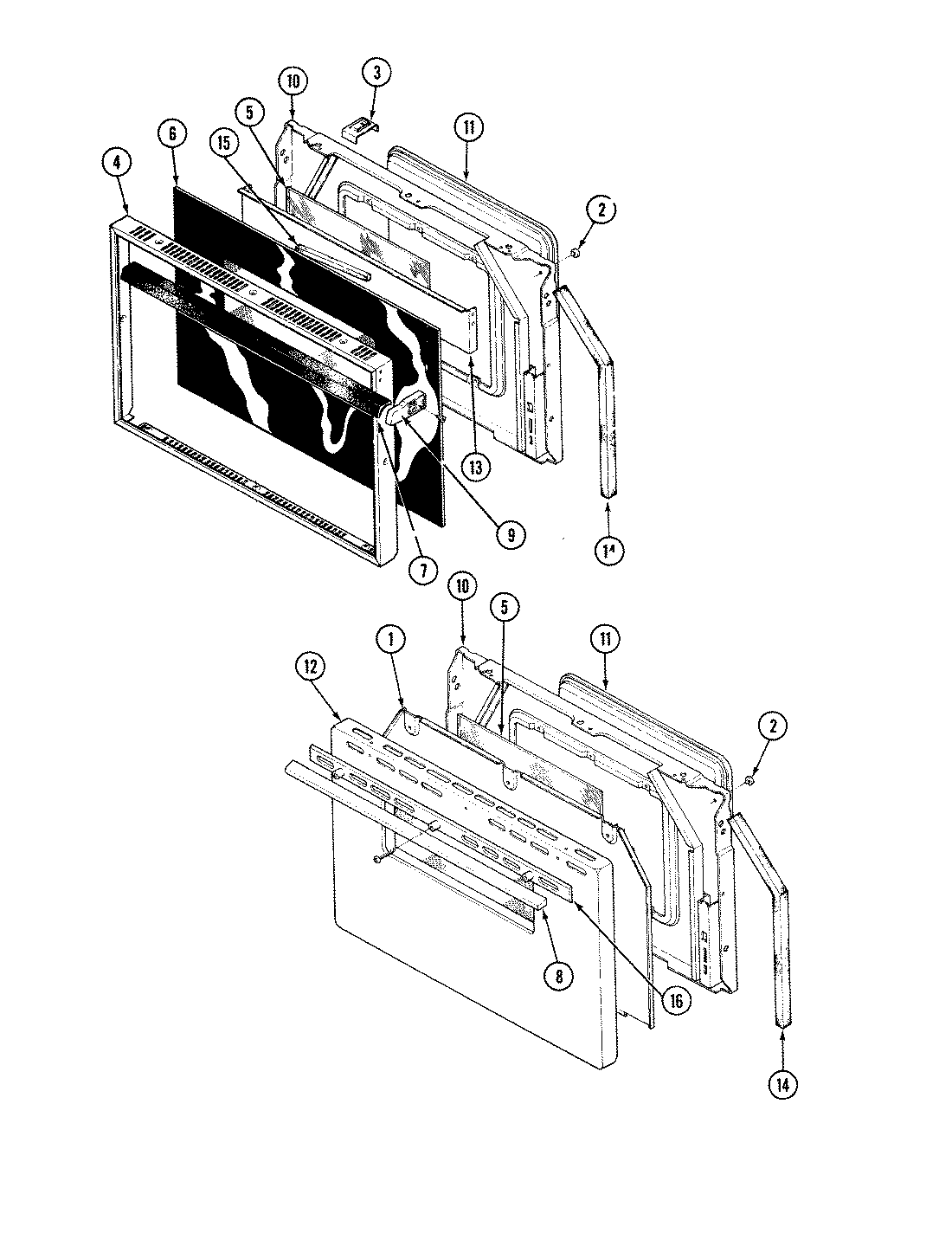

34HY-2CKX-ON 04 – DOOR (“Y“ MODELS)

Products

Position	Product
1	MAY 3801F115-51
1	MAY 3601F093-51
2	MAY 3405F008-80
2	MAY 8002P021-60
2	MAY 8003P002-60
4	MAY 7201P018-60
4	MAY 7706P177-60
5	MAY 7902P097-60
6	MAY 8016P009-60
6	MAY 7902P101-60
6	MAY 8016P004-60
6	MAY 7902P052-60
6	MAY 7902P103-60
7	MAY 7701P030-60
8	MAY 7701P014-76
10	MAY 2402W128-15
11	MAY 2410W029-12
11	MAY 2416F018-76
12	MAY 2401W044-76
13	MAY 3406F026-51
13	MAY 3406F020-80
13	MAY 3804F051-80
14	MAY 7208P007-60
15	MAY 3420A033-34
15	WP854334 Whirlpool Air Conditioner Sealing Strip
15	MAY 7803P002-60
15	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 7720P063-60
