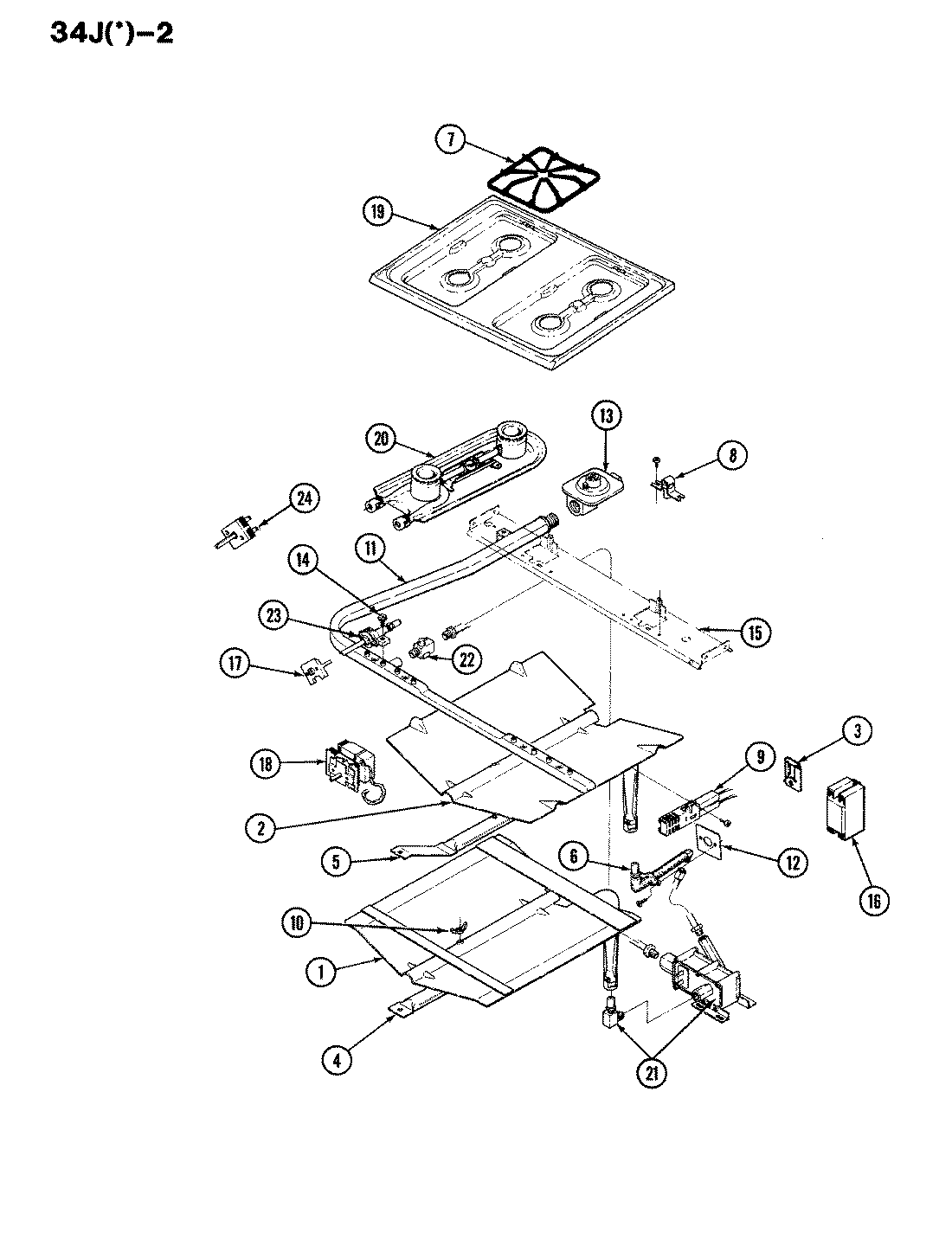

34JA-2CKX-ON 04 – TOP ASSEMBLY/GAS CONTROLS

Products

Position	Product
1	MAY 3601W184-15
1	MAY 3601W184-19
2	MAY 3601F181-45
3	MAY 3801F179-45
3	MAY 7101P061-60
4	MAY 3403D027-45
4	MAY 3403A015-45
4	MAY 7505P101-60
5	MAY 3403A016-45
5	MAY 7505P100-60
5	MAY 3403D028-45
6	MAY 7507P028-60
7	MAY 2003W026-00
7	MAY 2003W001-00
8	MAY 7432P008-60
8	MAY 7432P015-60
9	MAY 7432P052-60
9	MAY 7432P067-60
10	NUT, WING
11	MAY 7513P103-60
11	MAY 7513P044-60
11	MAY 7513P133-60
12	MAY 3605F019-45
13	MAY 7510P004-60
14	MAY 7101P044-60
14	MAY 7101P043-60
14	MAY 7101P296-60
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 7214P003-60
15	MAY 3807F347-51
16	MAY 3801F180-45
16	MAY 7431P006-60
16	MAY 4005F176-80
17	MAY 7403P282-60
17	WP7403P190-60 Whirlpool Switch
17	MAY 7403P107-60
17	MAY 7403P216-60
17	MAY 7403P259-60
17	MAY 7403P285-60
18	MAY 7515P020-60
18	MAY 3414F048-44
18	MAY 7404P064-60
18	MAY 3414F057-44
19	MAY 2001F035-84
20	MAY 3412A004-23
20	MAY 3412A004-19
20	MAY 7504P001-60
21	MAY 7501P034-60
21	MAY 4005F258-51
21	MAY 7501P095-60
22	MAY 7502P002-60
23	MAY 7502P109-60
23	MAY 7502P222-60
23	MAY 7502P174-60
24	MAY 7101P279-60
24	MAY 7403P092-60
