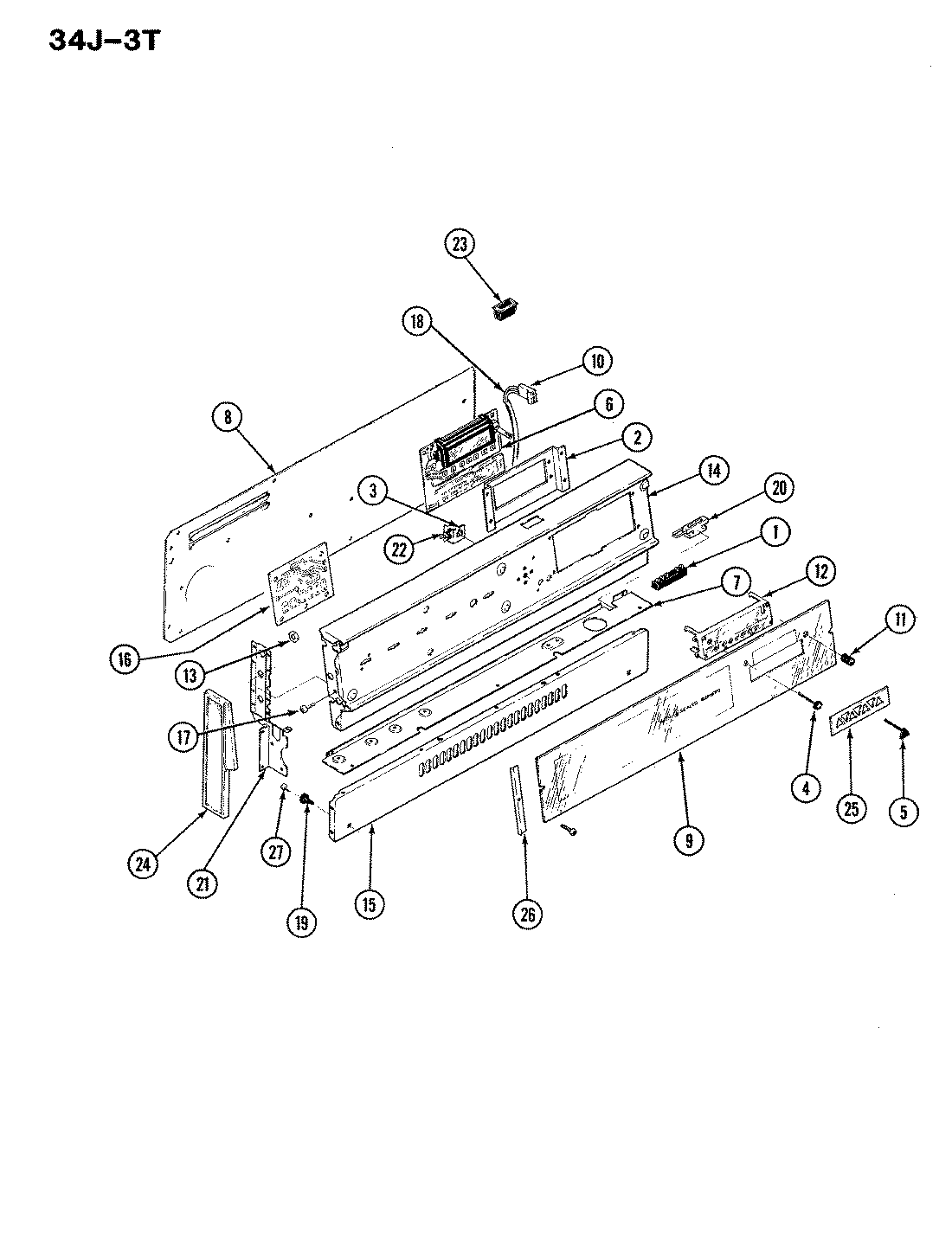

34JA-3TKXW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7401P015-60
2	MAY 3801F118-45
3	MAY 3801F096-45
4	MAY 7711P171-60
4	MAY 7711P452-60
5	MAY 7711P335-60
5	MAY 7711P449-60
6	MAY 7601P101-60
6	MAY 7601P155-60
6	MAY 7201P052-60
6	MAY 7601P163-60
6	MAY 7601P181-60
7	MAY 4005F155-80
8	MAY 4005F369-80
8	MAY 4005F194-80
9	MAY 7910P042-60
9	MAY 7910P129-60
10	MAY 5170P067-60
10	MAY 5170P007-60
10	MAY 5170P100-60
11	MAY 7711P172-60
11	MAY 7711P431-60
12	MAY 7730P005-60
13	WP3195558 Whirlpool Nut
14	MAY 2601W328-84
14	MAY 2601W199-84
15	MAY 7430P009-60
15	MAY 7101P058-60
15	MAY 2620W018-90
15	MAY 7430P007-60
15	MAY 7430P004-60
16	MAY 7428P006-60
17	MAY 7101P101-60
17	MAY 7214P003-60
18	MAY 7214P005-60
19	SPACER, HINGE (MAIN TOP)
20	BUSHING, SNAP
21	MAY 3807F348-51
21	MAY 7101P074-60
21	MAY 3807F349-51
22	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
22	MAY 7403P188-60
22	MAY 7101P008-60
22	WP59002061 Whirlpool Microwave Screw
22	MAY 8004P020-60
23	MAY 7403P102-60
24	WP4159193 Whirlpool Screw
24	MAY 7726P031-60
24	MAY 7726P032-60
25	MAY 7740P016-60
25	MAY 7740P010-60
26	MAY 7742P009-60
26	MAY 7720P088-60
26	MAY 7715P016-60
27	SCREW
