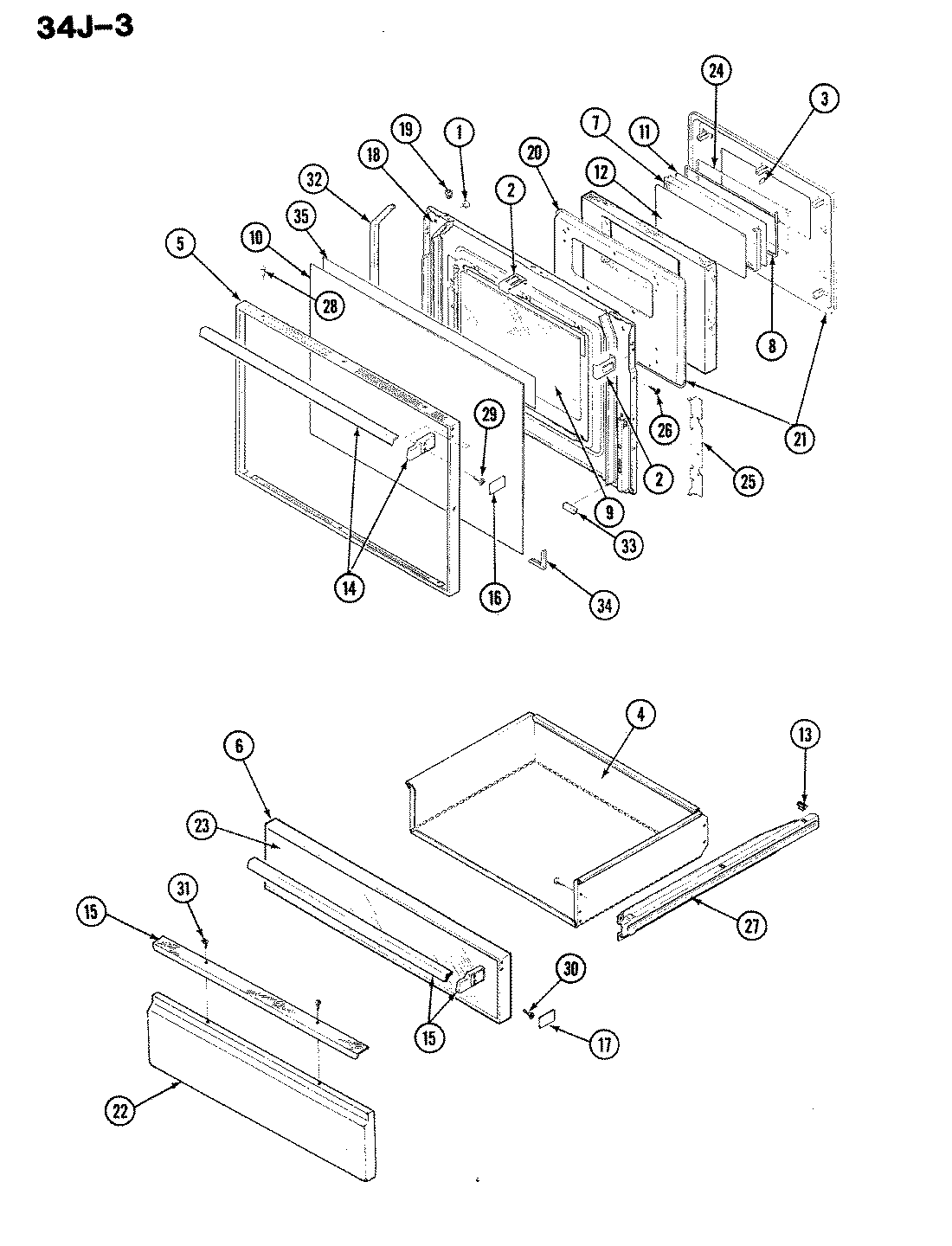

34JA-3TKXW 03 – DOOR

Products

Position	Product
1	MAY 8003P002-60
1	MAY 8003P009-60
1	MAY 3801F115-51
2	CLIP, DOOR
3	MAY 7112P051-60
4	MAY 3405F008-80
5	MAY 7706P243-60
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 7706P177-60
8	MAY 7201P018-60
9	MAY 7902P097-60
10	MAY 7902P276-60
11	MAY 7902P287-60
11	MAY 7902P340-60
12	MAY 7902P101-60
13	MAY 8016P009-60
13	MAY 8016P004-60
15	MAY 7701P047-60
17	MAY 7728P012-60
18	MAY 2402W128-15
18	MAY 2402W173-19
18	MAY 2402W173-15
19	WP7103P114-60 Whirlpool Snap Nut
20	MAY 2410F016-51
21	MAY 2410A037-15
23	MAY 5425A021-70
24	MAY 3804F022-45
25	MAY 3804F051-80
26	MAY 7107P017-60
27	MAY 3406F026-80
27	MAY 3406F020-80
28	WP7101P126-60 Whirlpool Screw
30	MAY 7101P123-60
32	MAY 7208P002-60
33	MAY 7208P011-60
34	MAY 8010P045-60
35	MAY 4870F005-60
