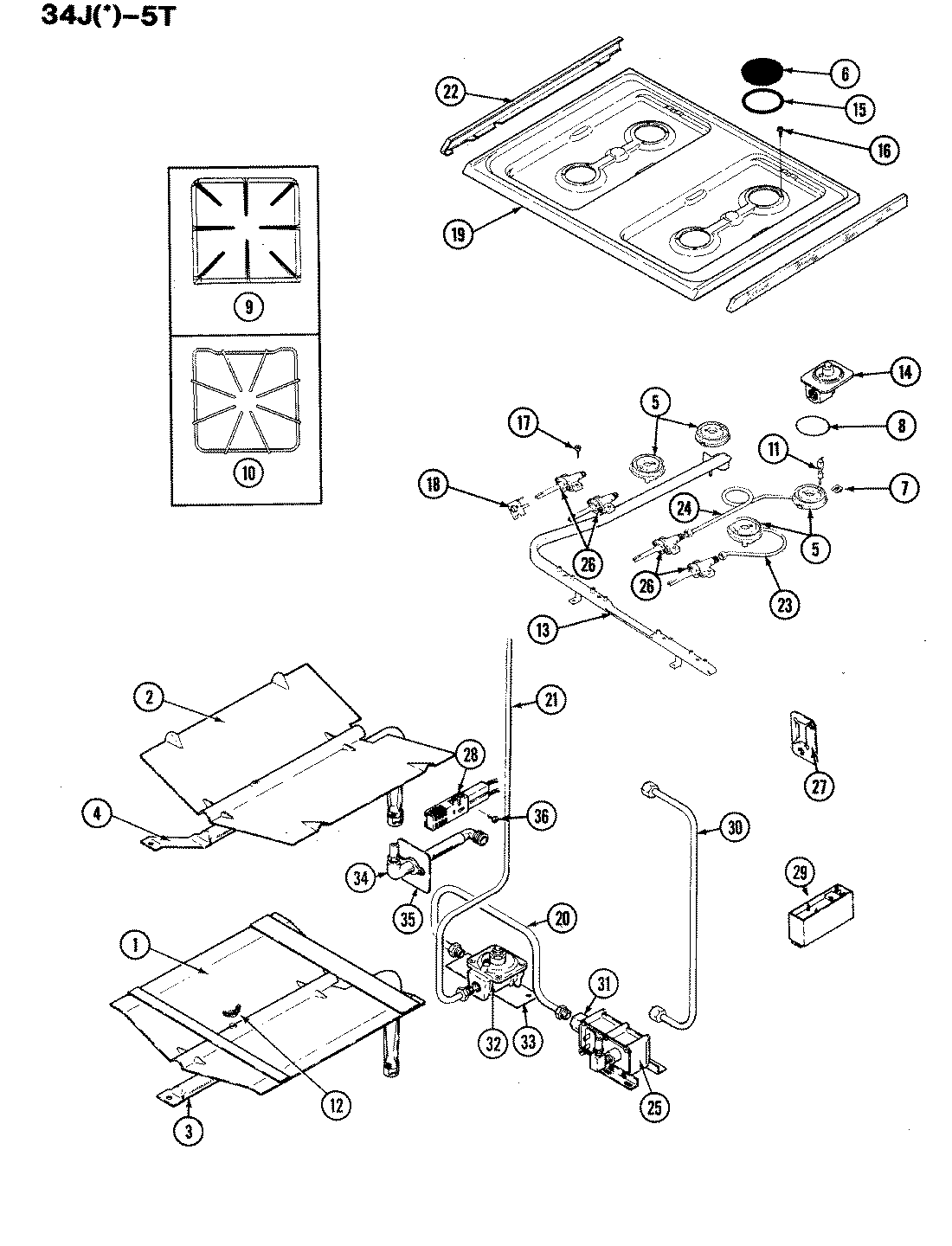

34JA-5TKVW 04 – TOP ASSEMBLY/GAS CONTROLS

Products

Position	Product
1	MAY 3601W184-15
1	MAY 3601W184-19
2	MAY 3601F099-45
3	MAY 7505P100-60
3	MAY 3403D027-45
3	MAY 3403A015-45
4	MAY 3403A016-45
4	MAY 3403D028-45
4	MAY 7505P101-60
5	MAY 7505P187-60
5	MAY 7509P034-60
5	MAY 7505A155-60
6	MAY 7504P005-60
7	MAY 7112P072-60
8	MAY 7201P037-60
9	MAY 2003W023-00
9	MAY 7518P008-60
10	MAY 2003F029-00
11	MAY 7432P053-60
12	NUT, WING
13	MAY 7513P093-60
13	MAY 7513P104-60
14	MAY 7510P040-60
14	MAY 7510P048-60
15	MAY 2014F001-90
16	MAY 7101P256-60
17	MAY 7101P043-60
17	MAY 3411F006-34
17	MAY 7101P296-60
17	MAY 3411F006-35
18	MAY 7403P258-60
18	WP7403P287-60 Whirlpool Igniter Switch
18	WP7403P190-60 Whirlpool Switch
18	MAY 7403P216-60
18	MAY 7403P282-60
19	MAY 2001F063-84
20	MAY 7506P075-60
21	MAY 7506P101-60
22	MAY 7746P025-60
22	MAY 7103P064-60
22	WP7101P072-60 Whirlpool Screw
22	MAY 7746P026-60
23	MAY 7506P076-60
24	MAY 7506P077-60
25	MAY 7501P095-60
25	MAY 7501P034-60
26	MAY 7502P100-60
26	MAY 7502P229-60
26	MAY 7502P220-60
26	MAY 5110P824-60
26	MAY 5110P825-60
27	MAY 3801F179-45
28	MAY 7432P052-60
28	MAY 7432P067-60
29	MAY 7431P017-60
30	MAY 3414F057-44
31	MAY 1555251
32	MAY 7510P028-60
33	MAY 3801F191-45
34	MAY 7507P028-60
35	MAY 3605F019-45
36	SCREW (10-24X5/16-NI)
37	MAY 5415A014-60
