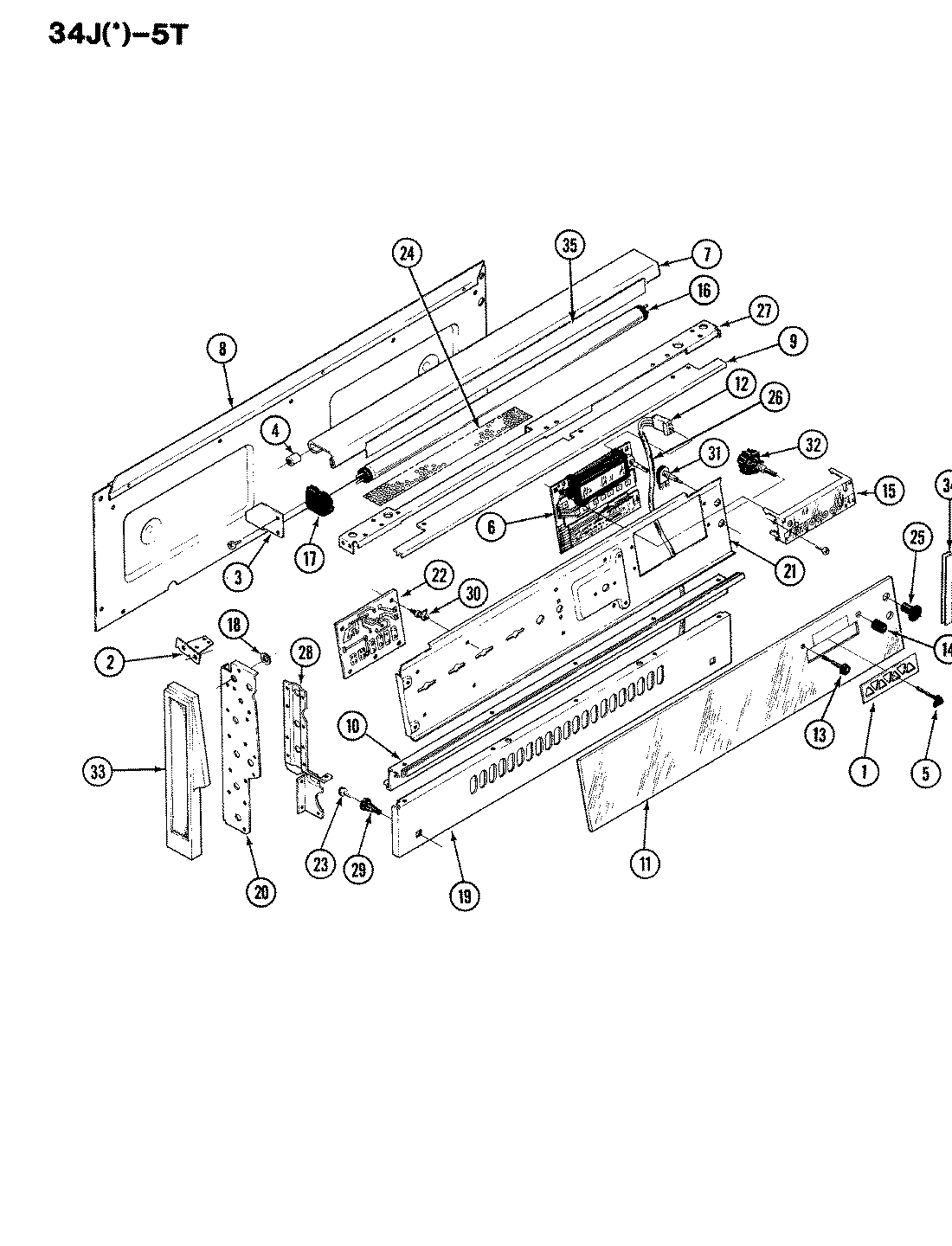

34JA-5TKXW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7201P052-60
1	MAY 7740P010-60
1	MAY 7412P005-60
1	MAY 7740P016-60
2	MAY 3801F109-34
2	MAY 3801F002-34
3	MAY 3801F006-51
4	MAY 1089206
5	MAY 7711P335-60
5	MAY 7711P461-60
6	MAY 7601P163-60
6	MAY 7601P101-60
6	MAY 7601P181-60
6	MAY 7601P155-60
7	MAY 7724P010-60
8	WP59002061 Whirlpool Microwave Screw
8	MAY 4005F368-80
8	MAY 4005F100-80
8	MAY 4005F155-80
9	MAY 7706P166-60
9	MAY 7101P058-60
10	MAY 7706P097-60
11	MAY 7902P174-60
12	MAY 5170P007-60
13	MAY 7711P171-60
13	MAY 7711P452-60
14	MAY 7711P431-60
14	MAY 7711P172-60
15	MAY 7730P005-60
16	MAY 7407P004-60
17	MAY 7101P061-60
17	MAY 7408P002-60
18	WP4159193 Whirlpool Screw
19	MAY 2620W018-23
20	MAY 3605F008-80
20	MAY 3605F006-80
21	MAY 7430P004-60
21	MAY 7430P009-60
21	MAY 3605F171-80
21	MAY 7430P007-60
21	MAY 3605F152-80
22	MAY 7428P006-60
23	SCREW
24	MAY 3604F079-80
25	MAY 7214P007-60
26	MAY 7214P005-60
27	MAY 3807F215-80
28	MAY 3807F349-51
28	MAY 3807F010-80
29	MAY 7105P002-60
30	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
30	MAY 8004P020-60
31	MAY 7403P179-60
32	MAY 7403P104-60
33	MAY 7726P029-60
33	MAY 7726P030-60
34	MAY 7720P061-60
35	MAY 7728P053-60
