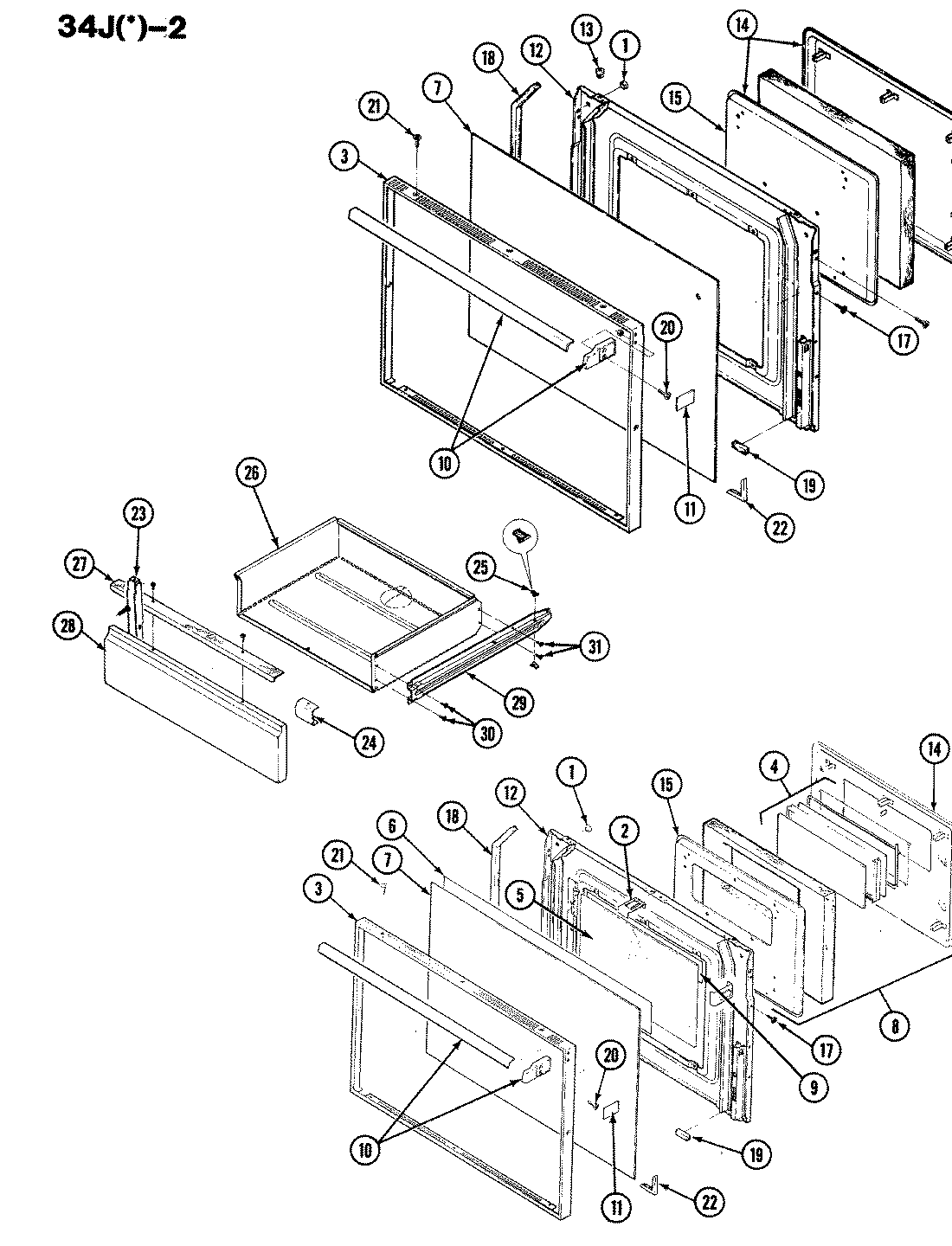

| 1 | MAY 8003P002-60 |
| 1 | MAY 8003P009-60 |
| 2 | CLIP, DOOR |
| 3 | MAY 7706P243-60 |
| 4 | MAY 5700A091-60 |
| 5 | MAY 7902P097-60 |
| 6 | MAY 8270P078-60 |
| 7 | MAY 7902P276-60 |
| 8 | MAY 2410A041-19 |
| 8 | MAY 2410A041-15 |
| 9 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 10 | MAY 7701P047-60 |
| 11 | MAY 7728P012-60 |
| 11 | MAY 7728P068-60 |
| 12 | MAY 2402W128-15 |
| 12 | MAY 8114P274-60 |
| 12 | MAY 2402W173-19 |
| 12 | MAY 2402W173-15 |
| 13 | WP7103P114-60 Whirlpool Snap Nut |
| 14 | MAY 2410W041-19 |
| 14 | MAY 2410W041-15 |
| 15 | MAY 2410F016-51 |
| 16 | MAY 3804F022-45 |
| 17 | MAY 7107P017-60 |
| 18 | MAY 7208P002-60 |
| 19 | MAY 7208P011-60 |
| 20 | MAY 7101P123-60 |
| 21 | WP7101P126-60 Whirlpool Screw |
| 22 | MAY 8010P045-60 |
| 23 | MAY 3802F044-51 |
| 24 | MAY 3801F115-51 |
| 25 | MAY 8016P009-60 |
| 25 | MAY 8016P004-60 |
| 26 | MAY 3405F008-80 |
| 27 | WP2411F013-71 Whirlpool Door Handle |
| 28 | MAY 2416F018-71 |
| 29 | MAY 3406F026-80 |
| 29 | MAY 3406F020-80 |
| 30 | MAY 7101P272-60 |
| 31 | MAY 7101P061-60 |
