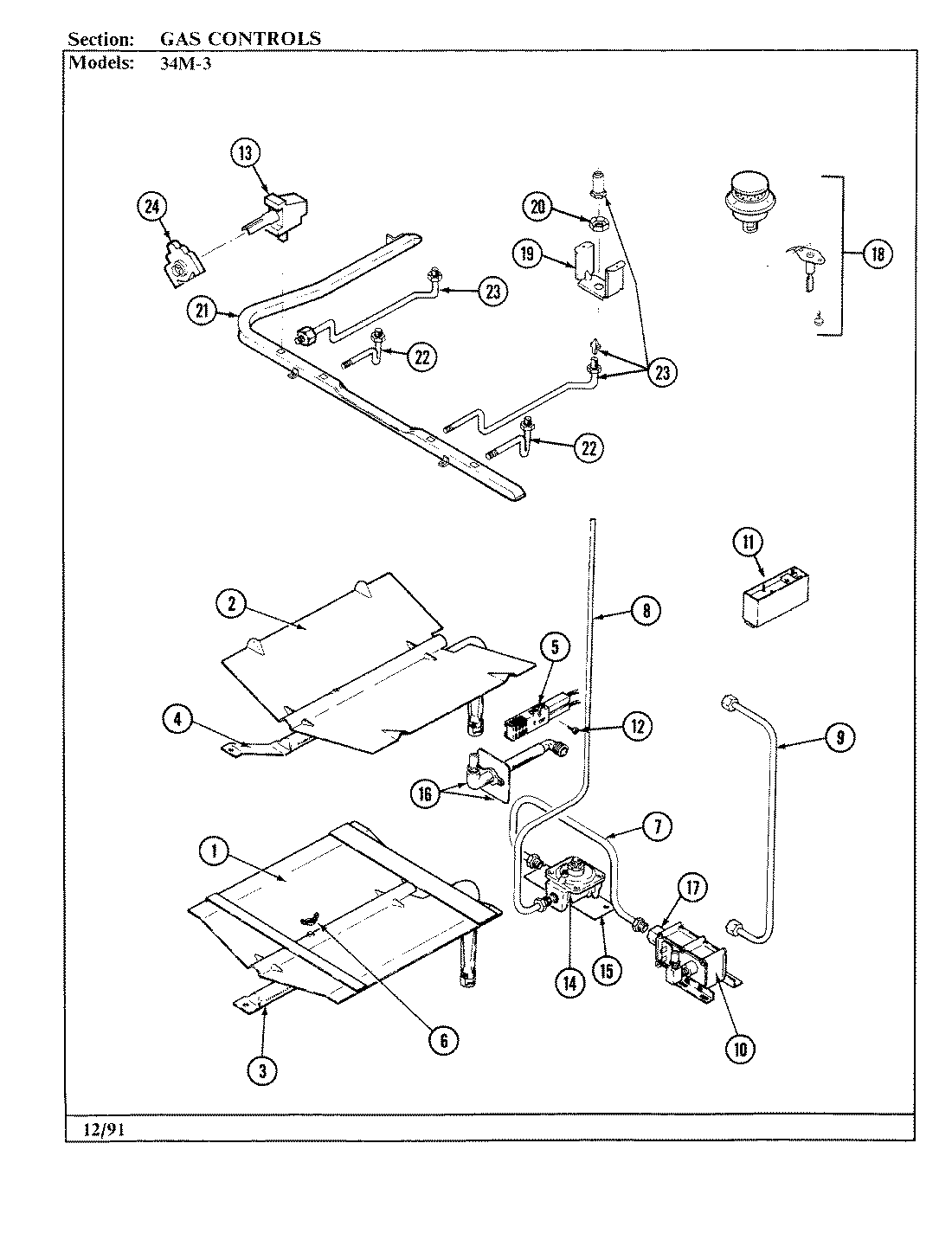

34MA-3TKXW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 3601W184-19
2	MAY 3601F181-45
3	MAY 3403D027-45
4	MAY 3403D028-45
5	MAY 4005F363-45
5	MAY 7432P067-60
6	NUT, WING
7	MAY 7506P075-60
8	MAY 7506P101-60
9	MAY 3414F057-44
10	MAY 7501P095-60
11	MAY 3801F270-45
11	MAY 7431P021-60
11	MAY 3801F303-45
12	SCREW (10-24X5/16-NI)
13	MAY 7502P220-60
13	MAY 7101P296-60
14	MAY 7510P048-60
15	MAY 3801F191-45
16	MAY 7507P067-60
16	WP3387230 Whirlpool Screw
17	MAY 1555251
18	MAY 5111A361-60
18	MAY 5111A360-60
18	MAY 7432P072-60
18	MAY 3412D015-09
18	MAY 3412D016-09
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
18	MAY 7118P010-60
18	MAY 7201P050-60
19	MAY 3807F378-45
20	MAY 7118P004-60
20	MAY 7103P119-60
21	MAY 7513P104-60
22	MAY 7507P071-60
22	MAY 7507P073-60
23	MAY 7507P092-60
23	MAY 7507P069-60
24	WP7403P287-60 Whirlpool Igniter Switch
