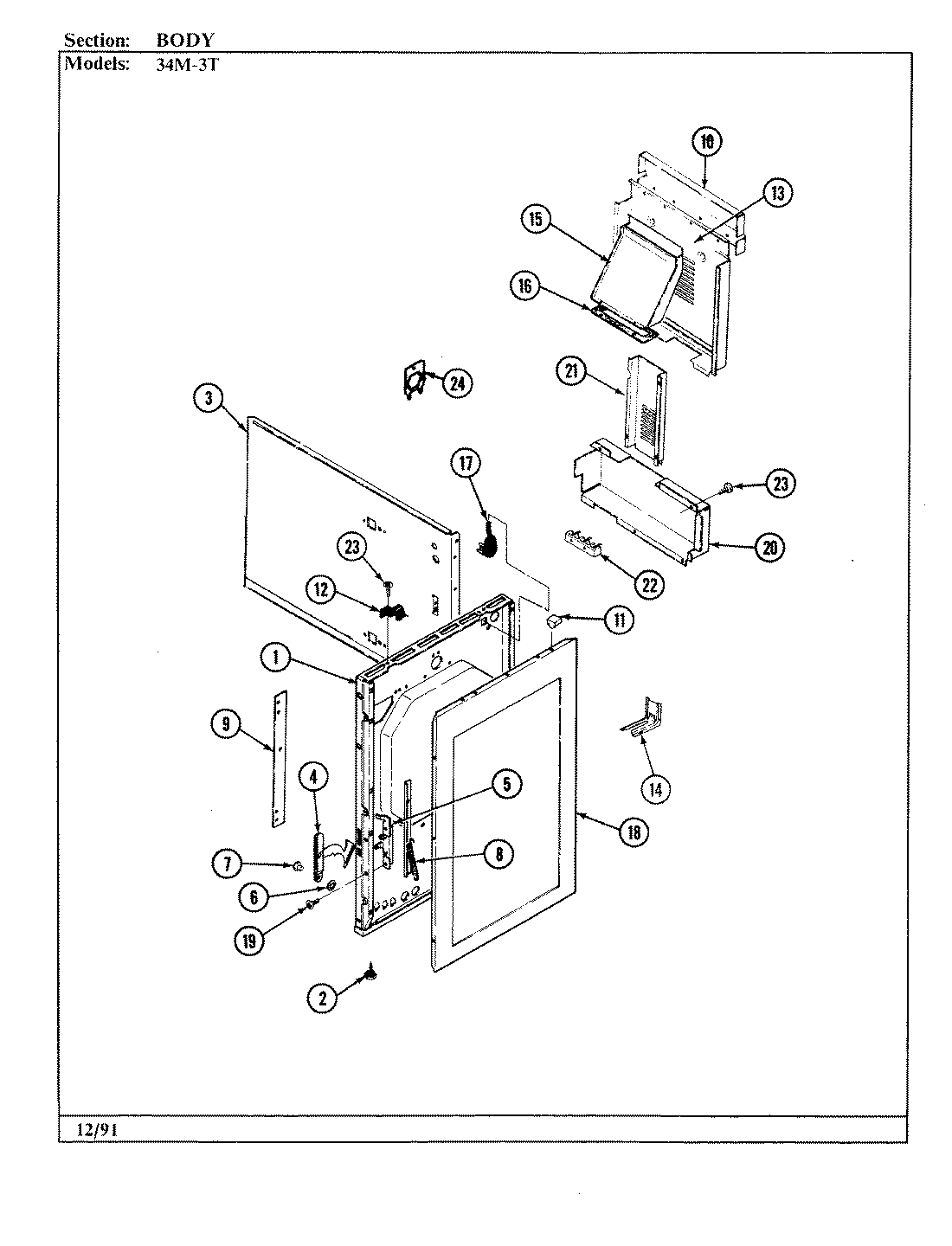

34MA-3TKXW-ON 01 – BODY
Written by
in
34MA-3TKXW-ON 01 – BODY
Products
Position
Product
1
SCREW, HINGE
1
MAY 4009W074-80
1
MAY 7103P045-60
2
MAY Y7101P25460
3
MAY 8008P014-60
3
MAY 4002F165-80
3
MAY 8008P012-60
4
MAY 3420A033-34
5
MAY 8016P008-60
5
MAY 3418A030-34
5
MAY 3418A029-34
6
MAY 7112P019-60
8
WP7803P058-60 Whirlpool Spring
9
MAY 3601F214-51
10
MAY 3601F107-51
11
MAY 8003P011-60
12
MAY 7112P073-60
13
MAY 3601F112-51
14
MAY 7101P289-60
14
MAY 3801F218-51
15
MAY 4006W026-19
16
MAY 7201P013-60
17
MAY 7402P024-60
17
MAY 7401P018-60
17
BUSHING, SNAP
18
MAY 2618F073-74
18
MAY 7101P058-60
19
WP4159193 Whirlpool Screw
20
MAY 4005F396-80
21
MAY 3818F032-80
22
MAY 7401P015-60
22
MAY 7101P079-60
23
MAY 7101P061-60
24
MAY 5185D254-60
24
MAY 5125A134-60
24
MAY 5120A008-60
24
MAY 3801F021-45
24
MAY 5195D068-60
←
