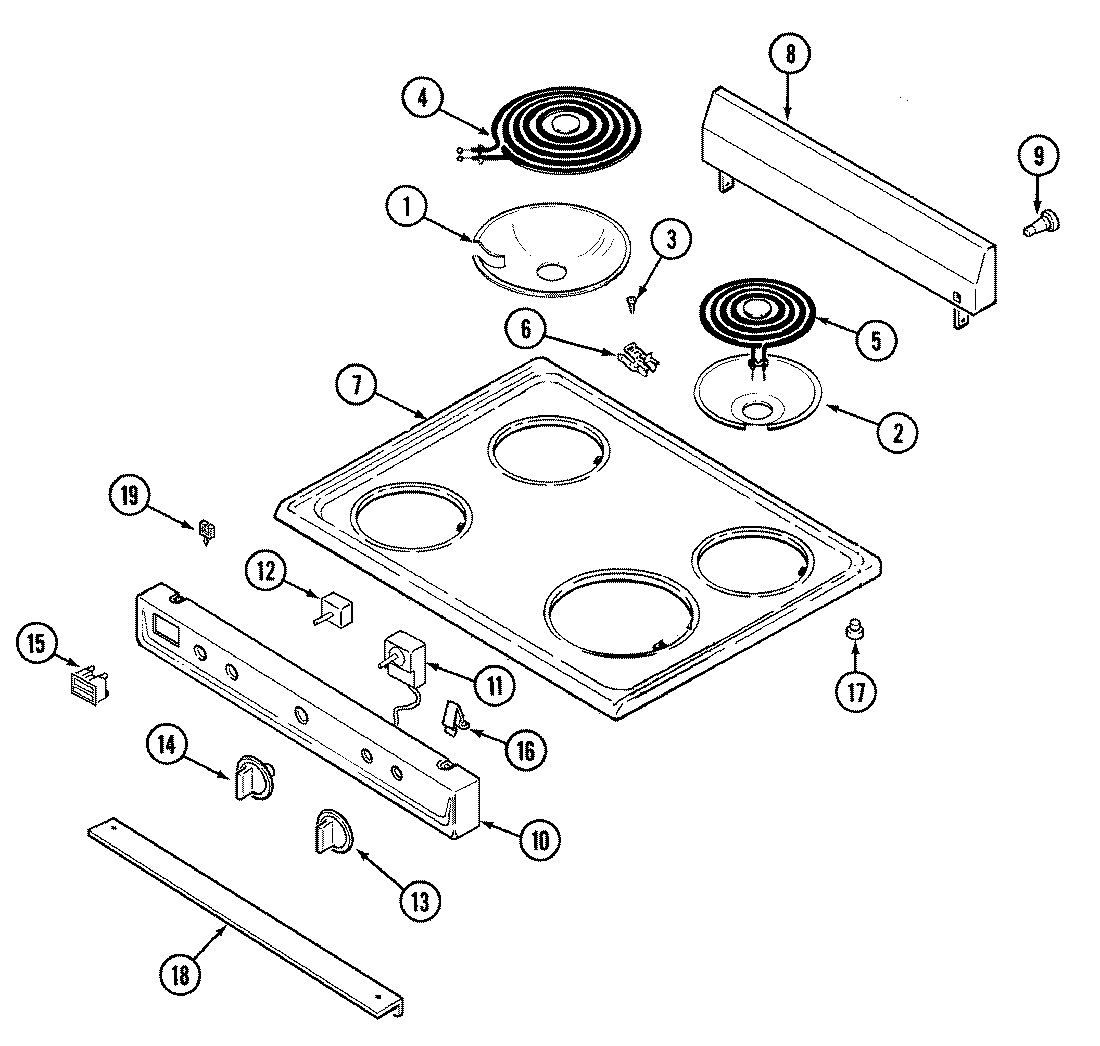

3500PPW-D 04 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7725P047-60
2	MAY 7725P007-60
2	MAY 7725P008-60
3	MAY 7118P013-60
4	WPY04000035 Whirlpool Surface Element
5	WPY04000036 Whirlpool Surface Element
6	MAY 1430306K
7	MAY 3802F085-80
7	TOP, MAIN (WHT)
8	MAY 3801F242-51
8	MAY 3801F243-51
8	MAY 2601F360-71
9	SPACER, HINGE (MAIN TOP)
9	SCREW
10	SCREW (8BX3/8-NI)
10	BRACKET, CNTL. PANEL
10	MAY 74003401
10	MAY 2614F030-09
11	MAY 7404P085-60
11	MAY 74003267
12	MAY 7101P280-60
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12	WP7403P239-60 Whirlpool Oven Switch
13	WP74003280 Whirlpool Knob Assembly
14	WP7737P030-60 Whirlpool Knob Switch
15	MAY 7407P015-60
16	MAY 7112P087-60
17	MAY 8010P048-60
18	SUPPORT UPPER FRONT PANEL
19	MAY 7112P029-60
20	MAY 5170D130-60
20	MAY 74001587
21	MAY 8113P023-60
21	MAY 16000329
