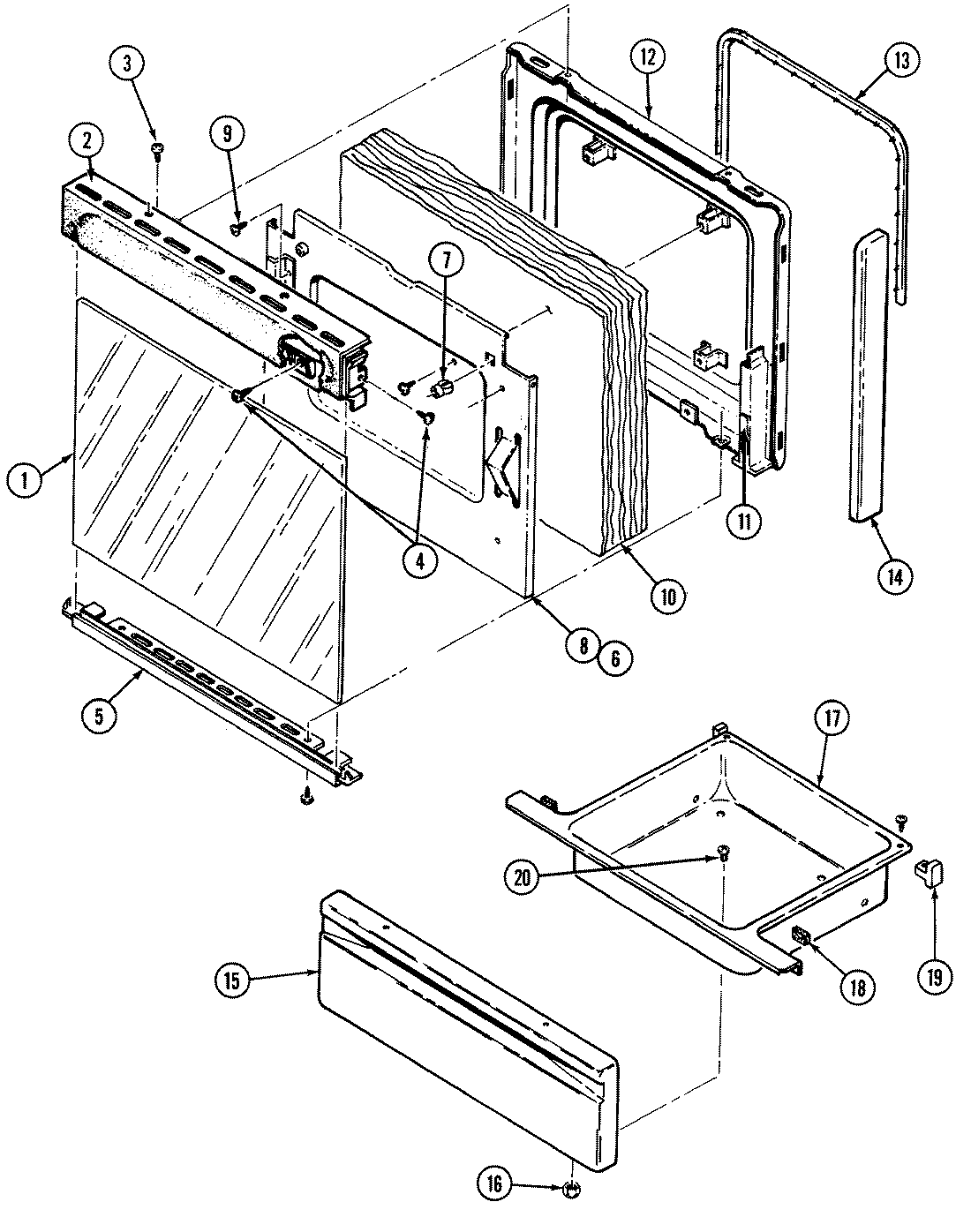

3500SPA 02 – DOOR/DRAWER 3500SPx – Aparts

3500SPA 02 – DOOR/DRAWER 3500SPx

Products

Position	Product
1	MAY 7902P325-60
2	MAY 7701P096-60
3	WP98008545 Whirlpool Screw
5	MAY 7744P078-60
6	MAY 8010P085-60
7	MAY 8010P075-60
8	MAY 3601F218-45
9	MAY 7101P290-60
10	MAY 4804F011-60
11	MAY 7208P011-60
12	MAY 2402W187-19
13	MAY 7212P034-60
14	MAY 7744P055-60
15	WP4159193 Whirlpool Screw
15	MAY 2416F038-64
16	WPW10131078 Whirlpool Nut Assembly
17	MAY 3405F014-80
18	MAY 8010P086-60
19	WP8004P026-60 Whirlpool Support
20	MAY 7101P291-60
