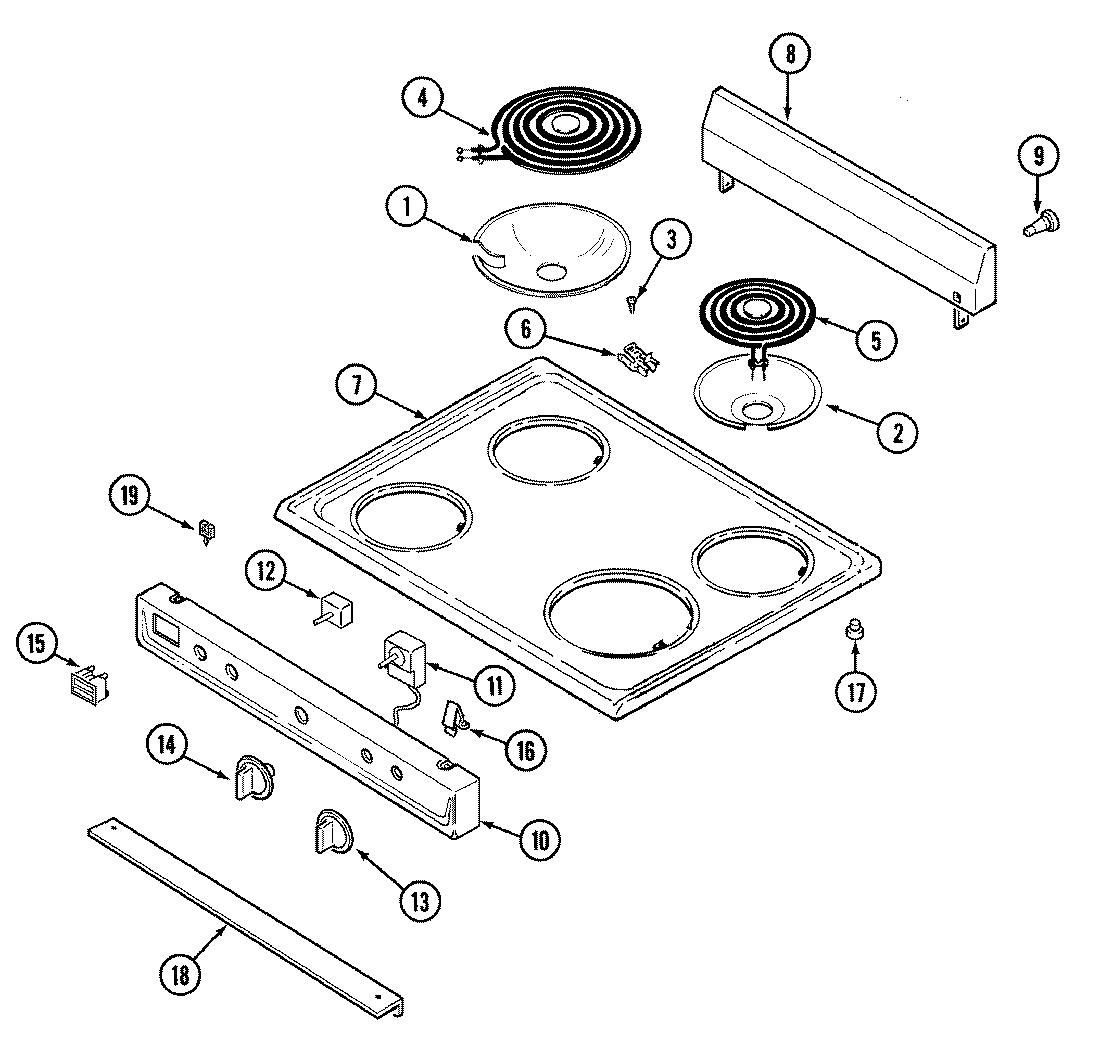

3500SPA 04 – TOP ASSEMBLY/CONTROL PANEL

Products

Position	Product
1	MAY 7725P009-60
2	MAY 7725P008-60
2	MAY 7725P007-60
3	MAY 7118P013-60
4	MAY 7406P040-60
5	MAY 7406P038-60
6	MAY 1430306K
7	MAY 2002W074-84
8	MAY 3801F242-51
8	MAY 3801F243-51
8	MAY 2601F360-74
9	SPACER, HINGE (MAIN TOP)
9	MAY 7101P290-60
10	MAY 2614F030-09
10	BRACKET, CNTL. PANEL
11	MAY 7404P085-60
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12	WP7403P239-60 Whirlpool Oven Switch
12	MAY 7101P280-60
13	WP74003280 Whirlpool Knob Assembly
14	WP7737P030-60 Whirlpool Knob Switch
15	MAY 7407P015-60
16	MAY 7112P087-60
17	MAY 8010P048-60
18	MAY 3802F085-80
18	MAY 7118P015-60
19	MAY 7112P029-60
20	MAY 5170D130-60
20	MAY 5175D053-60
21	MAY 8113P001-60
22	MAY 16000329
