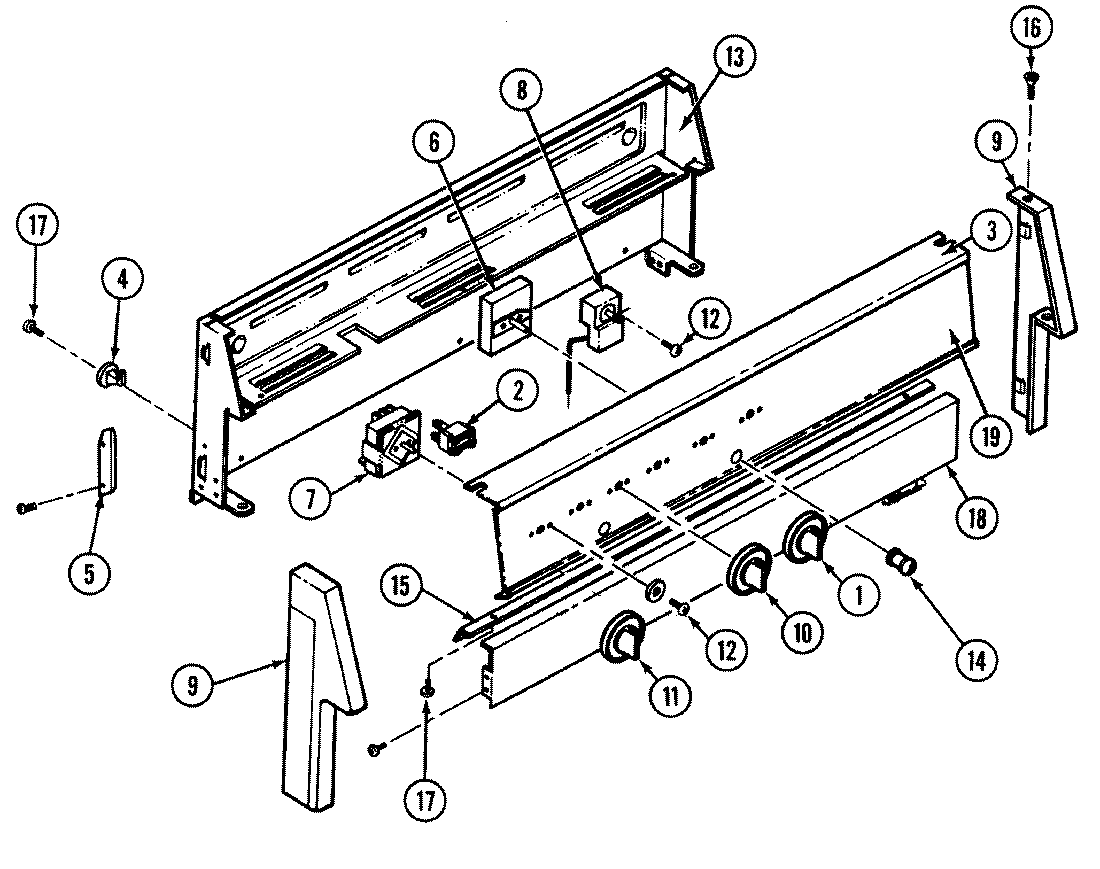

3510KPA 02 – CONTROL PANEL-BACKGUARD

Products

Position	Product
1	MAY 7735P031-60
2	MAY 7407P081-60
3	MAY 2601F406-84
4	SPACER, HINGE (MAIN TOP)
5	MAY 3807F435-45
5	MAY 3807F436-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	MAY 7404P081-60
9	MAY 7726P070-60
9	MAY 7101P032-60
9	MAY 7726P069-60
10	MAY 7739P037-60
11	WP7737P030-60 Whirlpool Knob Switch
12	SCREW
13	MAY 4001F085-51
14	W11690159 Whirlpool Handle
15	MAY 3604F201-80
16	WP98008545 Whirlpool Screw
17	MAY 7118P015-60
18	MAY 2612F036-84
21	MAY 5125A316-60
21	MAY 5170D119-60
