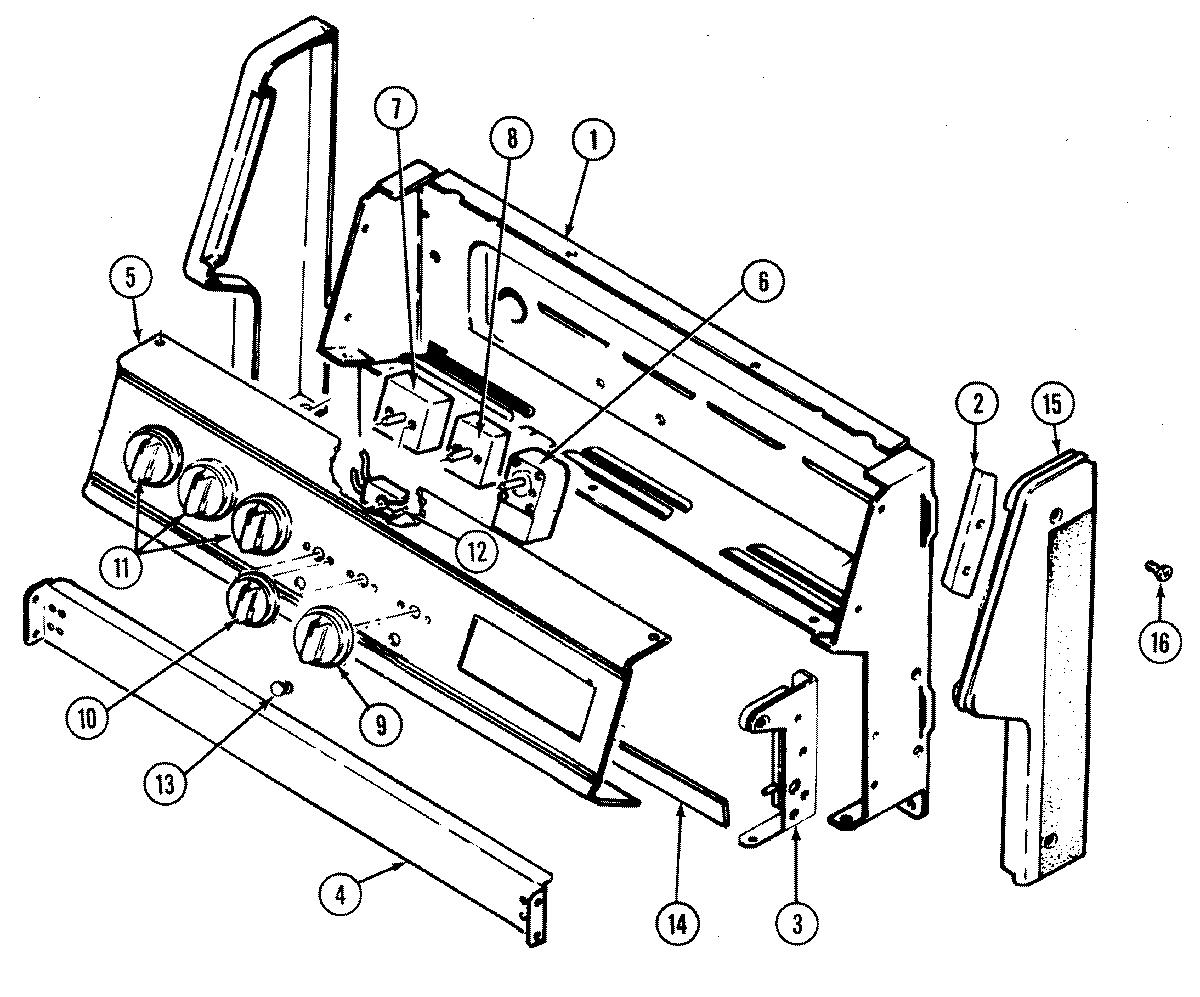

3510KRA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
2	MAY 3807F435-45
2	MAY 3807F436-45
2	MAY 7118P015-60
3	MAY 3418A088-34
3	MAY 3418A087-34
4	MAY 3802F087-51
5	MAY 2601F414-74
5	MAY 7118P013-60
5	MAY 2601F406-74
6	MAY 7404P081-60
7	SCREW
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	WP7403P255-60 Whirlpool Selector Switch
9	MAY 7735P031-60
10	MAY 7739P037-60
11	WP7737P030-60 Whirlpool Knob Switch
12	W10852510 Whirlpool Indicator Light
12	MAY 7407P081-60
13	W11690131 Whirlpool Light Lens
13	W11690159 Whirlpool Handle
14	MAY 3604F201-80
15	MAY 7726P052-60
15	MAY 7726P051-60
15	WP98008545 Whirlpool Screw
16	MAY 7101P317-60
16	MAY 5125A316-60
16	MAY 5170D119-60
16	MAY 5175D049-60
17	MAY 8113P023-60
17	MAY 16000329
