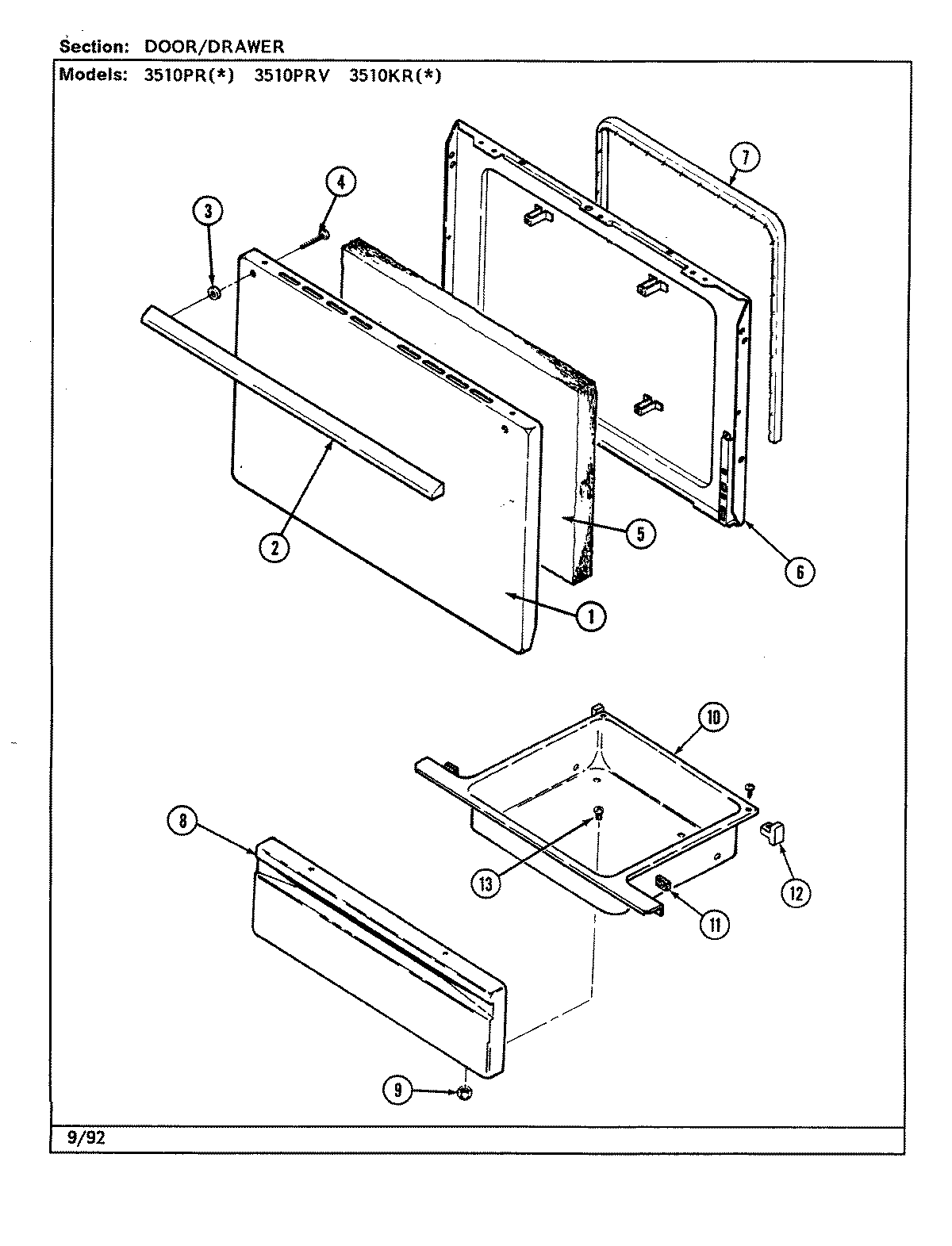

3510PRV 03 – DOOR/DRAWER

3510PRV 03 – DOOR/DRAWER

Written by

in

3510PRV 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 3601F235-80
1PANEL, DOOR (WHT)
1CLIP, DOOR
2WP2411F013-71 Whirlpool Door Handle
3MAY 8010P084-60
4MAY 7101P080-60
5MAY 7002P156-60
6MAY 2402W201-19
7MAY 7101P290-60
7MAY 7212P034-60
8WP4159193 Whirlpool Screw
8MAY 2416F039-62
9WPW10131078 Whirlpool Nut Assembly
10MAY 3405F015-80
11MAY 8010P086-60
12MAY 7101P329-60
12WP8004P026-60 Whirlpool Support
13MAY 7101P291-60
