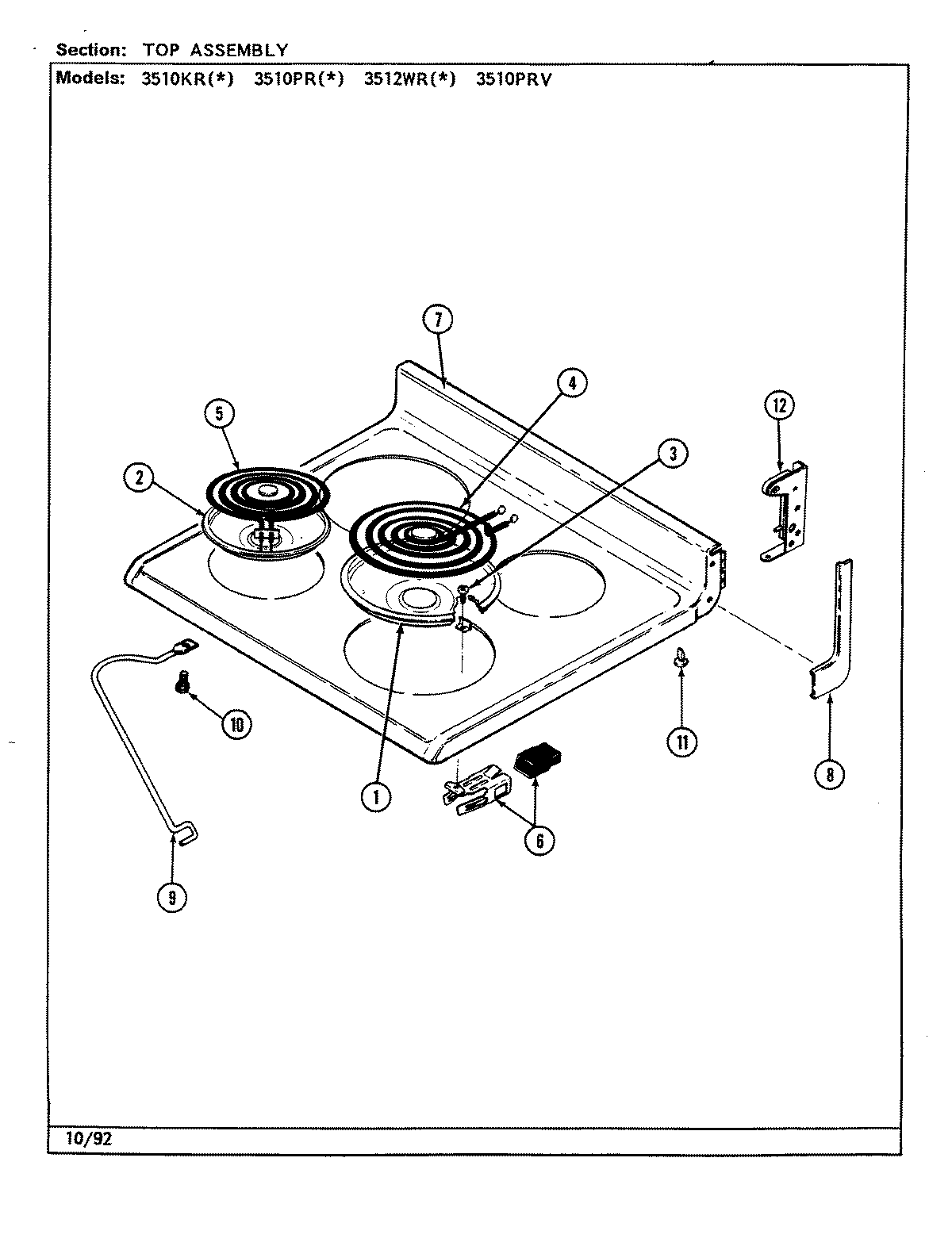

3510PRV 05 – TOP ASSEMBLY
Written by
in
3510PRV 05 – TOP ASSEMBLY
Products
Position
Product
1
MAY 7725P008-60
1
WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2
MAY 7725P009-60
3
WPY04000036 Whirlpool Surface Element
4
WPY04000035 Whirlpool Surface Element
5
MAY 1430306K
6
MAY 7118P013-60
7
MAY 2002W079-81
8
MAY 7103P129-60
8
MAY 7746P032-60
8
MAY 7746P033-60
9
MAY 8016P013-60
10
MAY 7809P014-60
11
MAY 7101P141-60
12
MAY 7118P015-60
12
MAY 5175D049-60
12
MAY 3418A088-34
12
MAY 3418A087-34
13
MAY 8113P023-60
←
