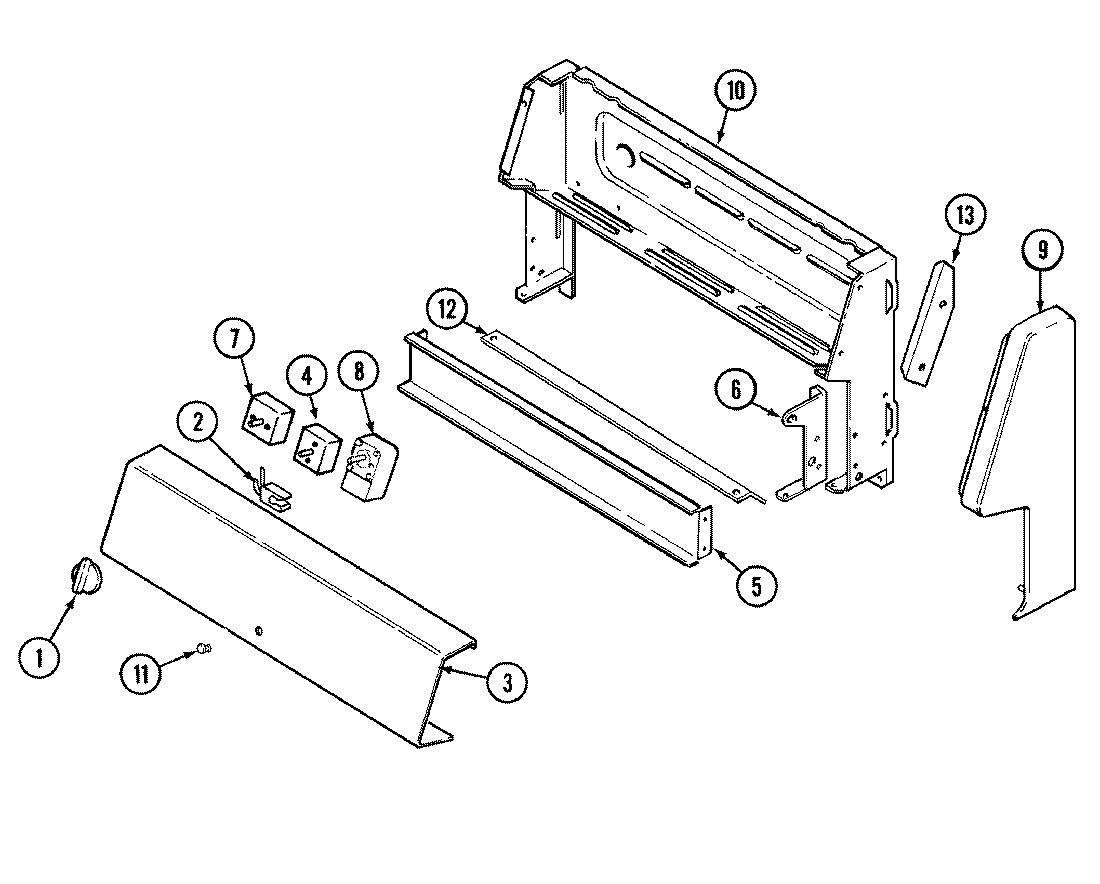

3520SRA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7731P082-60
2	MAY 7407P081-60
2	W10852510 Whirlpool Indicator Light
3	MAY 4876S044-59
4	WP7403P255-60 Whirlpool Selector Switch
5	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
5	MAY 3802F087-51
6	MAY 3418A088-34
6	MAY 3418A087-34
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	WP7404P105-60 Whirlpool Thermostat
8	SCREW
9	MAY 7726P052-60
9	MAY 7726P051-60
10	MAY 4001F091-51
11	W11690131 Whirlpool Light Lens
11	W11690159 Whirlpool Handle
12	MAY 3604F201-80
13	MAY 3807F450-45
13	MAY 3807F449-45
13	SCREW (8BX3/8-NI)
14	MAY 5170D119-60
14	MAY 5175D049-60
15	MAY 8113P023-60
16	MAY 16000329
