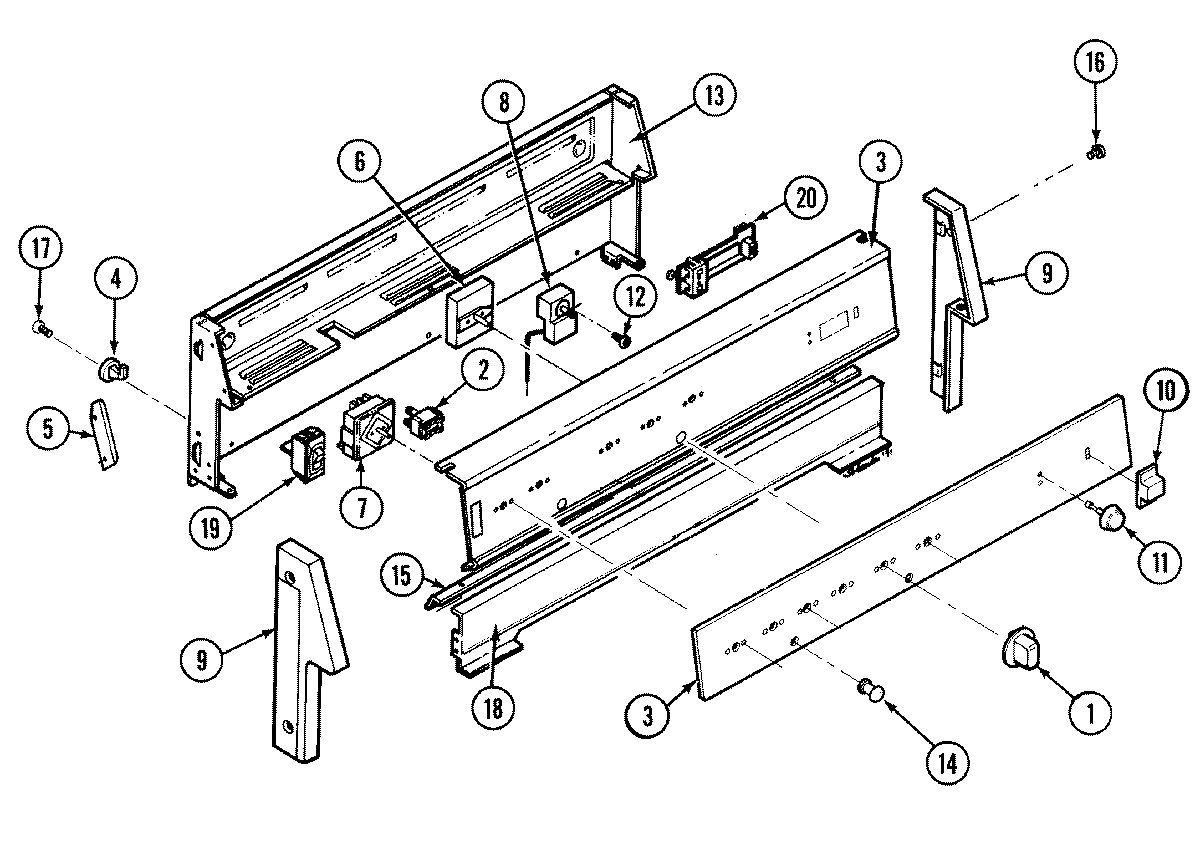

3521WPV 02 – CONTROL PANEL

3521WPV 02 – CONTROL PANEL

Written by

in

3521WPV 02 – CONTROL PANEL

Products

PositionProduct
1MAY 7731P081-60
2MAY 7407P081-60
3MAY 4876S046-59
4SPACER, HINGE (MAIN TOP)
5MAY 3807F435-45
5MAY 3807F436-45
6WP7403P255-60 Whirlpool Selector Switch
7WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP7403P239-60 Whirlpool Oven Switch
8MAY 7404P081-60
9MAY 7726P053-60
9MAY 7118P018-60
9MAY 7726P054-60
10MAY 3801F296-51
11MAY 7711P473-60
12SCREW
13MAY 4001F085-51
14W11690159 Whirlpool Handle
15MAY 3604F201-80
16WP98008545 Whirlpool Screw
17MAY 7118P015-60
18MAY 2612F036-81
19MAY 7403P200-60
20MAY 7101P293-60
20MAY 7602P104-60
21MAY 5170D118-60
21MAY 7711P472-60
