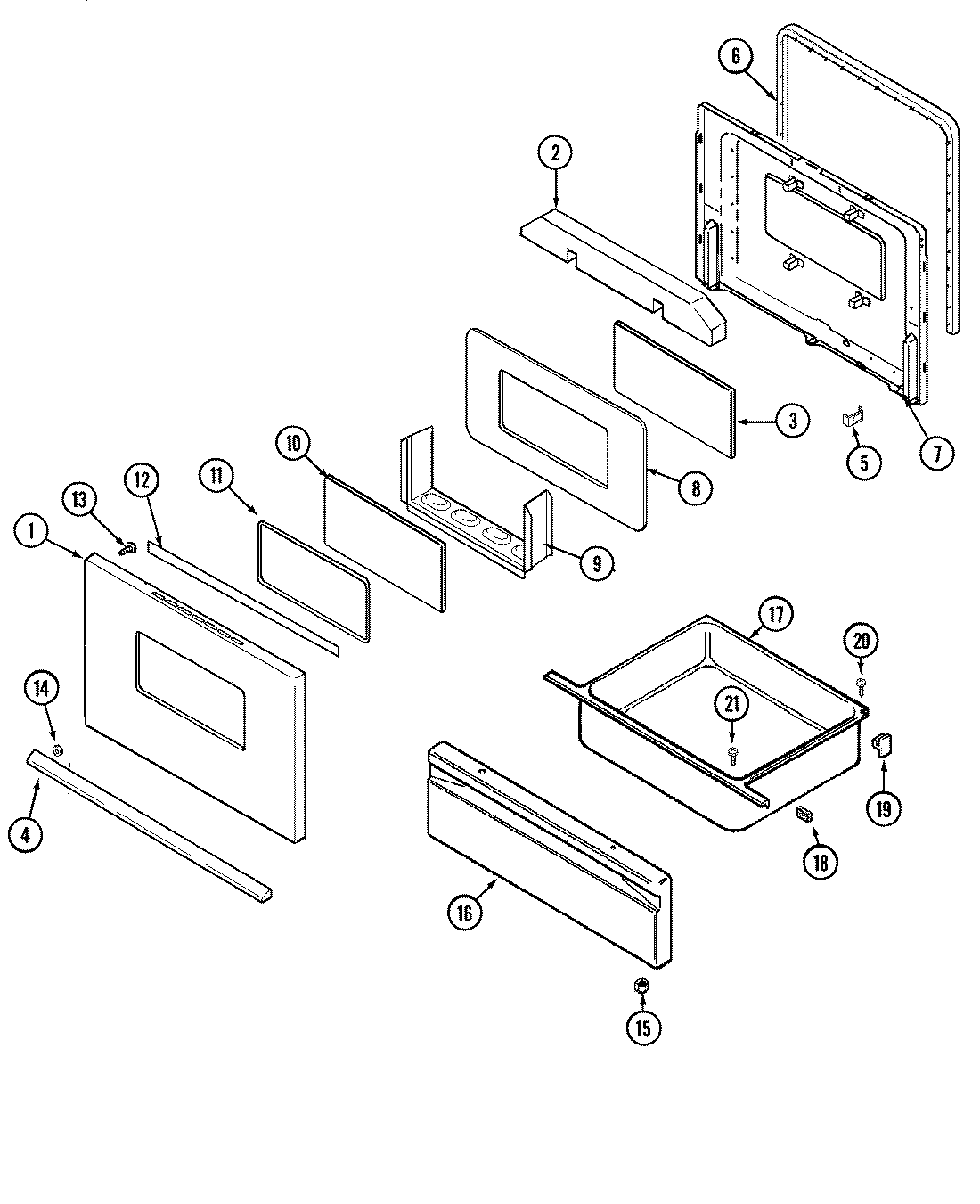

3521WRA 04 – DOOR/DRAWER (SERIES 45)

3521WRA 04 – DOOR/DRAWER (SERIES 45)

Written by

in

3521WRA 04 – DOOR/DRAWER (SERIES 45)

Products

PositionProduct
1MAY 2401F121-74
2MAY 74002458
3MAY 74002459
4WP2411F013-70 Whirlpool Door Handle
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74002785
7MAY 74003248
8MAY 7101P209-60
8MAY 74002461
9MAY 74002462
10MAY 74002463
11MAY 7201P017-60
12TAPE, FOIL (3“ WIDE)
13MAY 7101P080-60
14MAY 8010P084-60
15WPW10131078 Whirlpool Nut Assembly
16MAY 2416F039-64
17MAY 3405F019-80
17MAY 74003618
18MAY 8010P086-60
19MAY 74003566
19WP488130 Whirlpool Air Conditioner Nut
19WP8004P026-60 Whirlpool Support
20SCREW
20NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21WP7101P072-60 Whirlpool Screw
