3521WRW 03 – DOOR/DRAWER (SERIES 01)

3521WRW 03 – DOOR/DRAWER (SERIES 01)

Written by

in

3521WRW 03 – DOOR/DRAWER (SERIES 01)

Products

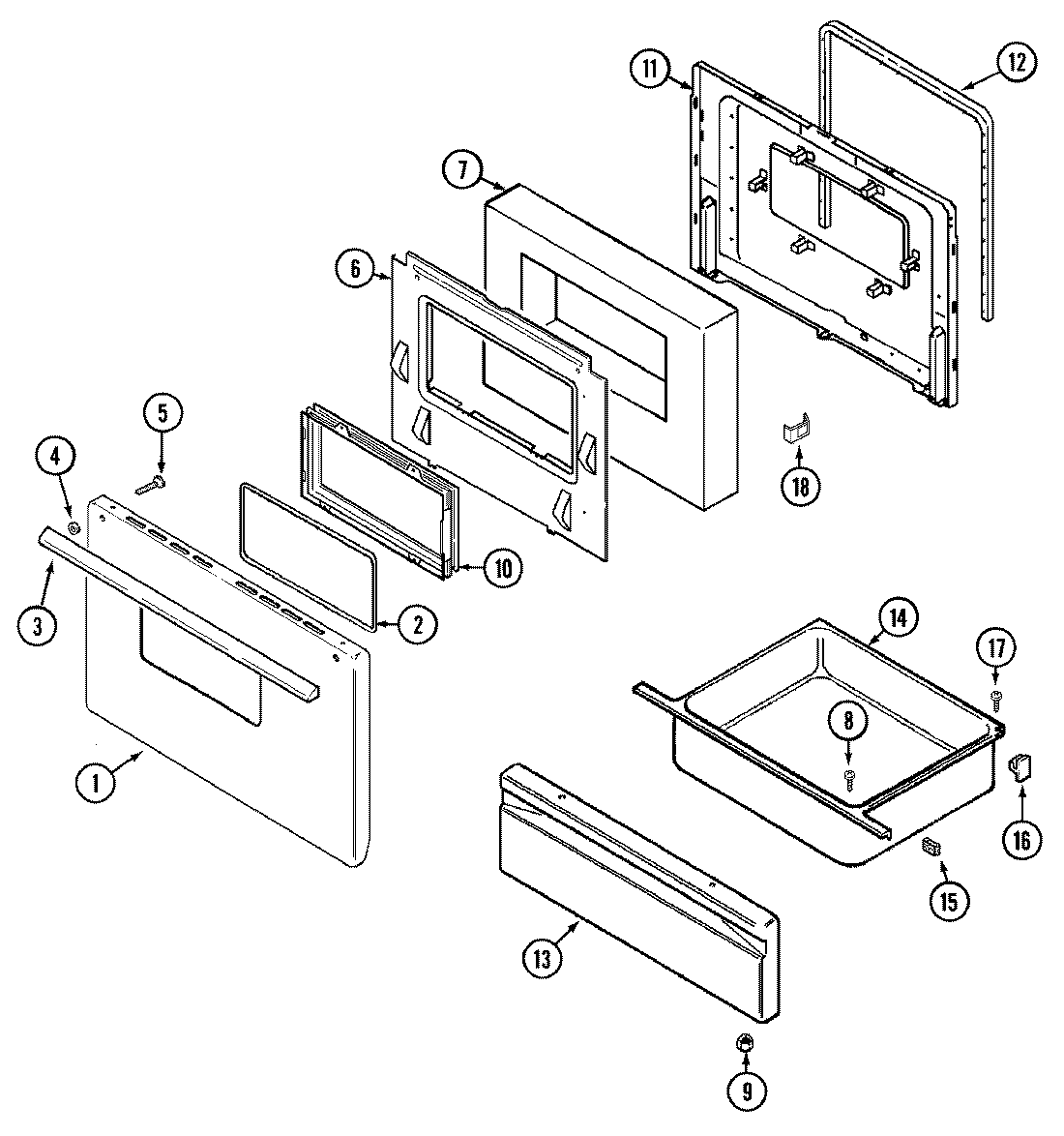

PositionProduct
1MAY 2401F097-71
2MAY 7201P017-60
3MAY 7701P030-60
3WP2411F013-70 Whirlpool Door Handle
4MAY 8010P084-60
5MAY 7101P080-60
6MAY 74002461
7MAY 4804F050-60
8WP7101P072-60 Whirlpool Screw
9WPW10131078 Whirlpool Nut Assembly
10MAY 7907P017-60
11MAY 2402W193-19
11MAY 74002460
11MAY 7101P290-60
12MAY 7212P034-60
13MAY 2416F039-62
14WP4159193 Whirlpool Screw
14MAY 3405F015-80
15MAY 8010P086-60
16WP8004P026-60 Whirlpool Support
17MAY 7101P291-60
18CLIP, DOOR
