3521XRW 03 – DOOR/DRAWER (SERIES 01)

3521XRW 03 – DOOR/DRAWER (SERIES 01)

Written by

in

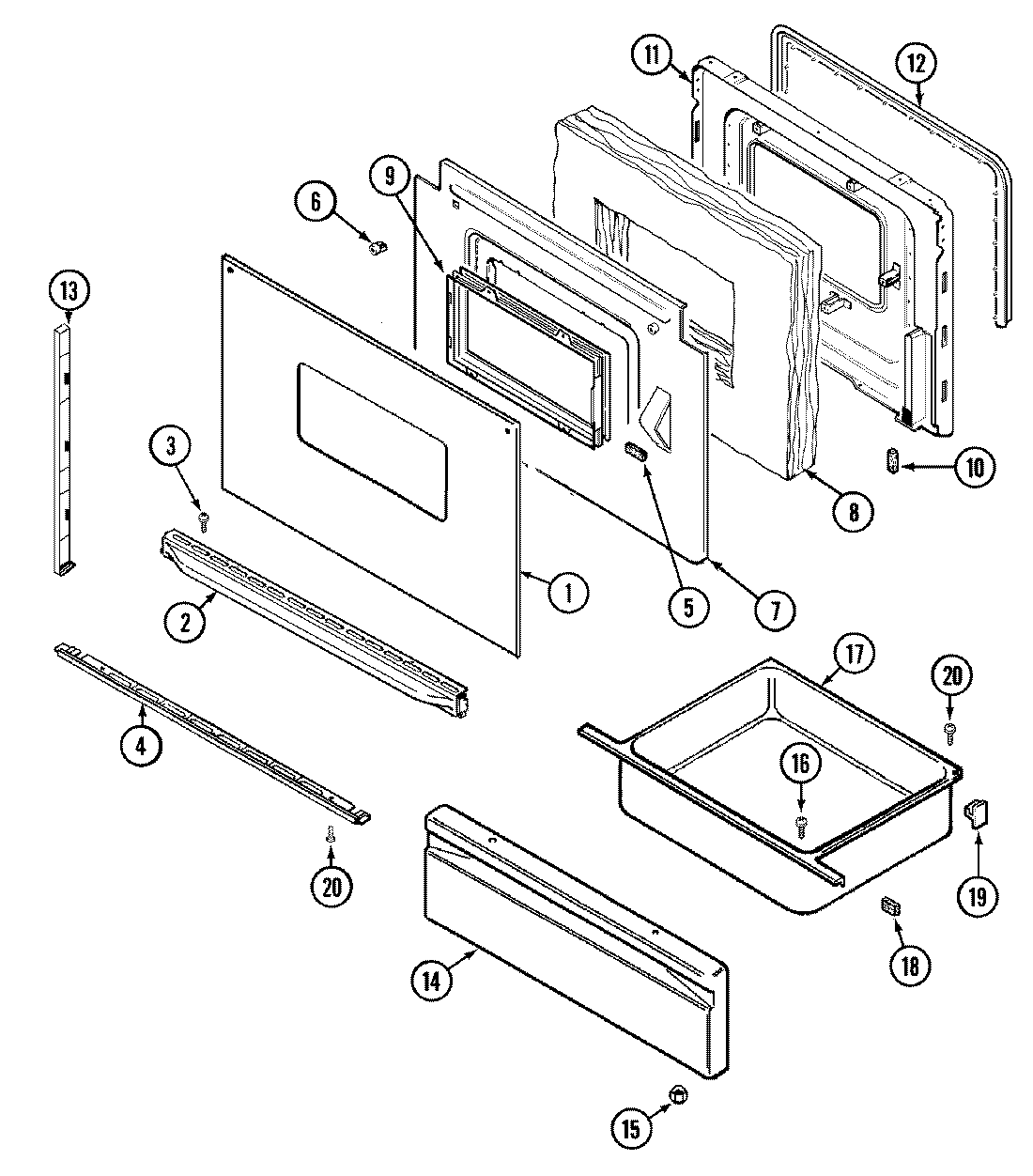

3521XRW 03 – DOOR/DRAWER (SERIES 01)

Products

PositionProduct
1MAY 7902P321-60
2MAY 7701P096-60
2MAY 7101P291-60
3WP98008545 Whirlpool Screw
4MAY 7744P078-60
5MAY 8010P085-60
6MAY 7103P045-60
7MAY 3601F236-47
7MAY 7101P290-60
8MAY 4804F011-60
9MAY 7907P016-60
10MAY 7208P011-60
11MAY 2402W193-19
11MAY 2402W213-19
12WP7212P043-60 Whirlpool Oven Door Seal Gasket
13MAY 7744P055-60
14MAY 2416F039-62
14WP4159193 Whirlpool Screw
14MAY 2416F039-65
15WPW10131078 Whirlpool Nut Assembly
16WP7101P072-60 Whirlpool Screw
17MAY 3405F015-80
18MAY 8010P086-60
19WP8004P026-60 Whirlpool Support
20SCREW
