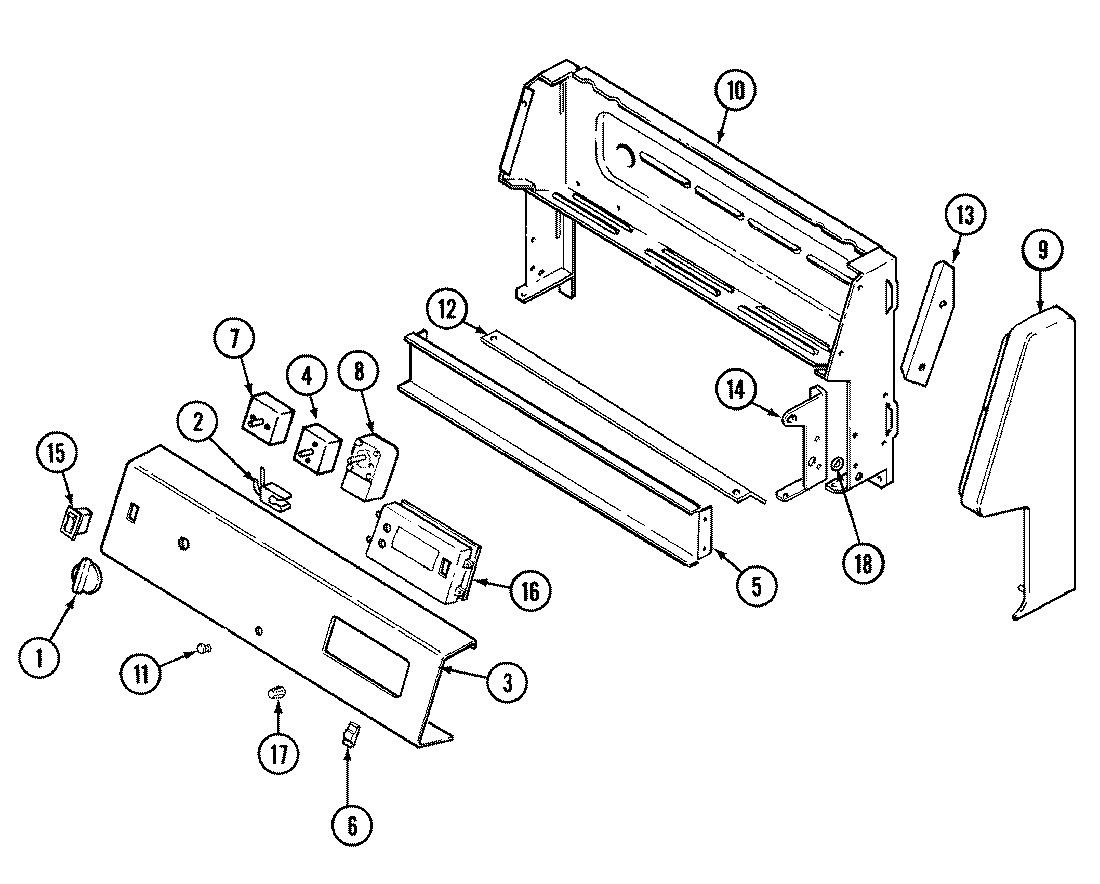

3522WUA-D 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7731P082-60
2	W10852510 Whirlpool Indicator Light
3	MAY 4876S048-59
3	SCREW
4	WP7403P255-60 Whirlpool Selector Switch
5	MAY 3802F087-51
6	MAY 7711P469-60
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	SCREW
8	WP7404P105-60 Whirlpool Thermostat
9	MAY 7726P052-60
9	MAY 7726P051-60
9	MAY 7101P317-60
10	MAY 4001F091-51
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	MAY 3807F450-45
13	MAY 3807F449-45
14	MAY 8114P348-60
14	SCREW (8BX3/8-NI)
14	MAY 3418D098-60
14	MAY 3418D097-60
15	7403P067-60 Whirlpool Light Switch
16	MAY 7101P293-60
16	MAY 7602P104-60
17	MAY 7711P468-60
18	WP3195558 Whirlpool Nut
19	MAY 74001013
19	MAY 5170D118-60
19	MAY 5125A315-60
20	MAY 8113P023-60
21	MAY 16000329
