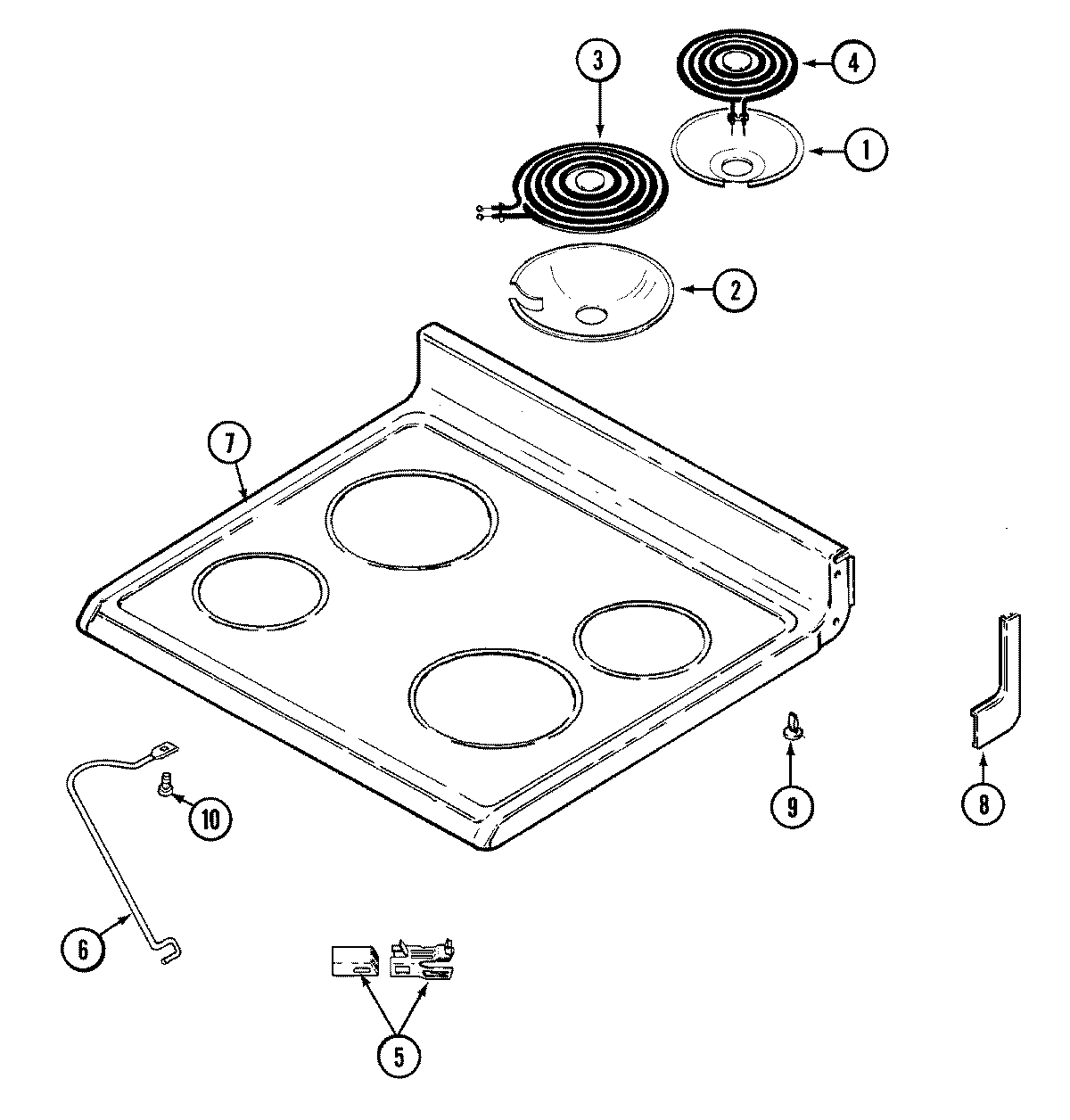

3522WUV-D 05 – TOP ASSEMBLY

Written by

Products

Position	Product
1	WPW10196406 Whirlpool 6" Chrome Drip Bowl
1	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2	DRIP BOWL 8" W/HOLE CHROME
3	MAY 7406P040-60
4	MAY 7406P038-60
5	SCREW
5	MAY 1430306K
6	MAY 74001170
7	MAY 2002W103-81
7	SCREW
8	WP3195558 Whirlpool Nut
8	MAY 7746P033-60
8	MAY 7746P032-60
9	MAY 74001663
10	MAY 7101P280-60
