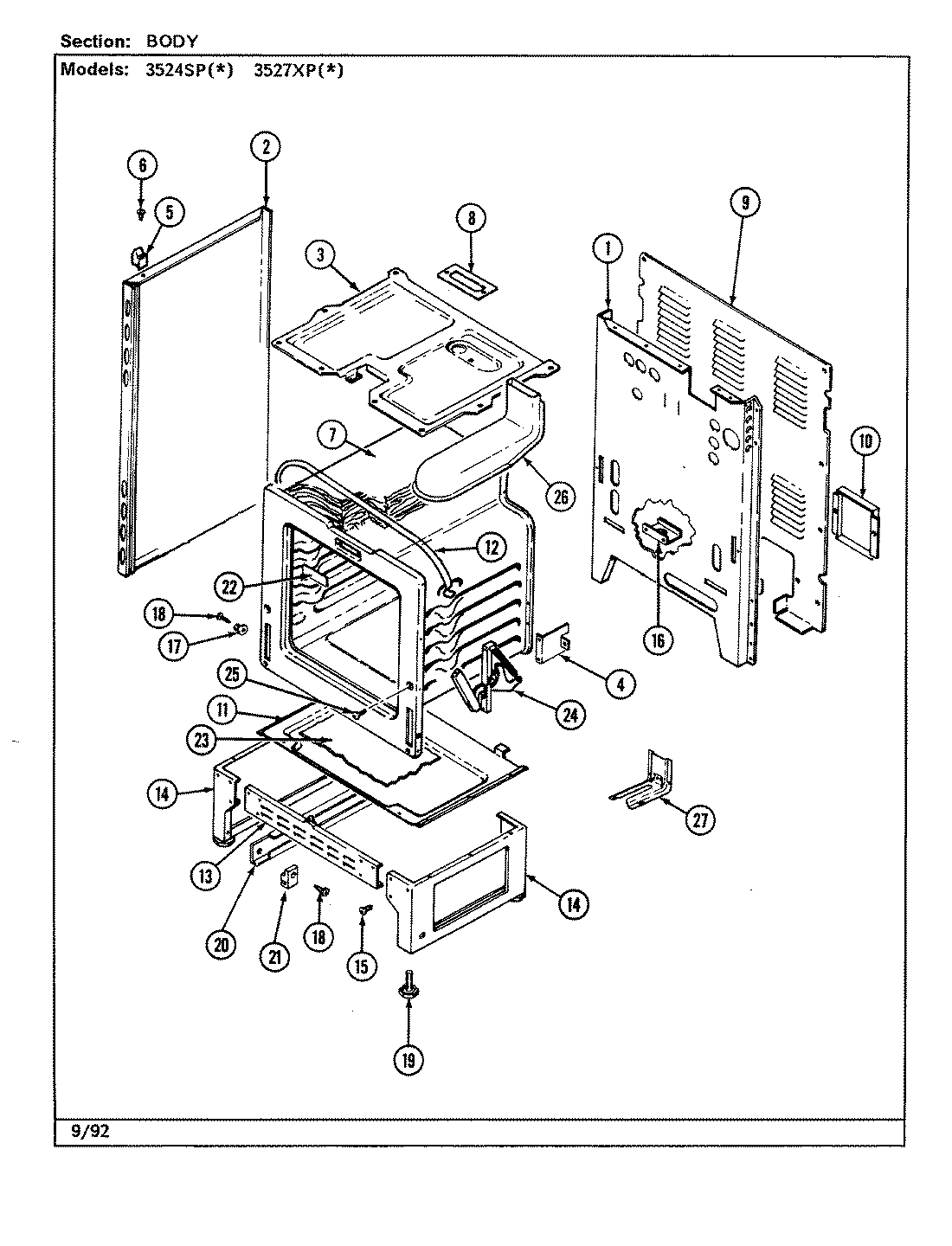

3524SPA 01 – BODY

Products

Position	Product
1	MAY 4002F186-80
2	MAY 2618F085-74
3	MAY 4011F208-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4804F018-60
7	MAY 4804F017-60
8	MAY 4005F400-51
9	MAY 4005F348-51
10	MAY 4005F376-51
11	MAY 3804F109-51
12	MAY 4820F001-59
13	MAY 4020F001-80
14	MAY 4020W007-80
14	MAY 4020F002-80
15	MAY 7101P290-60
16	MAY 3605F174-51
17	MAY 8004P024-60
18	MAY 7101P300-60
19	MAY 7101P306-60
20	MAY 3406F028-51
21	MAY 8004P025-60
22	MAY 8114P335-60
23	MAY 8312P058-60
24	MAY 7106P032-60
25	SCREW, HINGE
26	MAY 4006W107-45
26	MAY 7212P036-60
27	MAY 3801F218-51
27	WPW10245259 Whirlpool Terminal Block
