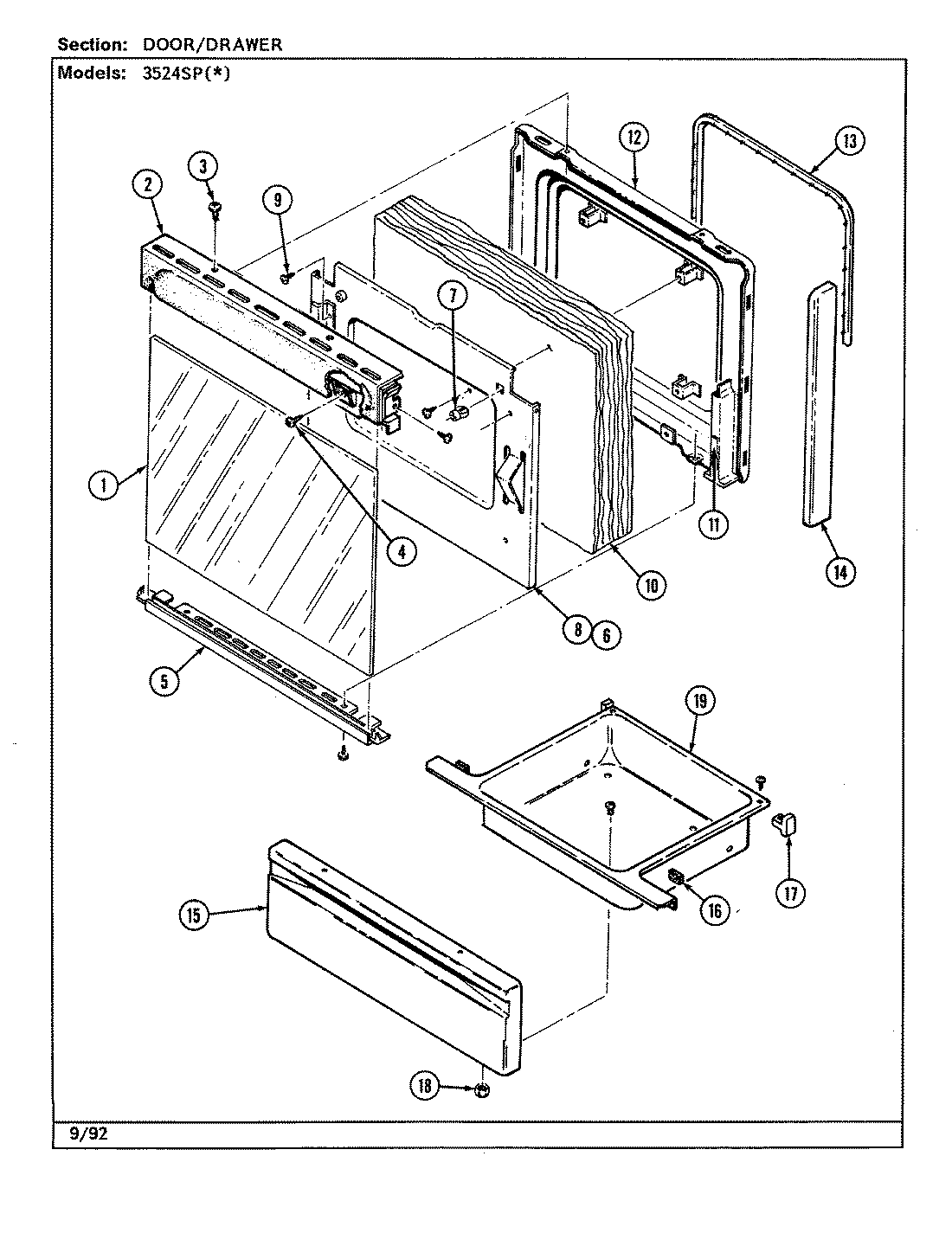

3524SPA 03 – DOOR/DRAWER (3524SP) – Aparts

3524SPA 03 – DOOR/DRAWER (3524SP)

Products

Position	Product
1	MAY 7902P325-60
2	MAY 7701P096-60
3	WP98008545 Whirlpool Screw
4	MAY 7101P291-60
5	MAY 7744P078-60
6	MAY 8010P085-60
7	MAY 8010P075-60
8	MAY 3601F218-45
9	MAY 7101P290-60
10	MAY 4804F011-60
11	MAY 7208P011-60
12	MAY 2402W201-19
13	MAY 7212P034-60
14	MAY 7744P055-60
15	MAY 2416F039-62
15	MAY 2416F039-64
16	MAY 8010P086-60
16	WP4159193 Whirlpool Screw
17	WP8004P026-60 Whirlpool Support
18	WPW10131078 Whirlpool Nut Assembly
19	MAY 3405F015-80
