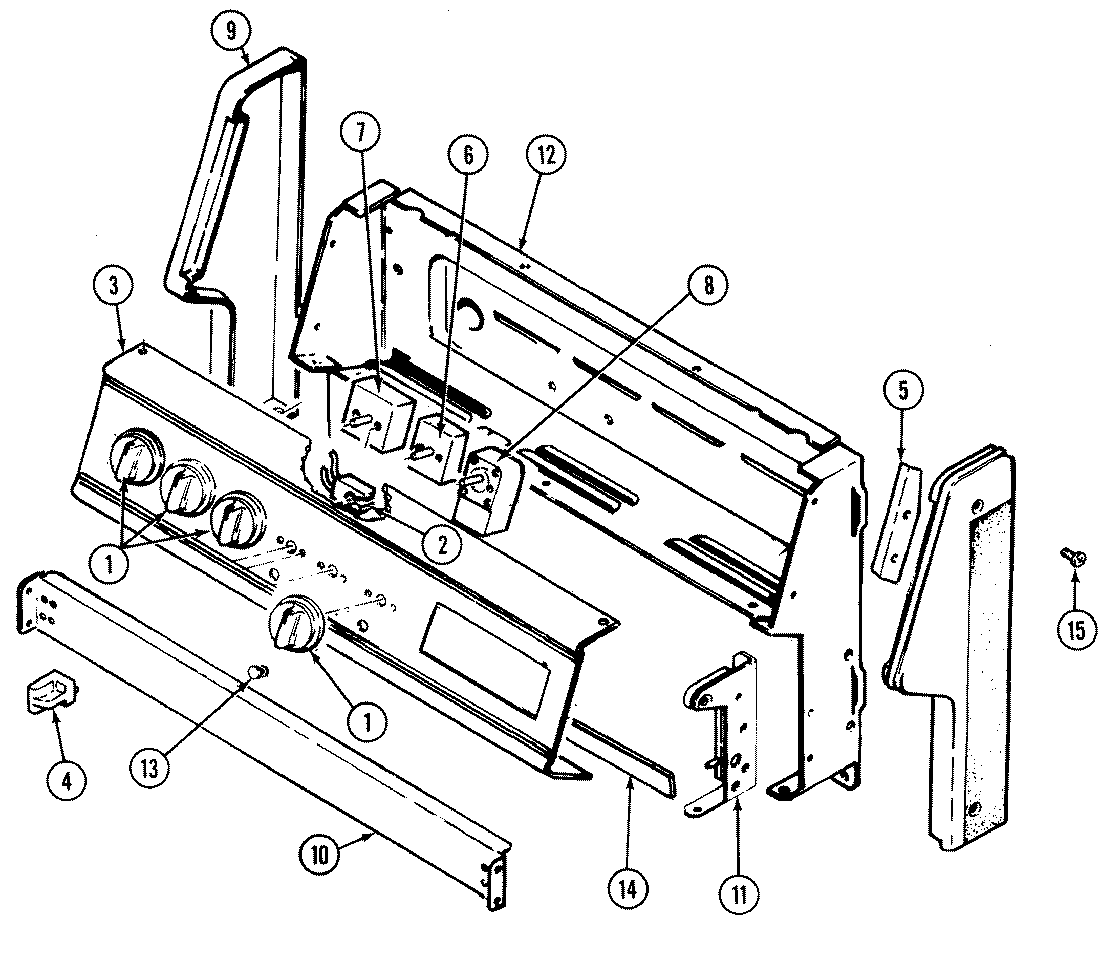

3524SRW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7731P082-60
2	W10852510 Whirlpool Indicator Light
2	MAY 7407P081-60
3	MAY 7118P013-60
3	MAY 4876S044-59
4	MAY 8010P083-60
4	MAY 7101P148-60
5	MAY 3807F435-45
5	MAY 3807F436-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P081-60
9	MAY 7726P052-60
9	MAY 7726P051-60
9	SCREW
10	MAY 3802F088-51
11	MAY 3807F423-51
11	MAY 3807F424-51
12	MAY 4001F089-51
13	W11690131 Whirlpool Light Lens
13	W11690159 Whirlpool Handle
14	MAY 3604F201-80
14	MAY 7118P015-60
15	MAY 5125A316-60
15	MAY 5170D119-60
15	MAY 7101P137-60
16	MAY 8112P052-60
17	MAY 8113P023-60
17	MAY 16000329
