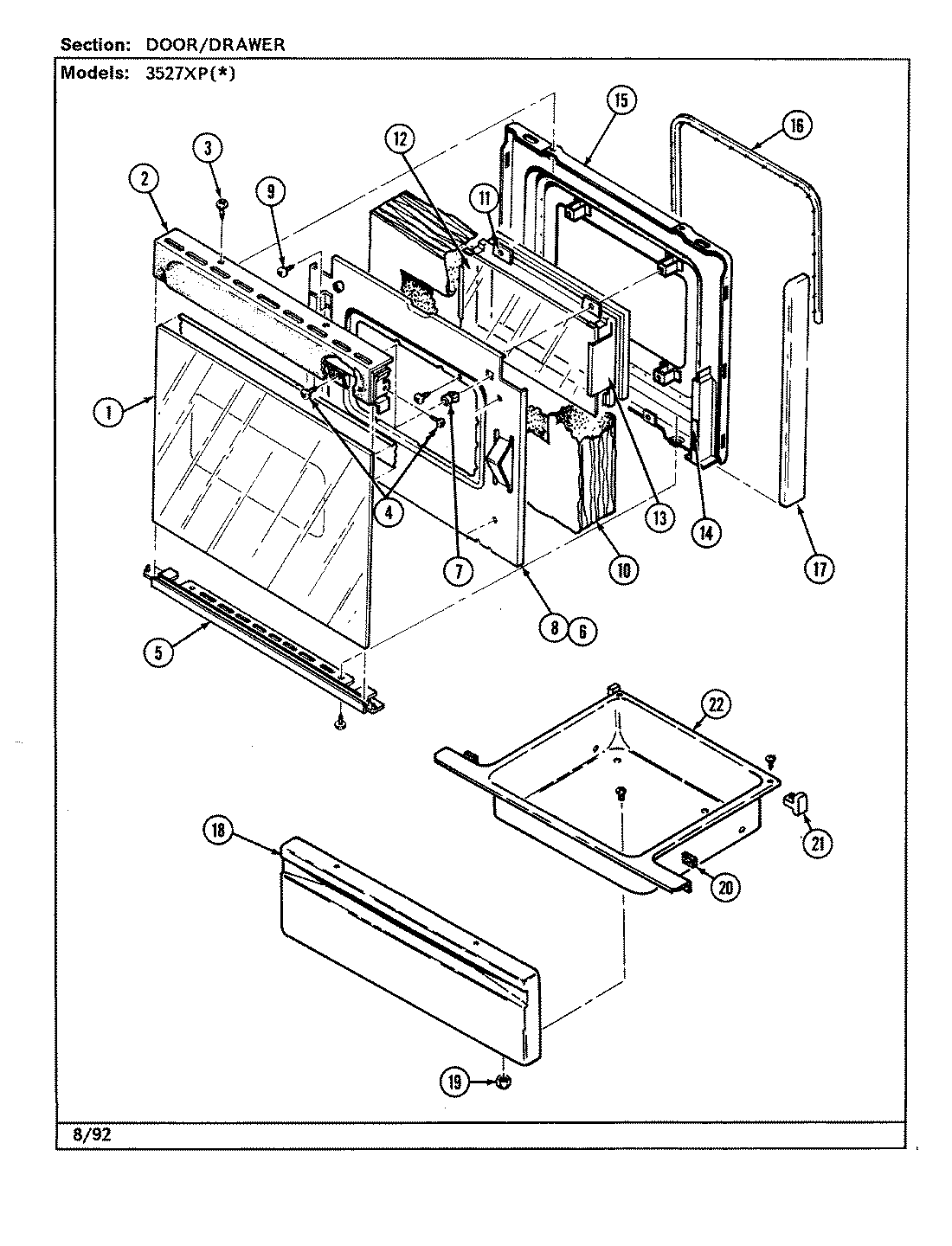

3527XPW 02 – DOOR/DRAWER (3527XPx) – Aparts

3527XPW 02 – DOOR/DRAWER (3527XPx)

Products

Position	Product
1	MAY 7902P321-60
2	MAY 7701P096-60
3	WP98008545 Whirlpool Screw
4	MAY 7101P291-60
5	MAY 7744P078-60
6	MAY 8010P085-60
7	MAY 8010P075-60
8	MAY 3601F219-45
9	MAY 7101P290-60
10	MAY 4804F011-60
11	MAY 3603F036-80
12	MAY 7902P319-60
13	MAY 7907P016-60
14	MAY 7208P011-60
15	MAY 2402W193-19
16	MAY 7212P034-60
17	MAY 7744P055-60
18	MAY 2416F039-62
18	MAY 2416F039-64
19	WP4159193 Whirlpool Screw
19	WPW10131078 Whirlpool Nut Assembly
20	MAY 8010P086-60
21	WP8004P026-60 Whirlpool Support
22	MAY 3405F015-80
