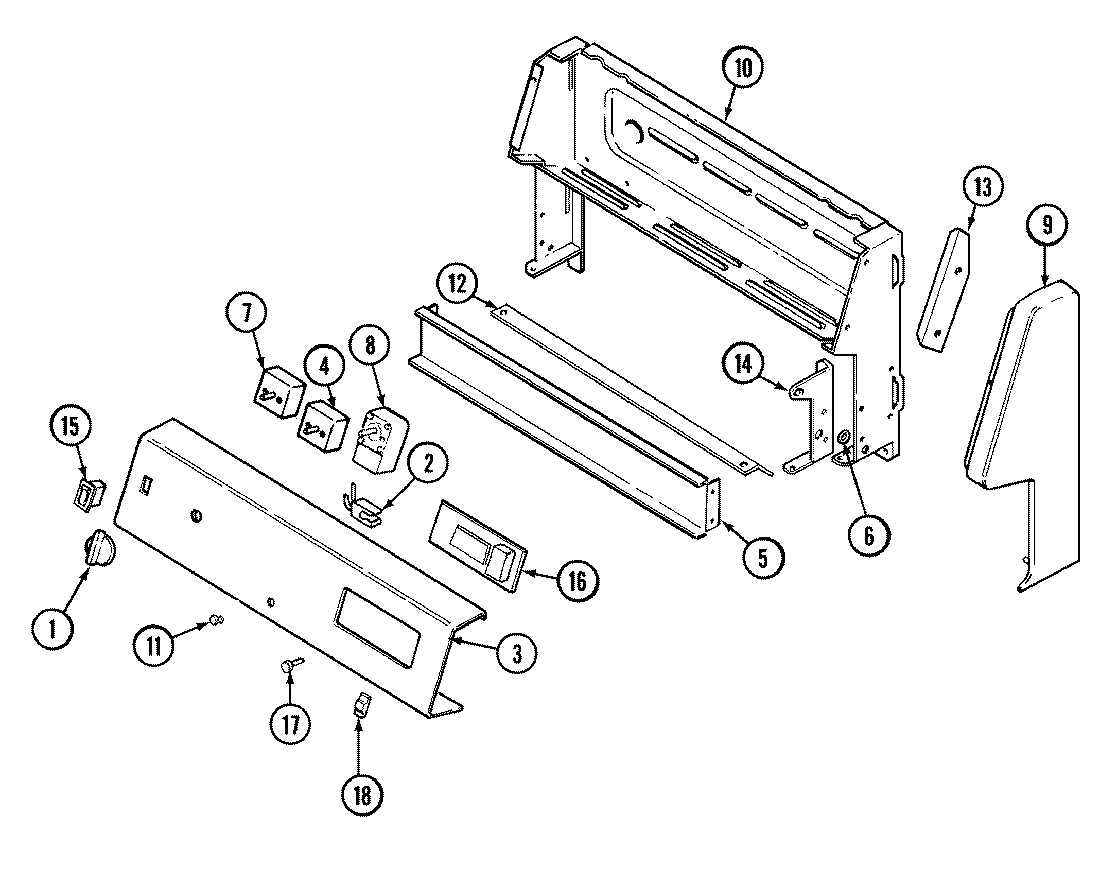

3527XRW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7731P082-60
2	W10852510 Whirlpool Indicator Light
2	MAY 7407P081-60
3	MAY 4876S048-59
3	MAY 7118P013-60
4	SCREW
4	WP7403P255-60 Whirlpool Selector Switch
5	MAY 3802F087-51
6	MAY 7103P129-60
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P081-60
9	MAY 7726P049-60
9	MAY 7726P045-60
9	SCREW
10	MAY 4001F091-51
11	W11690159 Whirlpool Handle
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	MAY 7118P015-60
13	MAY 3807F450-45
13	MAY 3807F449-45
14	MAY 3807F454-51
14	MAY 3807F453-51
15	7403P067-60 Whirlpool Light Switch
16	MAY 7602P104-60
16	MAY 7101P293-60
17	MAY 7711P468-60
18	MAY 5175D049-60
18	MAY 5170D118-60
18	MAY 7711P469-60
19	MAY 8113P021-60
20	MAY 16000329
