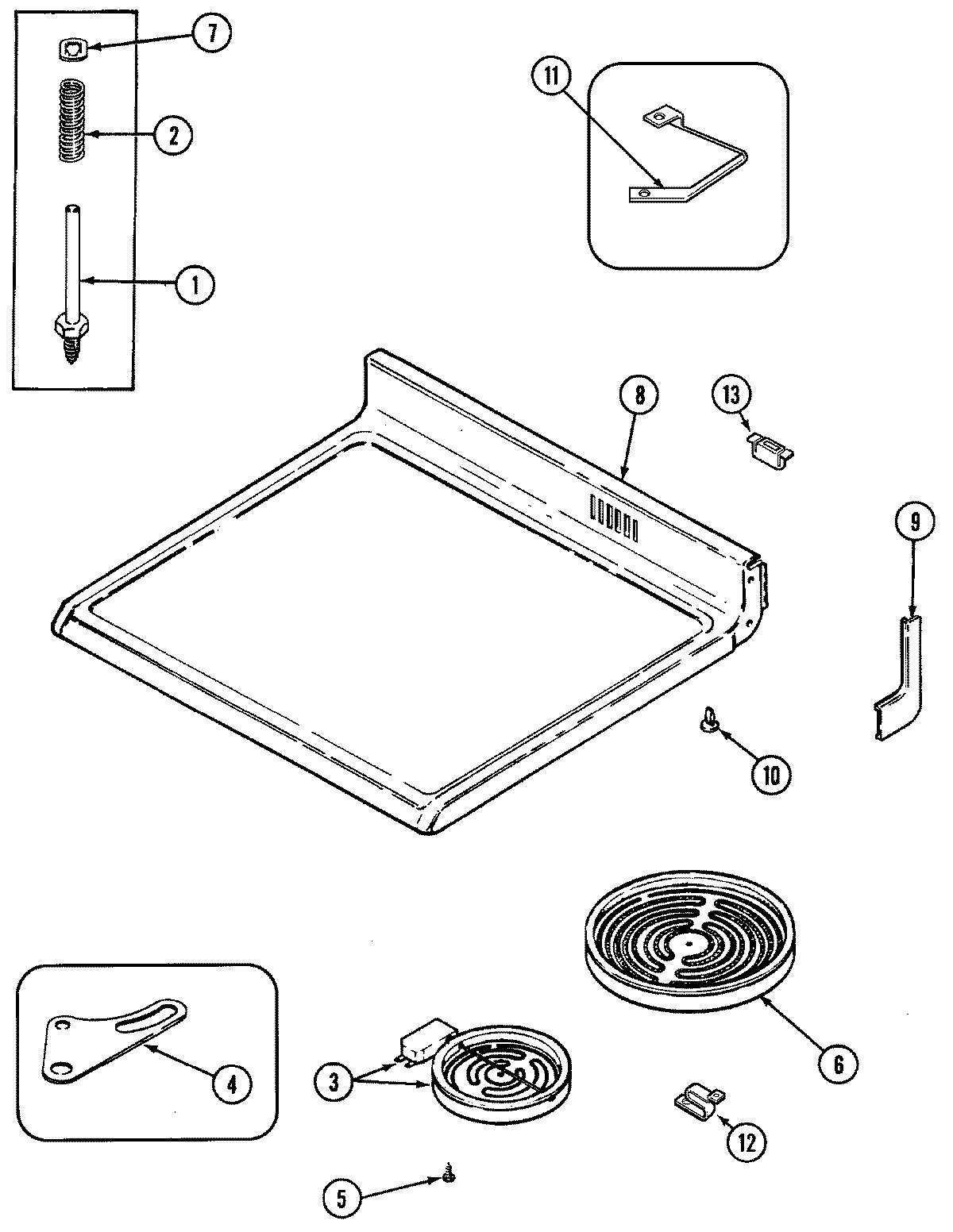

3527XUW 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7113P013-60
2	MAY 7803P066-60
3	MAY 7406P074-60
3	MAY 12500041
3	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
4	MAY 3819F013-45
5	MAY 7101P076-60
5	MAY 7118P013-60
6	MAY 74002652
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY 12500040
6	MAY 7406P073-60
7	MAY 7112P091-60
8	MAY 5706M107-81
8	MAY 74003090
9	MAY 7746P031-60
9	MAY 7746P030-60
10	MAY 8114P348-60
10	MAY 8016P013-60
11	MAY 74001437
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	8004P093-60 Whirlpool Support C
13	MAY 74003053
